Description

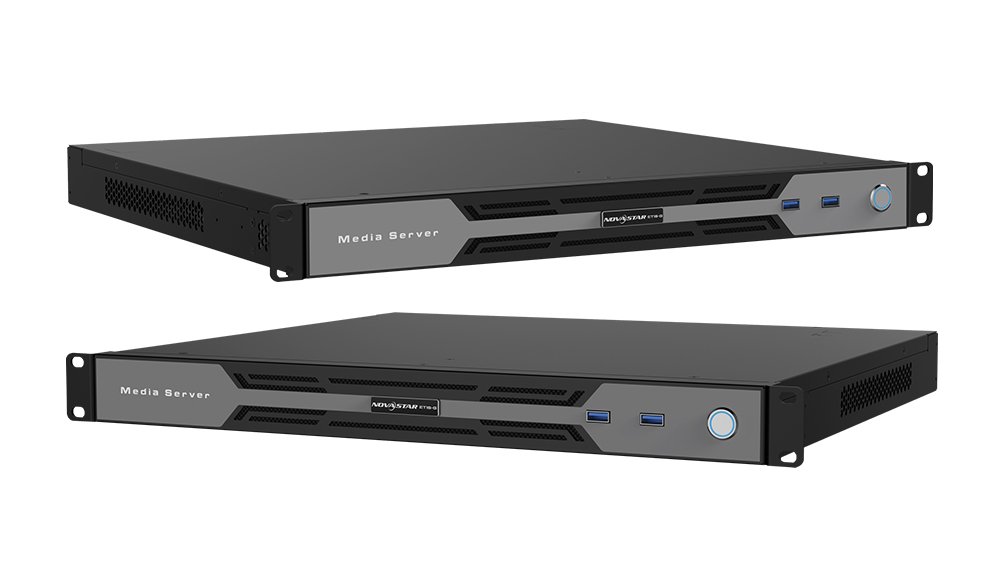

NovaStar ET1S-G LED Media Server for Professional LED Displays
Quick answer: The NovaStar ET1S-G and ET Series are professional media playback and control servers for LED and LCD display systems. They are designed for pixel-to-pixel output, smooth 4K content playback, flexible screen mapping and reliable show control. Available configurations include ET1S, ET1S-500, ET2S, ET4S(P2), ET4S(A4), ET16S(2A4) and ET16S(3A4), covering projects from conference rooms and showrooms to exhibitions, concerts and large creative LED installations.
Key Features
- High-resolution playback: Supports up to 4K×2K at 60 Hz per module. Higher-end configurations can handle multiple 4K outputs or 8K decoding.
- Hardware media decoding: Supports H.265, H.264 and other common formats for smooth, efficient playback.

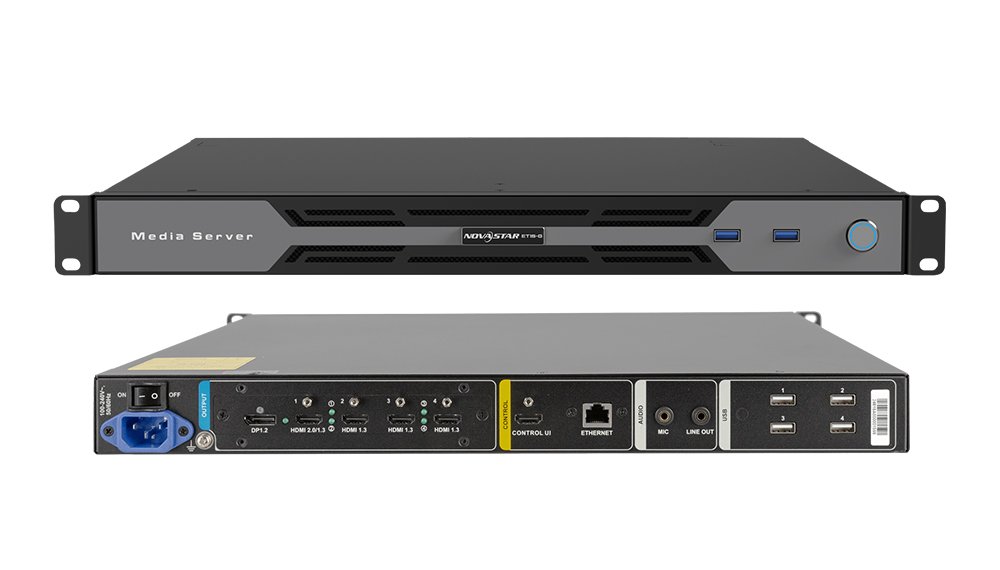

- Flexible video outputs: The ET Series provides DP 1.2, HDMI 1.3 and HDMI 2.0 output options; the exact connector configuration depends on the selected model.
- Large-canvas mapping: A single output can be divided into as many as 1,024 partitions for ultra-wide screens, mosaics and creative layouts.
- Multi-layer composition: Configurations range from 4 video layers plus 1 audio layer to as many as 36 video layers plus 1 audio layer, with expansion available on supported models.
- Broad source support: Play video, images, PowerPoint files and audio, or use NDI, streaming media, websites and text sources.
- Show-ready control: Adjust media size and priority, create crossfades, jump automatically between programs, manage slides and use one-click fade-to-black.
- Automated operation: Supports software launch at power-on, automatic playback, visual control, external central control and multi-machine synchronization on compatible configurations.
NovaStar ET Series Models
The product family includes ET1S-G, ET1S, ET1S-500, ET2S, ET4S(P2), ET4S(A4), ET16S(2A4) and ET16S(3A4). Because output interfaces, decoding capacity and the number of media layers vary by configuration, choose the model according to the complete LED canvas and playback workflow rather than by resolution alone.
How to Choose the Right ET Media Server
- Define the canvas: Confirm the total pixel width, height, refresh rate and required frame rate.
- Count the outputs: Match the LED processor or display system to the required DP and HDMI connections.
- Plan the composition: Calculate how many simultaneous video, image, text, NDI and web layers the program needs.
- Check synchronization: For large stages or multi-screen systems, confirm whether cascading and multi-machine synchronization are required.
- Allow for expansion: Select enough decoding, output and layer capacity for future content changes.
Model Comparison
Use the comparison chart below to review the available hardware configurations. For project-specific matching, share your LED screen resolution, output interface requirements and number of playback layers with our team.
Typical Applications
- Live stages, concerts and touring productions
- Exhibitions, museums and immersive installations
- Corporate showrooms and conference rooms
- Broadcast, event and rental LED display systems
- Large-format, ultra-wide and irregular creative screens
Media Playback and Control
The NovaStar ET1S-G workflow combines a media library with precise layout control. Operators can batch-import assets, resize and prioritize content, organize PowerPoint slides, configure crossfade transitions and move automatically between programs. Firmware update support and an intuitive graphical interface help speed up deployment and simplify daily operation.
For a complete LED control solution, browse our NovaStar products and LED video processors.
Frequently Asked Questions
What is the NovaStar ET1S-G?
The NovaStar ET1S-G is part of the ET Series of professional LED media servers. It combines high-resolution media playback, hardware decoding, screen mapping and show-control functions in one platform.
Does the NovaStar ET1S-G support 4K at 60 Hz?
The ET Series supports up to 4K×2K at 60 Hz per module. Multi-4K output and 8K decoding capabilities depend on the selected configuration.
Which media sources can the ET Series play?
Supported sources include video, images, PowerPoint presentations, audio, NDI, streaming media, websites and text. H.265 and H.264 hardware decoding is supported.
Can multiple NovaStar ET media servers be synchronized?
Multi-machine cascading and synchronization are available on supported models. Confirm the required configuration before ordering for a large stage or multi-screen project.
Which ET Series model should I choose?
Choose according to total canvas resolution, output connectors, concurrent media layers, decoding load and synchronization requirements. The comparison chart and specification document below provide the model-level details.
Download the Specification
Download the NovaStar ET1S Media Server Specifications (PDF)
