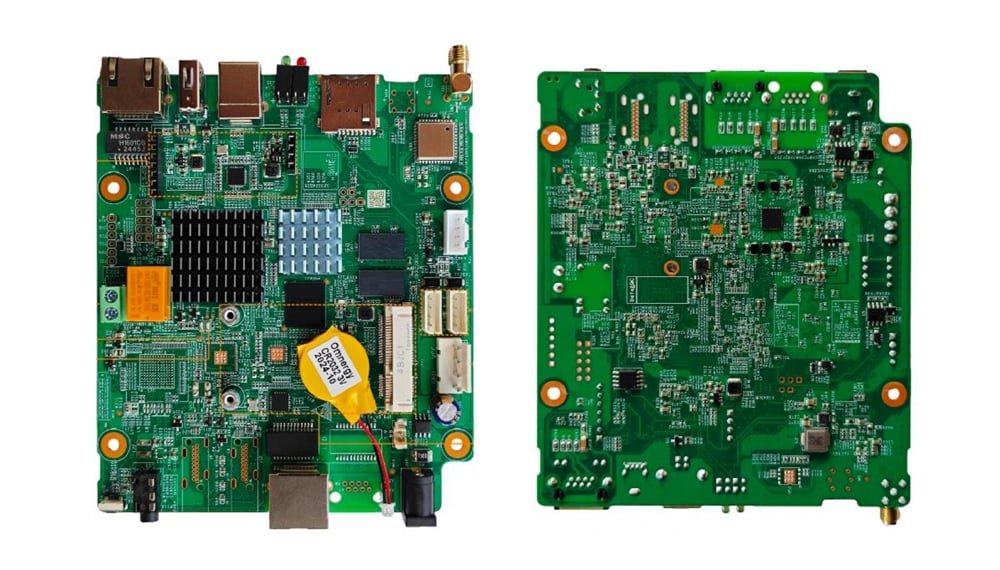

NovaStar JT50 Plus Overview
The NovaStar JT50 Plus is an asynchronous LED multimedia player for traffic and public information displays. It combines media playback and LED data output in one device, with a loading capacity of up to 650,000 pixels.
Designed for highways, urban roads and parking facilities, the JT50 Plus fits tollbooth information screens, traffic guidance signs and passenger information system displays. Terminal authentication and playback verification help protect published content.
Key Specifications
| Specification | NovaStar JT50 Plus |
|---|---|
| LED loading capacity | Up to 650,000 pixels |
| Maximum width / height | 2048 / 2048 pixels, subject to the 650,000-pixel capacity of the LED output port |
| Processor | Quad-core ARM Cortex-A53, 1.4 GHz |
| Memory | 2 GB RAM |
| Internal storage | 32 GB |
| Video decoding | 4K hardware decoding |
| LED output | 1 Gigabit Ethernet port |
| Audio | 1 stereo output; fixed 48 kHz sampling rate |
| USB | 1 USB 2.0 Type-A and 1 USB Type-B |
| Network control | 1 100 Mbps Ethernet port, WiFi and optional 4G |
| Sensor interfaces | 2 RS485 ports |
| Relay output | Up to DC 30 V, 3 A |
Playback and Control
- USB firmware upgrade: Update device firmware with a USB flash drive through the USB 2.0 Type-A port.
- Direct computer connection: Use USB Type-B for program publishing and display control.
- Local or public network publishing: Connect the 100 Mbps control port directly to a computer, LAN or public network.
- LED and audio output: Send LED data through the Gigabit Ethernet output and stereo audio at a fixed 48 kHz sampling rate.
- Sensor support: Connect brightness, temperature, or humidity sensors through the two RS485 interfaces.
WiFi, 4G and Time Synchronization
The JT50 Plus supports WiFi AP mode and WiFi AP + Station mode. A phone or computer can connect to the player’s built-in hotspot, while AP + Station mode lets the unit connect to WiFi and provide a hotspot at the same time.
- Network priority: wired Ethernet, then WiFi, then 4G
- NTP time synchronization
- GPS time synchronization with a specified 4G module
- RF time synchronization with a specified RF module
- Optional 4G connectivity; a 4G module is not included by default
- Support for mainstream transportation platform protocols
Recommended Applications
- Highway and urban traffic guidance LED displays
- Tollbooth information screens
- Parking guidance and message displays
- Passenger information system displays
- Other unattended LED signs that require scheduled or network-based content publishing
Frequently Asked Questions
What is the NovaStar JT50 Plus loading capacity?
The JT50 Plus loads up to 650,000 pixels through one Gigabit Ethernet LED output. The maximum width is 2048 pixels and the maximum height is 2048 pixels, subject to the total pixel limit.
Can the JT50 Plus play 4K video?
Yes. Its quad-core ARM Cortex-A53 processor supports 4K video hardware decoding. The player also includes 2 GB RAM and 32 GB internal storage.
Does the JT50 Plus include a 4G module?
No. The player supports a compatible 4G module, but the module is not included by default and must be purchased separately when required.
Can firmware be upgraded without a network connection?
Yes. Firmware can be upgraded from a USB flash drive through the USB 2.0 Type-A port.
What LED display projects is the JT50 Plus designed for?
It is designed for asynchronous traffic and information display projects, including traffic guidance signs, tollbooth screens, parking displays and passenger information systems.
Download the JT50 Plus Specification
Download the NovaStar JT50 Plus specification (Chinese PDF).
