Quick answer: The Colorlight AX08 AI media station is an Android 13 LED media player and controller with eight Gigabit Ethernet outputs. It supports a total load of up to 5.2 million pixels, a maximum output width of 7680 pixels, up to 8K video decoding, and both synchronous and asynchronous sending.

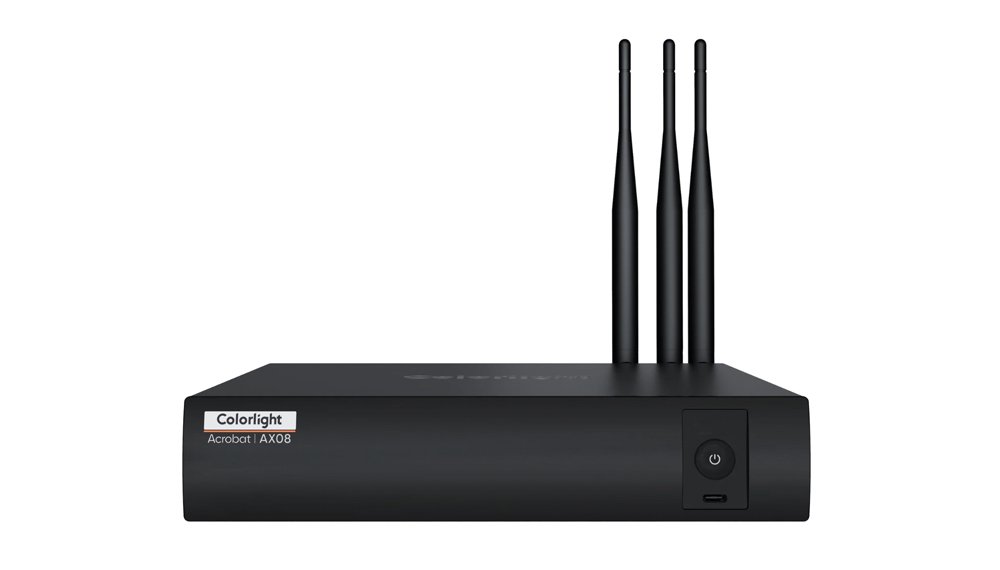

Colorlight AX08 AI media station overview
AX08 combines LED screen output, local media playback, live signal input, wireless casting, interaction, and cloud management in a single fanless unit. Its 8-core processor uses an 8nm process, and the Android 13 platform supports compatible third-party applications for signage, presentations, whiteboards, meetings, cameras, and microphones.
The unit can operate from a desktop or wall-mounted position without changing the LED display structure. This makes it suitable for fixed installations that need both scheduled content and live presentation sources.
LED output capacity and system performance
| Operating system | Android 13 |
|---|---|
| Processor | 8-core chip using an 8nm process |
| Video decoding | Up to 8K |
| Supported codecs | H.264, H.265, AV1, VP9, AVS2 |
| LED outputs | 8 Gigabit Ethernet ports |
| Maximum loading capacity | 5.2 million pixels |
| Maximum output width | 7680 pixels |
| Sending modes | Synchronous and asynchronous |
| User interface | Up to 4K UI display |
| Cooling | Fanless design |

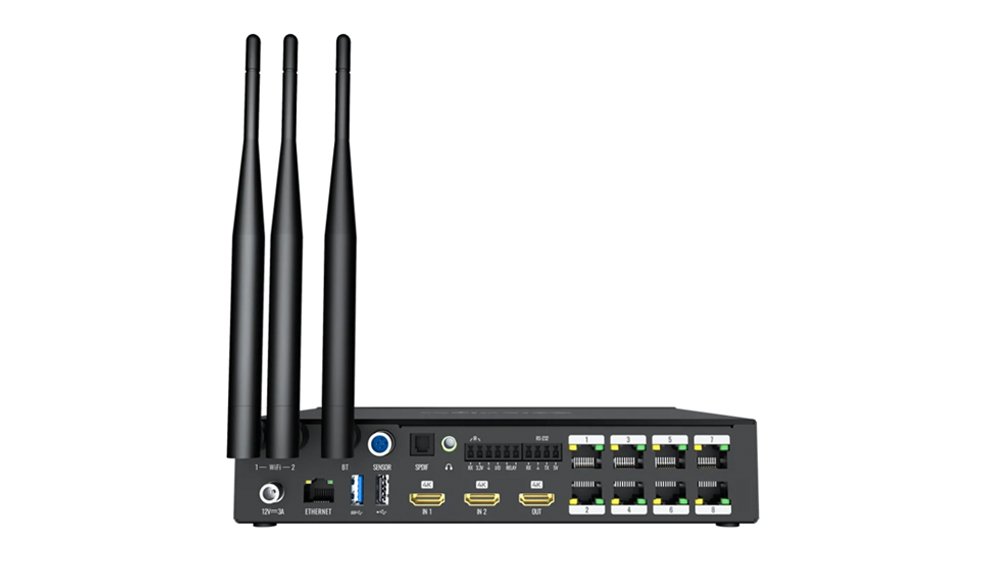

Video inputs, outputs, and connectivity
| Video inputs | 2 HDMI inputs |
|---|---|
| HDMI output | 1 HDMI 2.0 output |
| USB-C video output | 1 USB-C DP Alt Mode output |
| USB connections | USB 2.0, USB 3.0, and USB-C for storage and peripherals |
| Management network | Gigabit Ethernet |
| WiFi | WiFi 6, dual-band, AP and STA modes |
| Bluetooth | Bluetooth 5.2 for remotes, mice, keyboards, and speakers |
| Digital audio | SPDIF output for PCM, Dolby, and DTS signals |
| Analog audio | 3.5 mm audio jack |
| Sensors | Port for ambient temperature, humidity, and brightness monitoring |
8K decoding and multi-layer presentation
- Decodes up to 8K video using H.264, H.265, AV1, VP9, and AVS2.
- Supports multiple HDMI layers with picture-in-picture and picture-by-picture layouts.
- Allows annotation over external OPS and HDMI signals.
- Provides preset modes for presentations, remote meetings, and video playback.
- Supports photo-based screen mapping and Colorlight Infi-bit grayscale extension.
- Offers automatic LED brightness adjustment with an optional ambient light sensor.
Synchronous and asynchronous content workflows
In synchronous mode, AX08 can present live HDMI and interactive sources. In asynchronous mode, it can store and play scheduled media without a continuously connected source computer. The embedded file manager handles onboard and USB-drive files, while playlists can combine videos, images, text, time, weather, and HDMI signals.
USB plug-and-play or store-and-play workflows are supported. LAN and WiFi connections provide remote intelligent control and cloud networking management.
Interactive collaboration and control
- Multi-terminal wireless screen casting with reverse control.
- Compatibility with common infrared touch frames for electronic whiteboards.
- Meeting peripherals supported through compatible third-party meeting apps.
- Infrared and Bluetooth dual-mode remote control.
- File browsing and document editing with a remote, mouse, or keyboard.
- Control through WebUI, PlayerMaster, ColorlightCloudCMS, and the mobile LED Assistant.
- Central-control integration through serial-port or network connections.
Typical applications
- Multifunction classrooms and training centers
- Conference rooms and hybrid meeting spaces
- Exhibition halls and digital experience centers
- Lecture halls, auditoriums, and banquet halls
- Interactive LED signage requiring scheduled and live content
Browse more devices in our LED media player catalog or view other ColorLight products.
Deployment checklist
- Keep the mapped LED load within 5.2 million pixels and the output width within 7680 pixels.
- Confirm receiver-card compatibility and distribute the screen load correctly across the eight outputs.
- Verify HDMI 2.0, USB-C DP Alt Mode, touch-frame, camera, and audio requirements.
- Decide whether the project will use synchronous, asynchronous, cloud, or mixed operation.
- Check whether an optional ambient sensor or third-party meeting application is required.
For compatibility help, contact our product team with the LED resolution, receiving-card model, signal sources, and planned control method.
AX series comparison
Projects that require a different AX-series configuration can also review the Colorlight AX6K AI Media Station.
Download the AX08 specification
Download the Colorlight AX08 LED Display AI Media Station specification (PDF).
Frequently asked questions
How many pixels can the Colorlight AX08 control?
AX08 supports a total load of up to 5.2 million pixels, with a maximum output width of 7680 pixels.
How many LED output ports does AX08 have?
It provides eight Gigabit Ethernet output ports for connecting compatible LED receiving cards.
Does AX08 support 8K video?
Yes. The listed decoding capability is up to 8K, with H.264, H.265, AV1, VP9, and AVS2 support.
Can AX08 work in synchronous and asynchronous modes?
Yes. It supports live synchronous sources and stored or scheduled asynchronous content workflows.
Which operating system does AX08 use?
AX08 runs Android 13 and supports installation of compatible third-party Android applications.
Does AX08 support wireless casting and touch?
Yes. It supports multi-terminal wireless casting, reverse control, compatible infrared touch frames, annotation, and electronic whiteboard workflows.
Is the Colorlight AX08 AI media station fanless?
Yes. Its fanless design supports quiet operation and avoids routine fan maintenance.
