Description

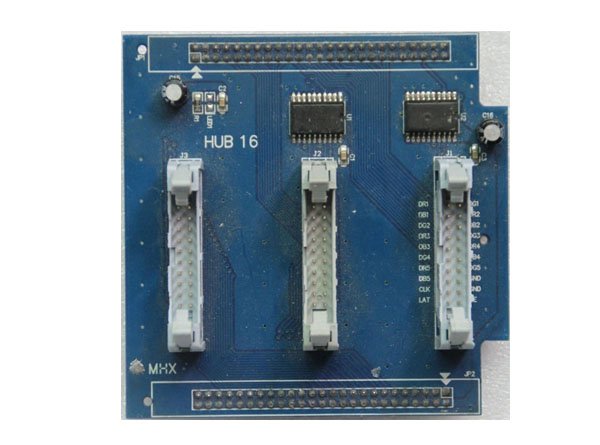

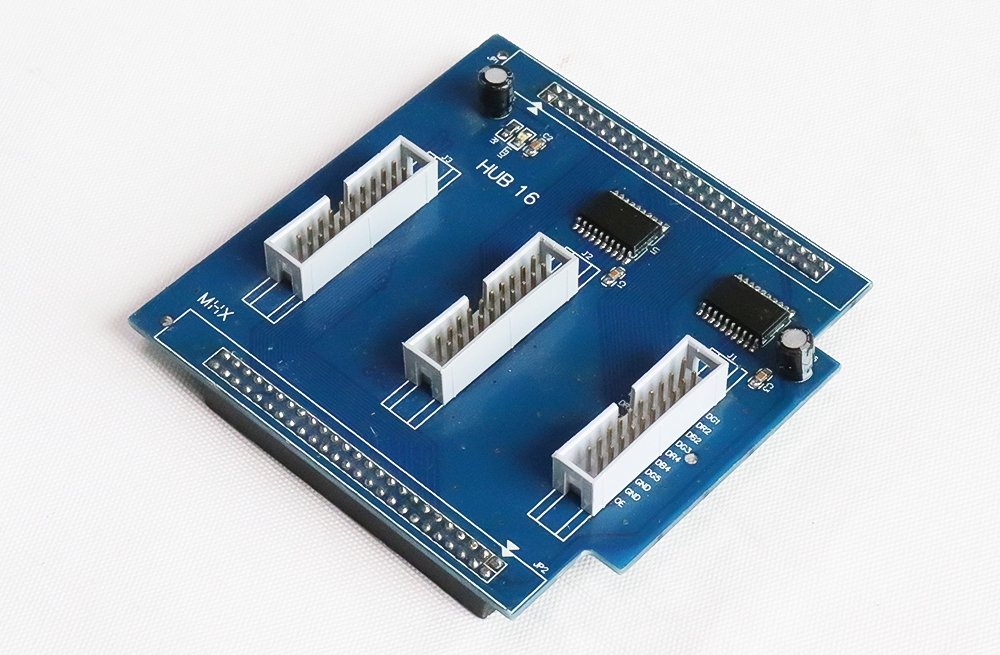

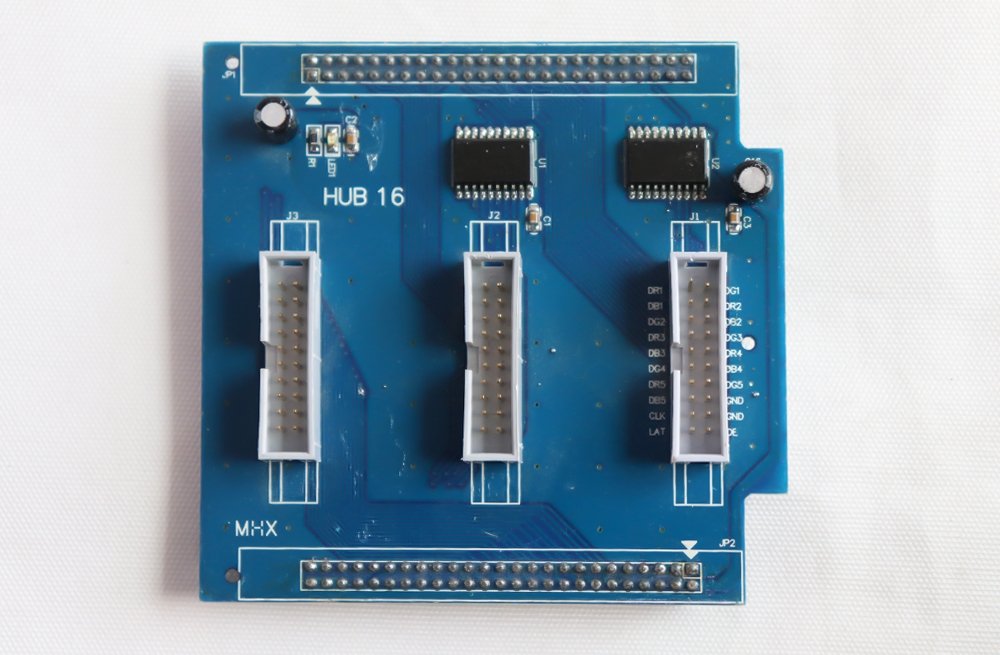

HUB16 LED HUB Card Interface Definition:
|
1 |
RD1 |
2 |
GD1 |
|
3 |
BD1 |
4 |
RD2 |
|
5 |
GD2 |
6 |
BD2 |
|
7 |
RD3 |
8 |
GD3 |
|
9 |
BD3 |
10 |
RD4 |
|
11 |
GD4 |
12 |
BD4 |
|
13 |
RD5 |
14 |
GD5 |
|
15 |
BD5 |
16 |
GND |
|
17 |
CLK |
18 |
GND |
|
19 |
LAT |
20 |
OE |
