Description

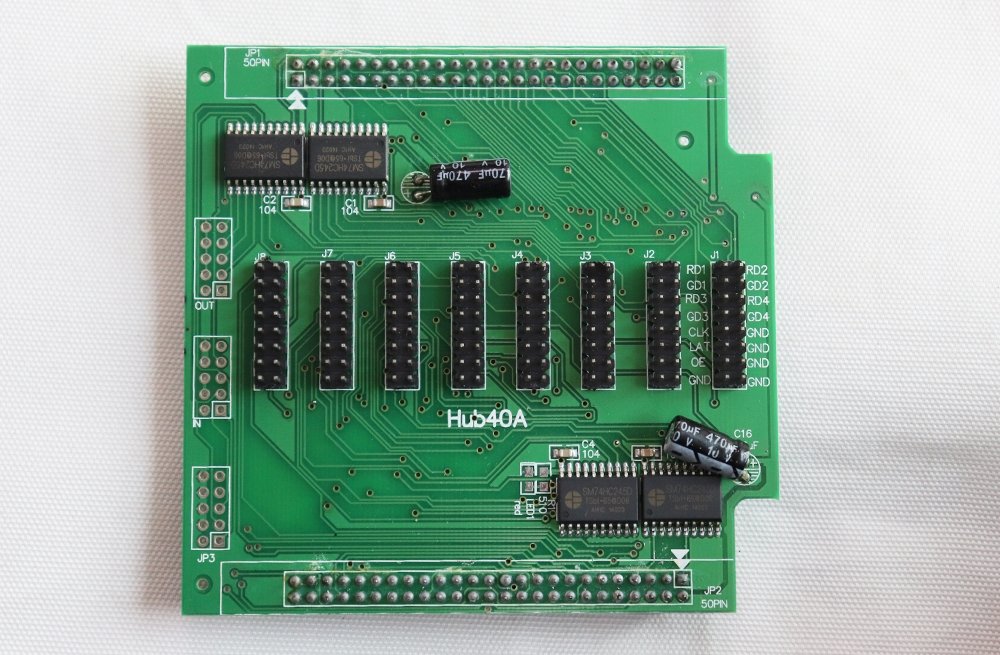

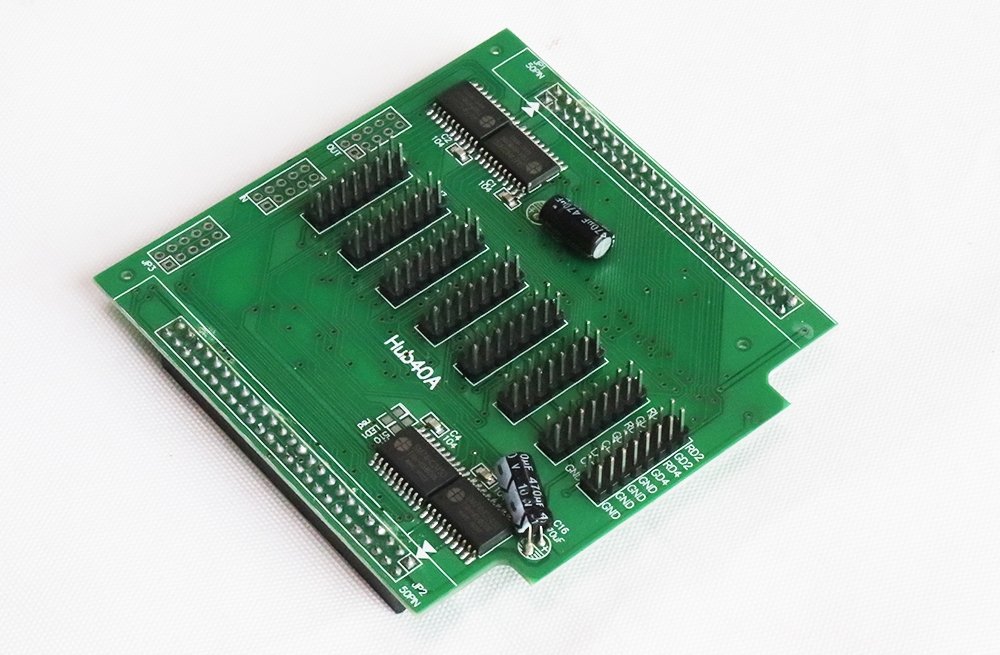

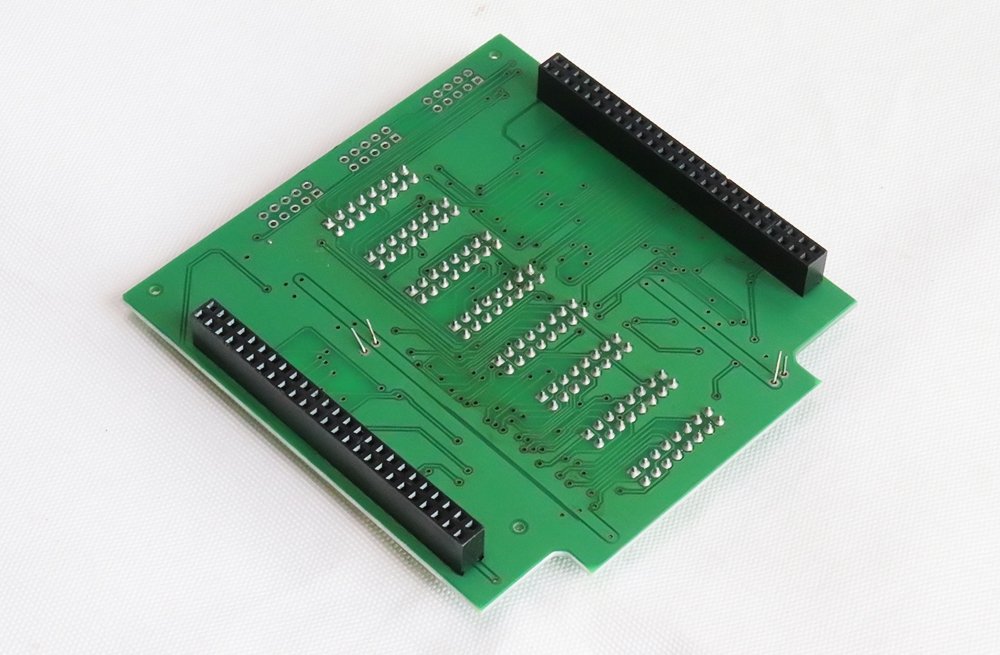

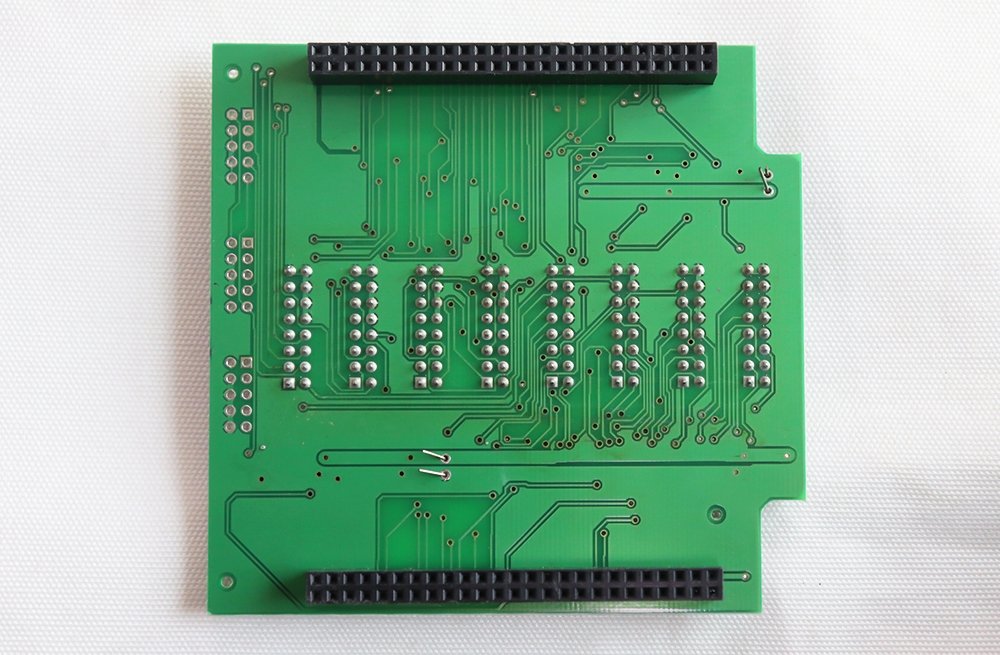

HUB40A LED Expansion HUB Card Interface Definition:
| 1 | RD1 | 2 | RD2 |
| 3 | GD1 | 4 | BD1 |
| 5 | RD3 | 6 | RD4 |
| 7 | GD2 | 8 | BD2 |
| 9 | CLK | 10 | GND |
| 11 | LAT | 12 | GND |
| 13 | OE | 14 | GND |
| 15 | GND | 16 | GND |
Remarks: Please make sure the interface definition of HUB card is the same as what you would like before you confirm the order. Any query, you can talk with us online or email us.
