Description

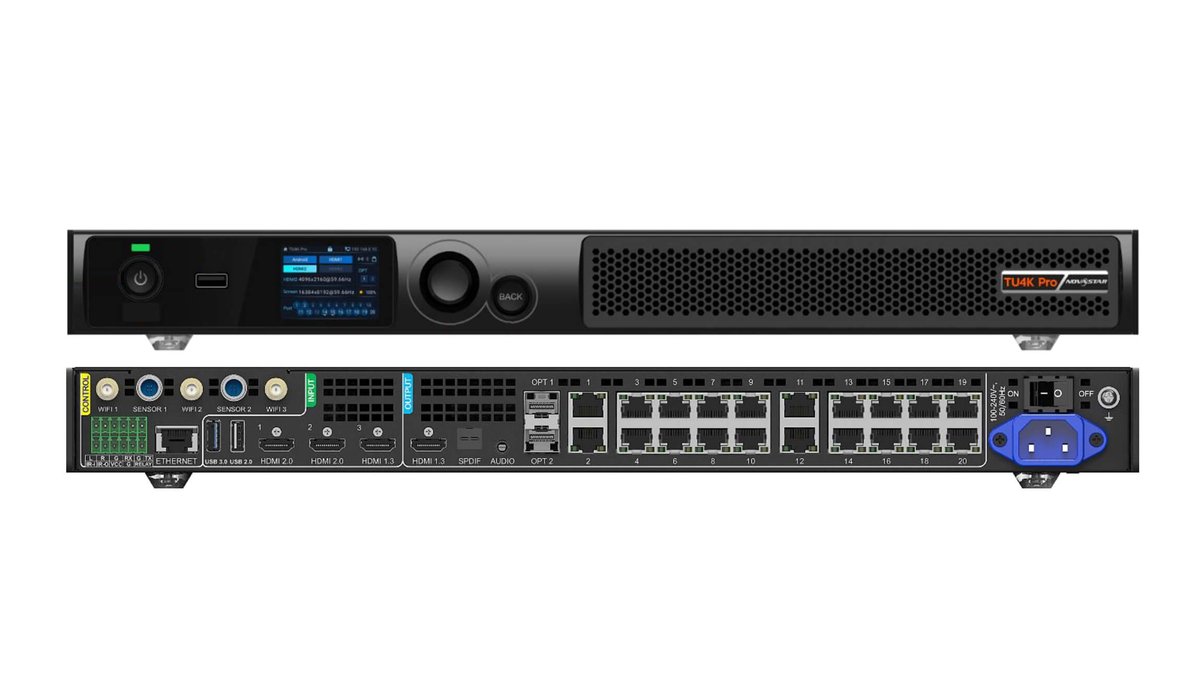

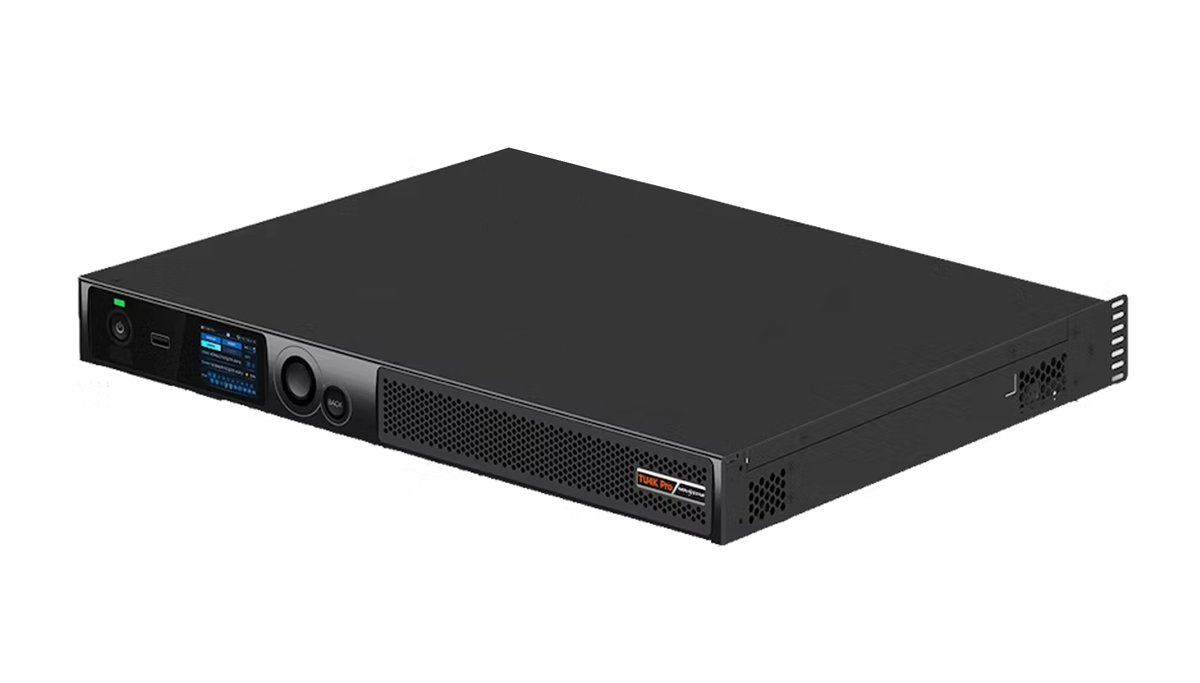

NovaStar TU4K Pro 4K LED Playback Controller
Quick answer: The NovaStar TU4K Pro is an all-in-one LED playback control processor that combines an Android media system, LED sending control and professional video processing in one unit. It can drive up to 13 million pixels, accepts 4K HDMI and 12G-SDI sources, and delivers LED data through 20 Gigabit Ethernet ports or two 10G optical outputs.
- Maximum LED load: 13 million pixels
- Maximum image dimensions: 16,384 pixels wide or 8,192 pixels high
- 4K inputs: 2 x HDMI 2.0 at up to 3840 x 2160 @ 60 Hz
- LED outputs: 20 x Gigabit Ethernet and 2 x 10G optical fiber
- Professional video: 12G-SDI input for uncompressed broadcast workflows
- Playback: H.264/H.265 decoding with up to four 4K streams or nine 1080p streams
- Control: Front-panel LCD, remote control, app management and wireless screen mirroring
The product selector above offers the NovaStar TU4K Pro alone or bundled with the PTB1304 screen projector. Current pricing is displayed for each available configuration.
What Is the NovaStar TU4K Pro?
The TU4K Pro is designed by Xi’an NovaStar Tech Co., Ltd. for professional LED display applications. Unlike a separate media player, sending card and video processor setup, it integrates these functions into a single device. This reduces the number of components required in conference rooms, showrooms, auditoriums and standalone LED display installations.
The built-in Android platform supports third-party applications and local media playback. Users can control the LED screen from the front-panel LCD or remote control, publish programs through an app, and mirror content wirelessly from Windows, macOS, iOS or Android devices.
Key Features and Benefits
13-Million-Pixel LED Display Capacity
The NovaStar TU4K Pro supports a total load of up to 13 million pixels. Its flexible image sizing supports canvases as wide as 16,384 pixels or as high as 8,192 pixels, making it suitable for ultra-wide presentation walls, high-resolution control rooms and other non-standard LED layouts.
4K HDMI and 12G-SDI Inputs
Two HDMI 2.0 inputs accept signals up to 3840 x 2160 @ 60 Hz, while one HDMI 1.3 input supports standard 1920 x 1080 @ 60 Hz sources. The 12G-SDI interface provides high-bandwidth, uncompressed video transport for broadcast, production and live-event environments.
20 Ethernet and Dual Optical Outputs

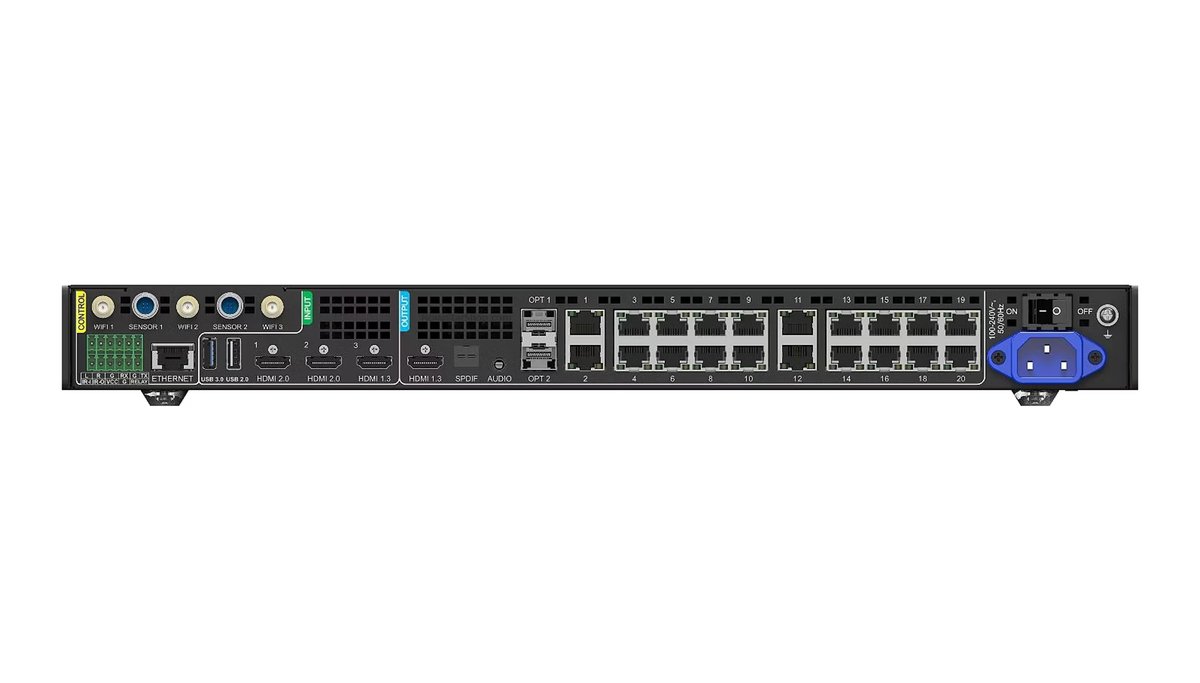

Twenty Gigabit Ethernet output ports connect directly to the LED receiving-card network. Two 10G optical outputs support long-distance transmission and installations where fiber connectivity is preferred.
Multi-Stream 4K Playback
Hardware decoding for H.264 and H.265 video enables smooth high-resolution playback. The TU4K Pro can decode up to four 4K video streams or nine 1080p streams simultaneously, supporting multi-window presentations and information-rich display layouts.
Wireless Presentation and Remote Management
Dual Wi-Fi modes allow hotspot and wireless network connections at the same time. Cross-platform screen mirroring helps presenters share content from Windows, macOS, iOS and Android devices without changing the LED display cabling. App-based tools can be used for program editing, publishing and device monitoring.
Image Processing for Different Content Types
NovaStar’s Dynamic Engine analyzes frames in real time to improve image presentation. Standard, Meeting, Vivid and Skin modes help match the picture to documents, remote meetings, video and people-focused content. Eye Comfort Mode is available for long viewing sessions.
NovaStar TU4K Pro Specifications
| Specification | NovaStar TU4K Pro |
|---|---|
| Product type | All-in-one 4K LED playback controller and video processor |
| Maximum load capacity | 13 million pixels |
| Maximum image width | 16,384 pixels |
| Maximum image height | 8,192 pixels |
| HDMI inputs | 1 x HDMI 1.3; 2 x HDMI 2.0 |
| Maximum HDMI resolution | 3840 x 2160 @ 60 Hz via HDMI 2.0 |
| SDI | 12G-SDI interface |
| LED outputs | 20 x RJ45 Gigabit Ethernet ports |
| Optical outputs | 2 x 10G optical fiber outputs |
| Video codecs | H.264 and H.265 |
| Simultaneous decoding | Up to 4 x 4K streams or 9 x 1080p streams |
| Wireless mirroring | Windows, macOS, iOS and Android |
| Control methods | Front-panel LCD, remote control and app-based management |
| Display modes | Standard, Meeting, Vivid and Skin |
| Installation | Wall-mounted, surface-mounted or installed in a cabinet |
Where Is the TU4K Pro Best Used?
- Conference and meeting rooms: Wireless screen sharing, document presentation and remote-meeting display.
- Corporate showrooms: Scheduled 4K playback and multi-window branded content.
- Auditoriums and lecture halls: Centralized processing and control for large LED walls.
- Broadcast and live production: 12G-SDI input and fiber-based signal transport.
- Standalone LED displays: Integrated Android playback reduces dependence on an external computer.
- Ultra-wide or tall LED canvases: Flexible output dimensions suit custom LED screen layouts.
Choosing the Right Configuration
Choose the standard NovaStar TU4K Pro when the installation already includes the required display and projection accessories. Select the TU4K Pro with PTB1304 screen projector when that bundled accessory is required for the project. Before ordering, confirm the total pixel count, canvas width and height, input signal type, cable distance and receiving-card network design.
Frequently Asked Questions
How many pixels can the NovaStar TU4K Pro control?
It can control up to 13 million LED pixels in total. The supported canvas can be as wide as 16,384 pixels or as high as 8,192 pixels, subject to the total load limit.
Does the TU4K Pro support 4K input and playback?
Yes. Its two HDMI 2.0 inputs support up to 3840 x 2160 @ 60 Hz, and it decodes H.264/H.265 media with up to four simultaneous 4K streams.
What outputs connect the TU4K Pro to an LED screen?
The controller provides 20 Gigabit Ethernet outputs for LED receiving cards and two 10G optical outputs for long-distance fiber connections.
Can phones and computers mirror content wirelessly?
Yes. Wireless screen mirroring is supported for Windows, macOS, iOS and Android devices.
What is the NovaStar TU4K Pro price?
The current price range is shown at the top of this page. The final price depends on whether you select the TU4K Pro by itself or the version bundled with the PTB1304 screen projector.
Where can I download the NovaStar TU4K Pro manual or specification?
Download the product specification PDF below for detailed interface, feature and installation information.
Download the NovaStar TU4K Pro Specification
Download the NovaStar TU4K Pro LED Playback Control Processor specification PDF
