Description
NovaStar NovaPro HD is an all-in-one LED video processor and LED display controller that combines front-end video processing, source switching, scaling and display control in one unit. It is designed for live events, broadcast production, rental staging and fixed LED video walls that need professional video inputs, synchronized playback and long-distance signal transmission.
For buyers comparing NovaStar controllers from China, the NovaPro HD supports input signals up to 1080p@60Hz, picture-in-picture, GenLock, DMX512, custom EDID and optical fiber output. The key specifications, supported interfaces, video introduction and official PDF downloads are organized below.

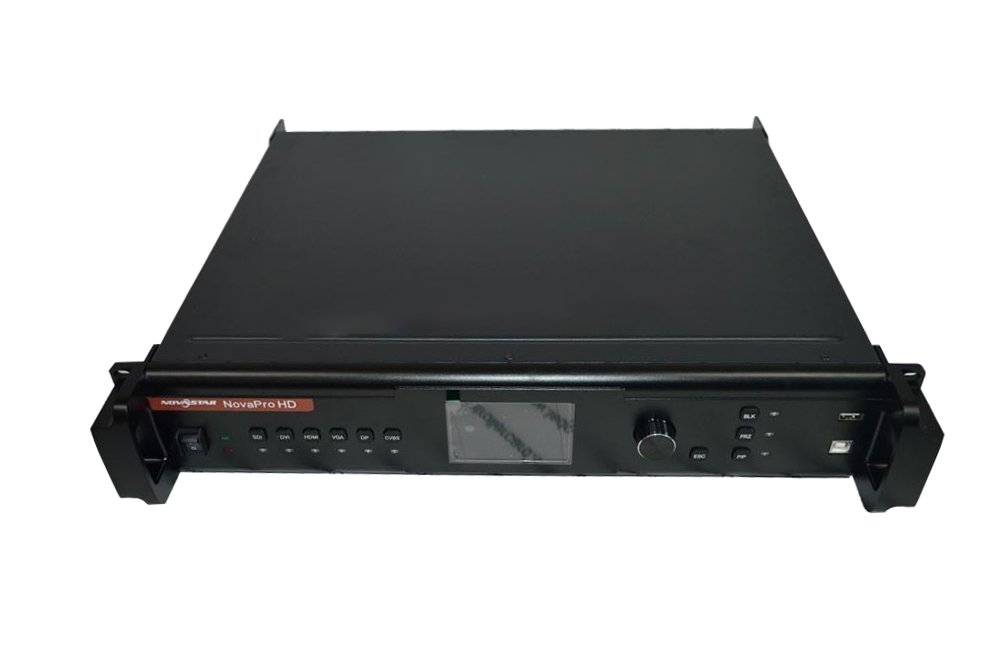

NovaStar NovaPro HD at a Glance
| Product type | All-in-one LED video processor and display controller |
|---|---|
| Video inputs | HDMI, DVI, 3G-SDI, DisplayPort, VGA and CVBS |
| Maximum input resolution | Up to 1080p@60Hz |
| Highest pixel clock | 165MHz |
| Output bandwidth | Up to 4Gbit/s |
| Video processing | Scaling, picture-in-picture, source transition effects and motion-adaptive deinterlacing |
| Synchronization and control | GenLock, DMX512, front-panel control and browser-based configuration |
| Power input | 100-250VAC, 50/60Hz, 0.65A |
| Power consumption | 30W |
| Operating temperature | -20 to 60°C |
| Weight | 6kg |
Key Features
- Integrated video processing and LED control: combines front-end processing and display control, reducing the need for an external scaler in standard applications.
- Flexible source support: accepts CVBS, VGA, 3G-SDI, DVI, HDMI and DisplayPort signals with input resolutions up to
- Scaling and picture-in-picture: scales sources up or down to match the LED display resolution and supports two-source PIP layouts.
- Per-input image adjustment: configure brightness, contrast, hue, saturation and RGB gain for each source.
- Professional synchronization: GenLock and DMX512 interfaces support coordinated playback and show control.
- Long-distance transmission: four optical fiber interfaces support reliable signal delivery across larger venues and installations.
- Browser-based setup: configure the system from Windows, macOS or Linux computers, tablets and smartphones, with real-time previews for source and setup confirmation.
- Custom display formats: user-defined EDID and custom output resolutions help match wide, tall or non-standard LED canvases.

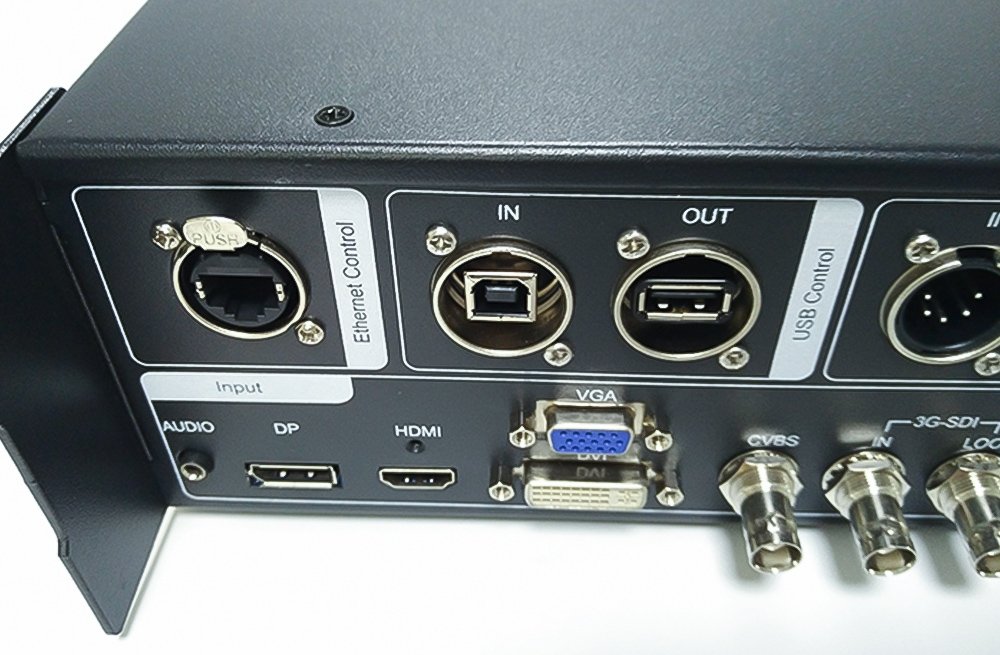

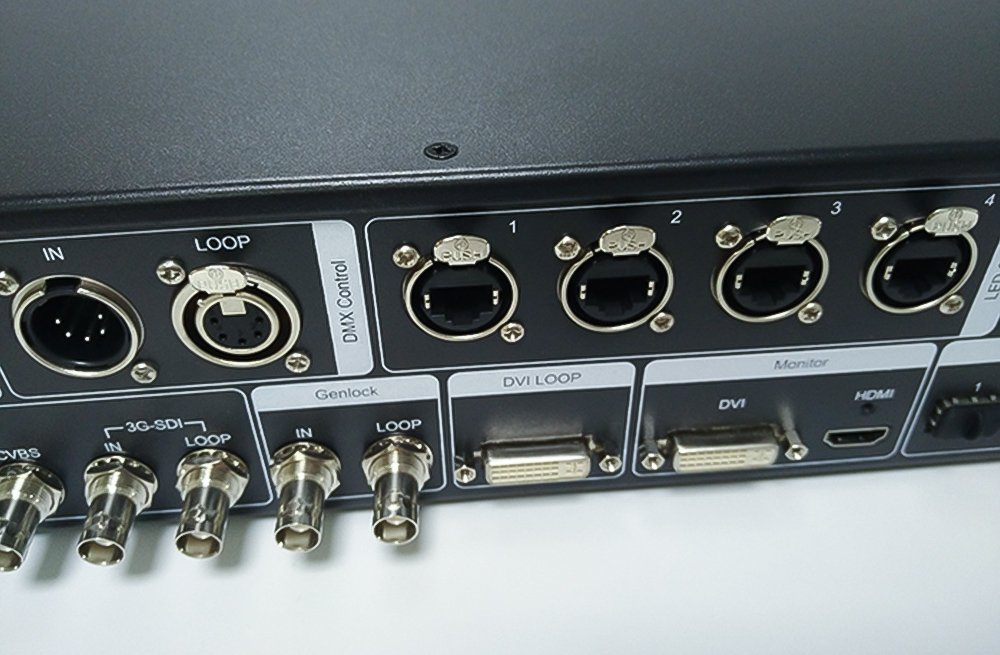

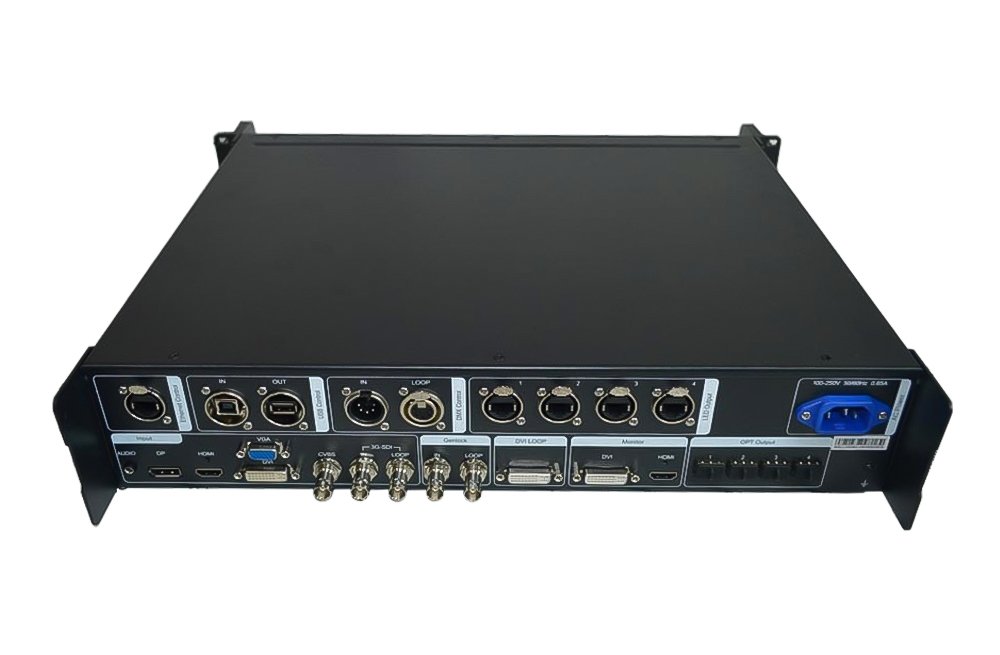

Video Inputs and Outputs
| Interface group | Available connections and capabilities |
|---|---|
| Video inputs | HDMI, DVI, 3G-SDI, DisplayPort, VGA and CVBS |

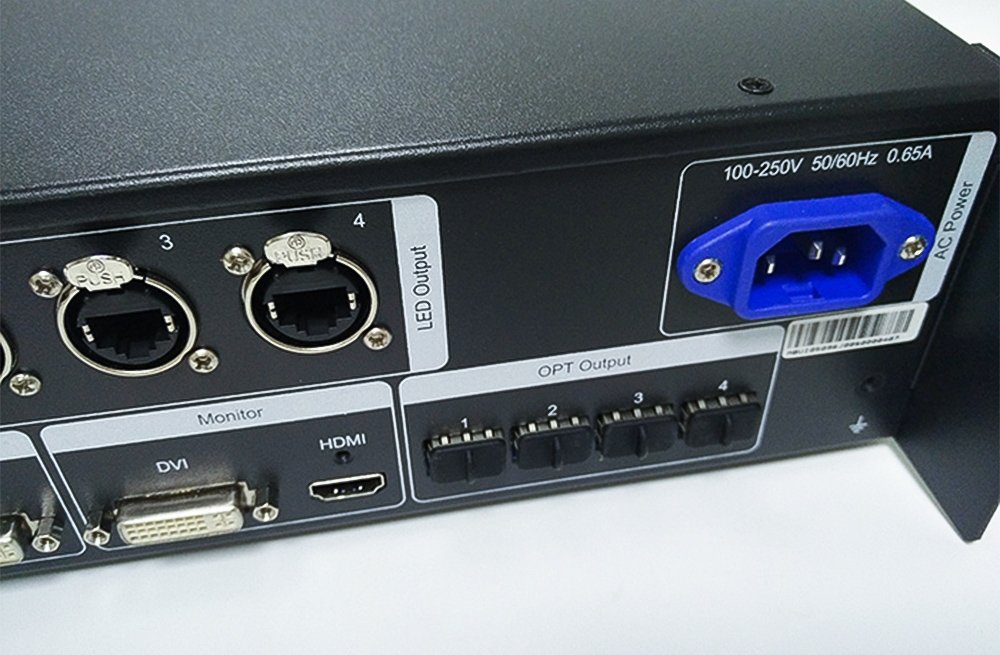

| LED data outputs | Four Ethernet outputs and four optical fiber interfaces |
| Monitoring | One DVI output and one HDMI monitoring interface |
| Loop outputs | DVI loop output with HDCP support and SDI loop output supporting 480i, 576i, 720p and 1080i/p (3G-SDI) |
Supported DVI Output Formats
Standard formats include 1280×1024/60Hz, 1440×900/60Hz, 1680×1050/60Hz, 1600×1200/60Hz, 1920×1080/60Hz or 50Hz, 2560×816/60Hz, 2048×640/60Hz, 1920×1200/60Hz, 2304×1152/60Hz, 2048×1152/60Hz, 1024×1280/60Hz and 1536×1536/60Hz.
User-defined output resolutions are supported with bandwidth optimization. The maximum horizontal resolution is 3840 pixels and the maximum vertical resolution is 1920 pixels.
Where Is NovaPro HD Used?
- Live event and rental LED screens that require fast source switching and PIP
- Broadcast studios and production environments using SDI, GenLock or DMX512
- Fixed LED video walls with custom or non-standard canvas resolutions
- Large venues that benefit from optical fiber transmission
- Control rooms that need browser-based remote setup and real-time source preview
NovaPro HD Hardware Introduction Video
Watch the NovaPro HD all-in-one LED display controller interface introduction.
Official Downloads
- NovaStar NovaPro HD Specification V1.4.5 (PDF)
- NovaStar NovaPro HD User Manual V1.4.4 (PDF)
Frequently Asked Questions
What is the NovaStar NovaPro HD?
The NovaPro HD is an all-in-one LED video processor and display controller. It combines video scaling, source switching, image adjustment, synchronization and LED data output in a single device.
Which video inputs does NovaPro HD support?
It supports HDMI, DVI, 3G-SDI, DisplayPort, VGA and CVBS inputs, with input resolutions up to
Does NovaPro HD support picture-in-picture and GenLock?
Yes. It supports two-source picture-in-picture, source transition effects and GenLock synchronization. A DMX512 interface is also available for professional show control.
Can NovaPro HD be configured without desktop software?

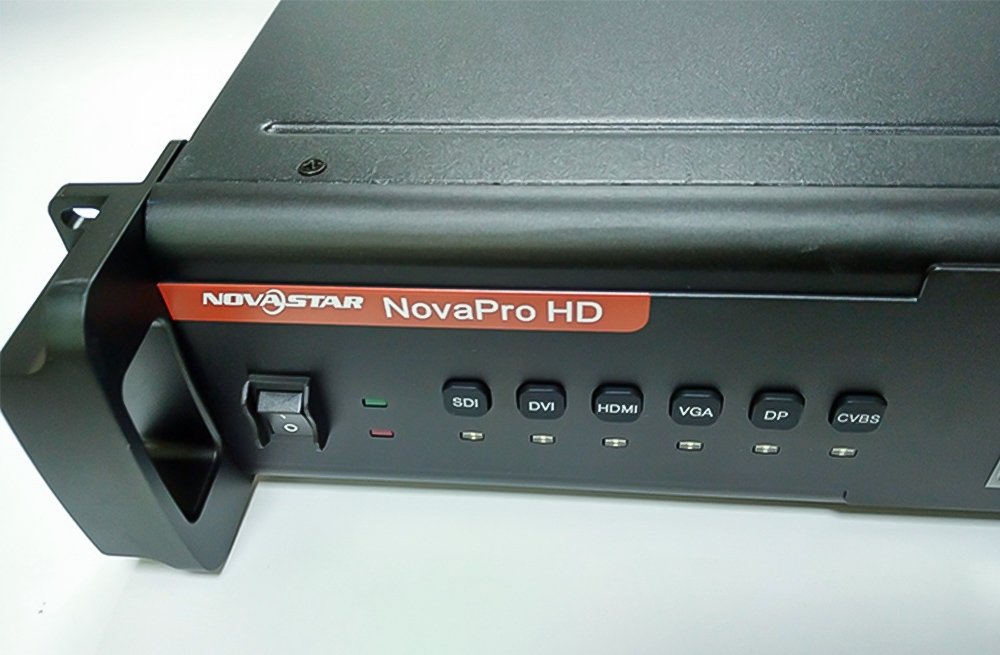

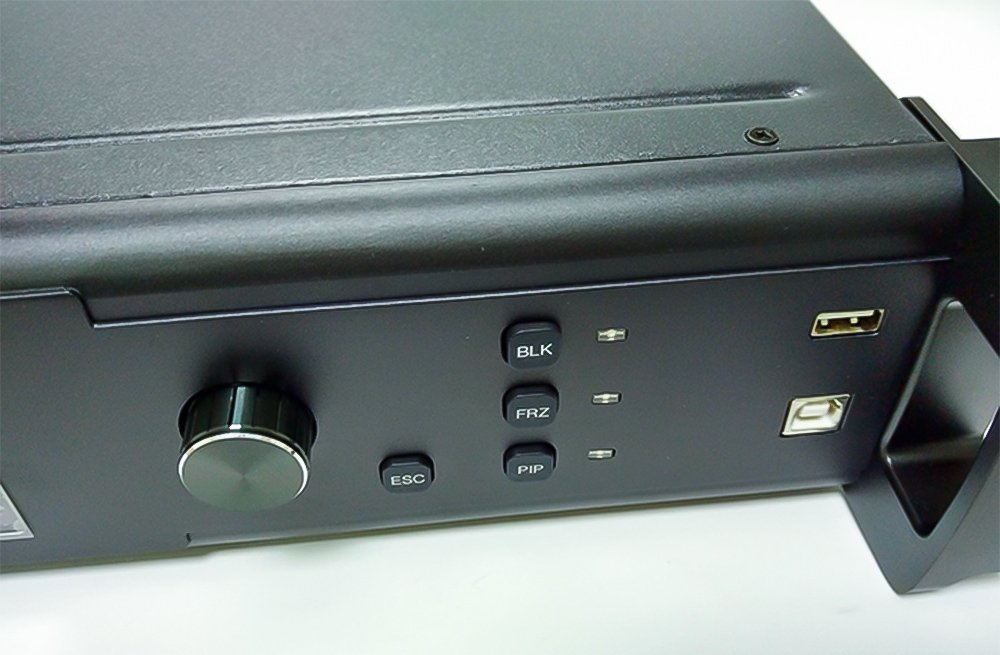

Yes. Basic system configuration is available from the front panel using the control wheel and button. Browser-based configuration can also be performed from a computer, tablet or smartphone.
Does NovaPro HD support custom LED screen resolutions?
Yes. It supports user-defined EDID and custom output resolutions, including wide or tall LED canvases, within the specified bandwidth limits.
