Description
The NovaStar EL2000 is a 4K video wall splicer designed for professional LED display and multi-screen systems. Its pure-hardware FPGA architecture combines multi-source processing, flexible screen layouts and browser-based control in one stable platform.
For projects that need centralized control without installing desktop software, the EL2000 can be operated from a PC, tablet or kiosk through its B/S web interface. It supports multiple users, fast page response and practical on-site configuration for conference rooms and other professional multi-screen installations.

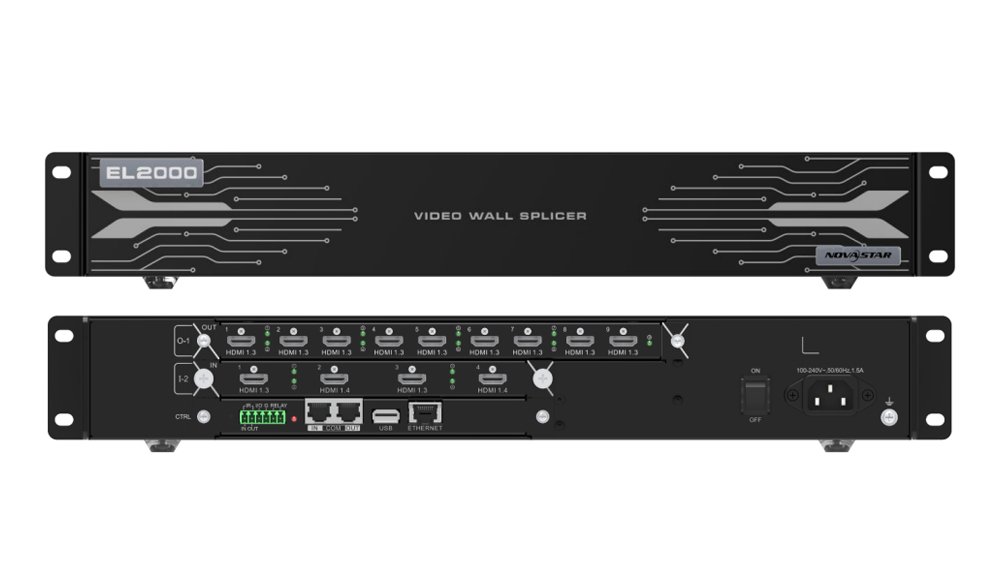

NovaStar EL2000 at a glance
| Product | NovaStar EL2000 4K video wall splicer |
|---|---|
| Architecture | Modular, pure-hardware FPGA processing |
| Video inputs | 4× HDMI 1.3, or 2× HDMI 1.3 plus 2× HDMI 1.4 |
| Video outputs | 9× HDMI 1.3 |
| Resolution support | 4K Ultra HD input and output support |
| Control | Network and web-browser control; no application installation required |
| Screen management | Multi-screen, multi-layer, output mosaic and LCD bezel compensation |
| Presets | Up to 2,000 presets with scheduled preset-playlist playback |
4K multi-screen processing for LED video walls
The EL2000 accepts multiple input sources and supports 4K Ultra HD input and output workflows. Each screen can use its own output resolution, while output mosaic and LCD bezel compensation help create coordinated video-wall layouts. Adaptive frame-rate synchronization and decimal frame-rate support help maintain consistent playback across connected displays.
Flexible source, layer and content management
- Multi-layer display: Build flexible compositions from multiple sources and layers.
- EDID management: Manage input and output EDID settings for project-specific signal requirements.
- Source tools: Crop input sources, rename cropped sources and organize inputs into groups.
- On-screen content: Add high-definition scrolling OSD text, single-screen OSD settings and channel logos.
- HDCP handling: Automatically decrypt supported HDCP-encrypted sources.
- Preset workflows: Save up to 2,000 presets and schedule preset playlists for repeatable operation.
Browser-based control and system monitoring
The B/S architecture lets operators access the NovaStar EL2000 from common networked devices without installing dedicated application software. Multiple users can collaborate online, which can make configuration and operation more efficient at the installation site.
- Web-based device control and firmware updates
- Self-test tools for fault detection
- Automatic status monitoring and alarms
- Centralized management of multiple screens
- Simple configuration using one card and connector, or multiple connectors across different cards
Who is the NovaStar EL2000 for?
The EL2000 is suited to integrators and operators who need a centralized 4K video wall processor for conference rooms and other professional multi-screen display projects. It is especially useful when browser access, multi-user collaboration, independent screen resolutions and reusable presets are important requirements.
Explore more NovaStar products or compare devices in our LED video processor category.
Frequently asked questions
What does the NovaStar EL2000 do?
It processes and distributes multiple video sources for LED video walls and other multi-screen systems. It supports 4K workflows, multi-screen layouts, multi-layer display, EDID management, OSD content and centralized web control.
How many HDMI outputs does the EL2000 have?
The EL2000 provides nine HDMI 1.3 output ports.
Which HDMI input configurations are available?
The supported input configurations are four HDMI 1.3 ports, or two HDMI 1.3 ports plus two HDMI 1.4 ports. Confirm the required configuration for your project before ordering.
Does the EL2000 require control software?
No desktop application is required for normal web-based control. Operators can access the B/S interface from a compatible PC, tablet or kiosk over the network.
Can different screens use different resolutions?
Yes. The EL2000 allows each screen to use its own output resolution and also supports output mosaic and LCD bezel compensation.
Can the EL2000 store and schedule layouts?
Yes. It supports up to 2,000 presets and scheduled playback of preset playlists.
Download the EL2000 specification
Review the detailed interfaces and project requirements in the NovaStar EL2000 Video Wall Splicer Specification.
