Description

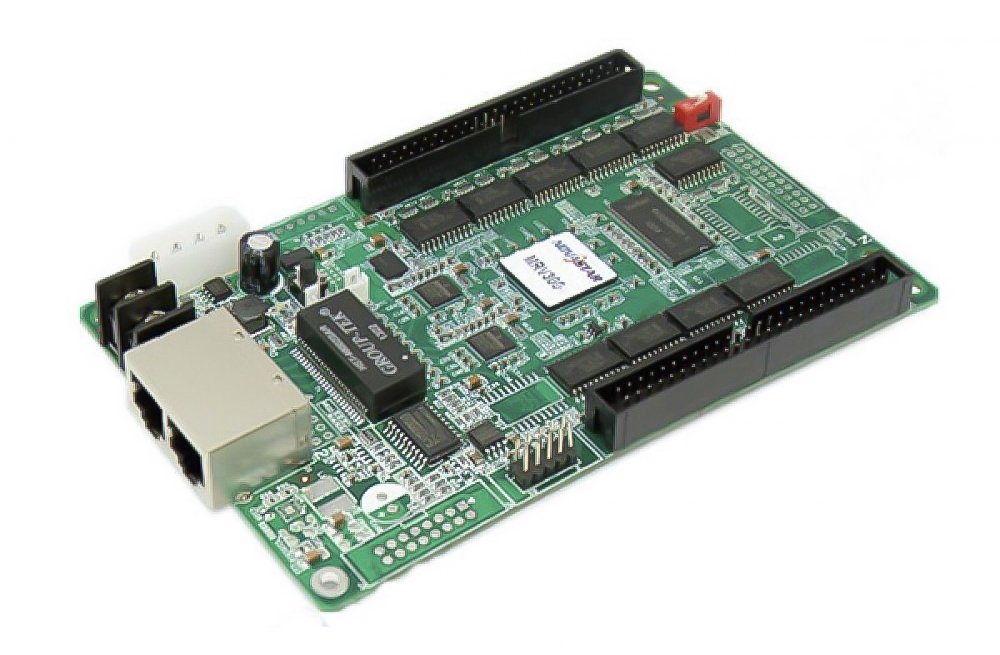

Features of NOVASTAR MRV365 LED Receiving Board:
Novastar MRV365 is the advanced model of Novastar receiving boards. It is compatible with all functions of MRV320,
and increasing the MOM (Memory on Module). Its functions are as follows:
1) Single card outputs 16-group of RGBR data;
2) Single card outputs 20-group of RGB data;
3) Single card outputs 64-group of serial data;
4) Single card support resolution 256×226；
5) 1 relay control;
6) MOM can store correction coefficient and the light panel information;
7) Support configuration file readback;
8) Support program copy;
9) Support temperature monitoring;
10)Support Ethernet cable communication status detection;
11)Support power supply voltage detection;
12)Support high gray scale and high refresh rate;
13)Support pixel by pixel brightness and chromaticity calibration Brightness and chromaticity calibration coefficients for each LED;
14)Support pre-store picture setting;
15)Comply with EU RoHs standard;
16)Comply with EU CE-EMC standard.
