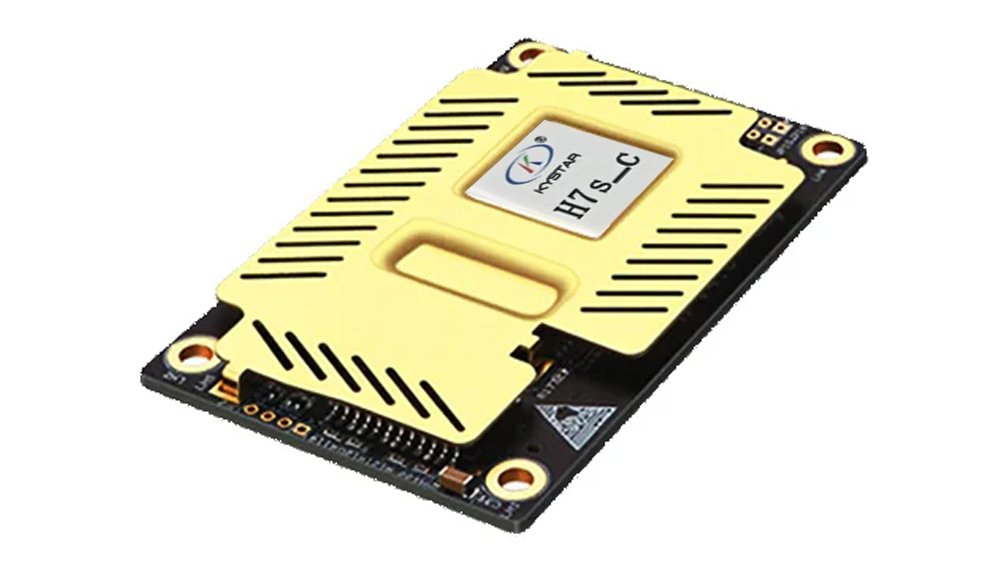

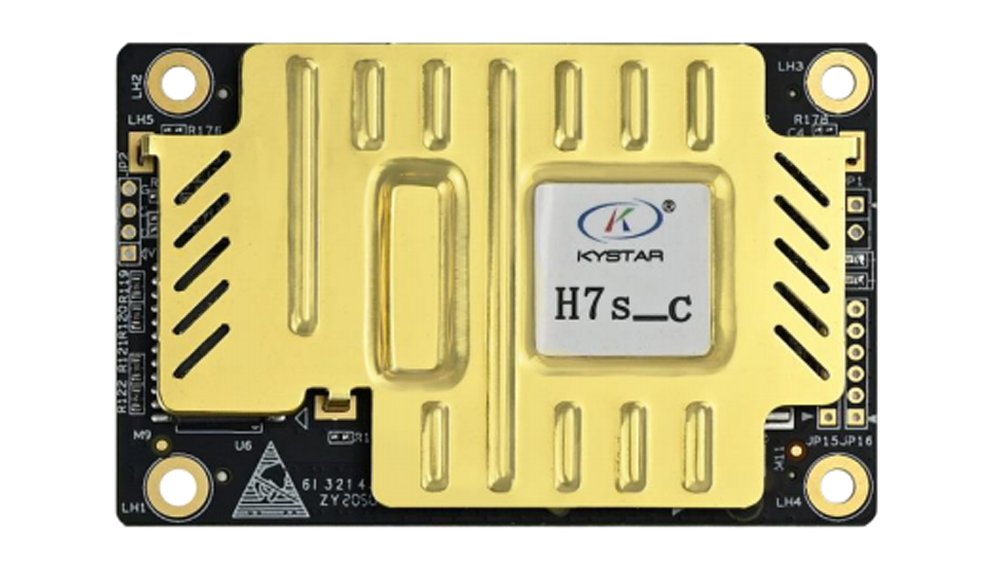

Kystar H7S-C LED Display Screen Receiving Card

Description

Overview

H7s-c receiver card is a small size full-featured high-end receiving card, applied to the LED display as a display data receiving device, used to convert the received data into a signal that can be recognized by the driver chip, and spliced into an image for display on the large screen.

Function

 Supports 32 groups of parallel data.
 Single card with 512*384 pixels.

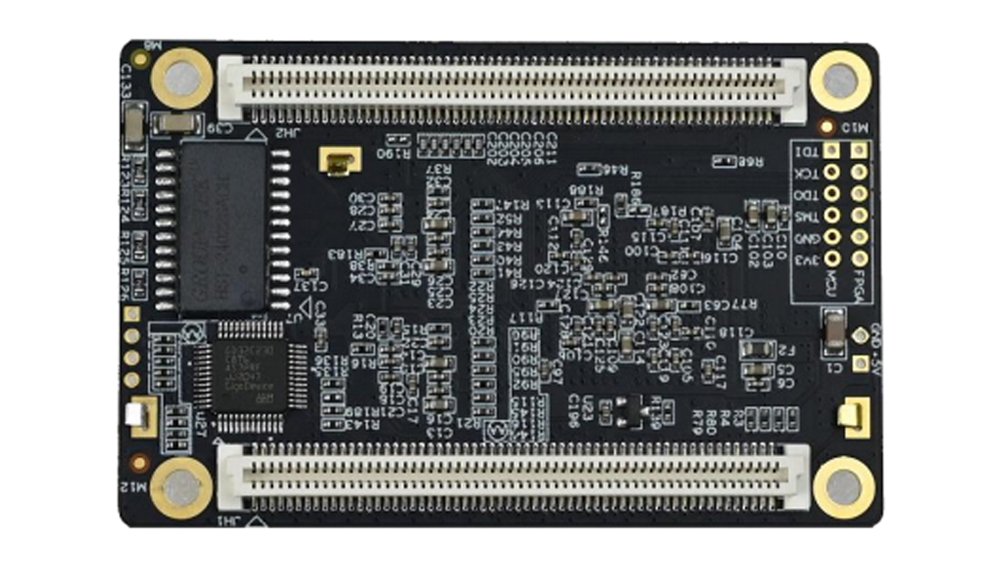

 It adopts high-density connector interface, and the connection is stable and reliable.
 Integrated network transformer for improved electromagnetic compatibility.
 Unique arbitrary frequency doubling technology, the phone shoots without scanning lines.
 Unique color reproduction technology makes the face complexion more realistic.
 Supports a wide range of general-purpose chips, dual-latch chips and PWM chips.
 Support HDR10 high dynamic range display.
 Support low-light high-gray display.
 Supports point-by-point brightness correction function.
 Support dual SIM backup.
 Support dual power backup detection function.
 Support external LCD module.
 Supports flash management of lightboards.
 Supports its own temperature and voltage monitoring functions.
 Support one-click read back profile information function.
 Support one-click repair function, card replacement worry-free.
 Supports real-time detection of network communication status.
 Support display rotation function at any angle.
 Support any extraction point, easy to set up a variety of special-shaped screens.
 Complies with EU RoHS standards.
 Passed CE, FCC certification.

Download Specification:
Kystar H7S-C LED Display Screen Receiver Card Specification
