Description

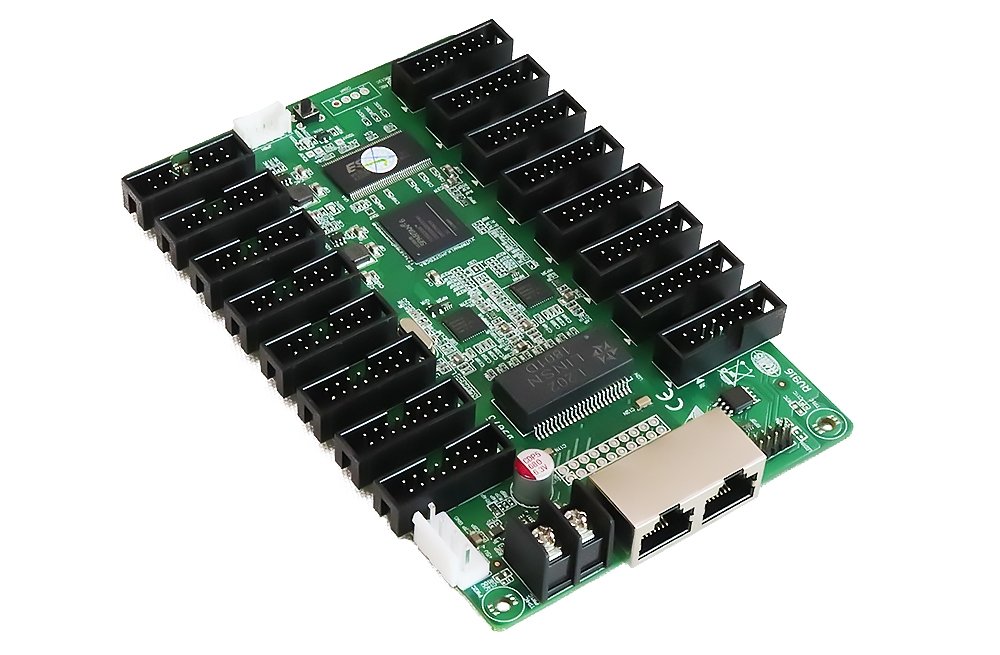

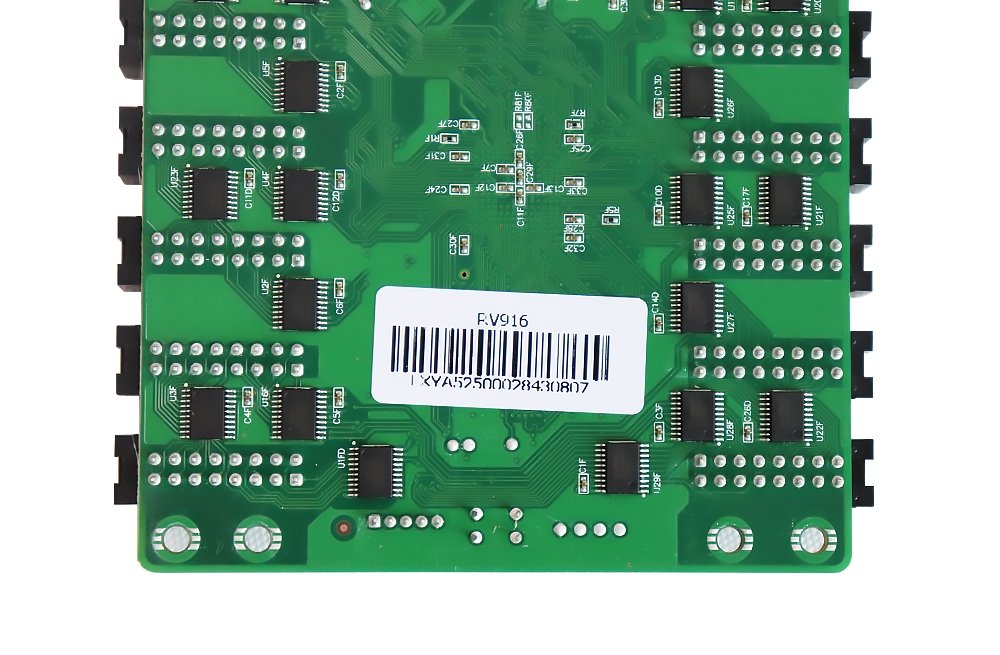

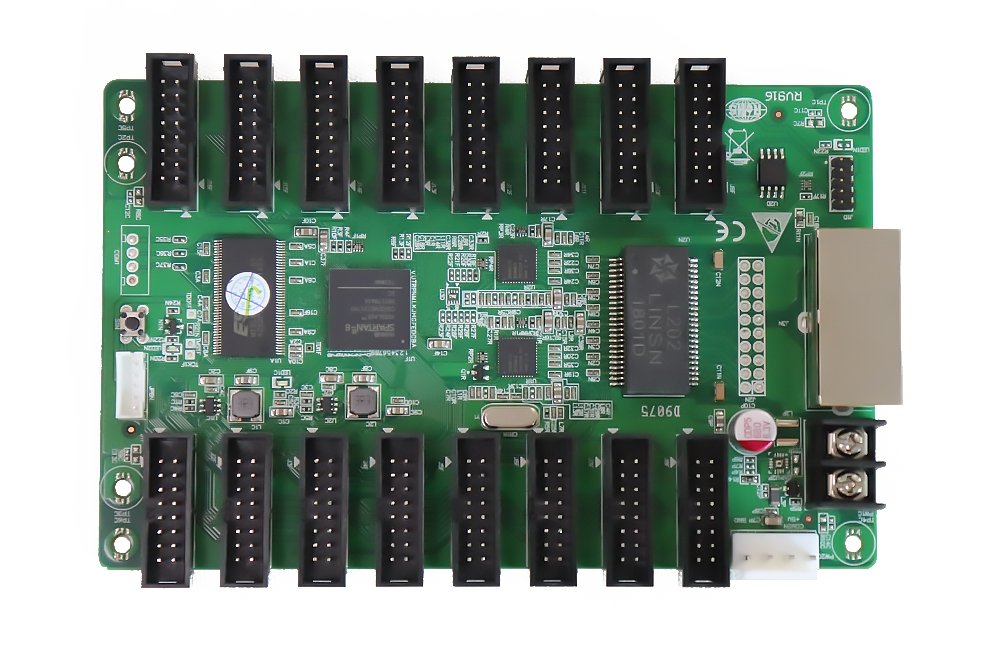

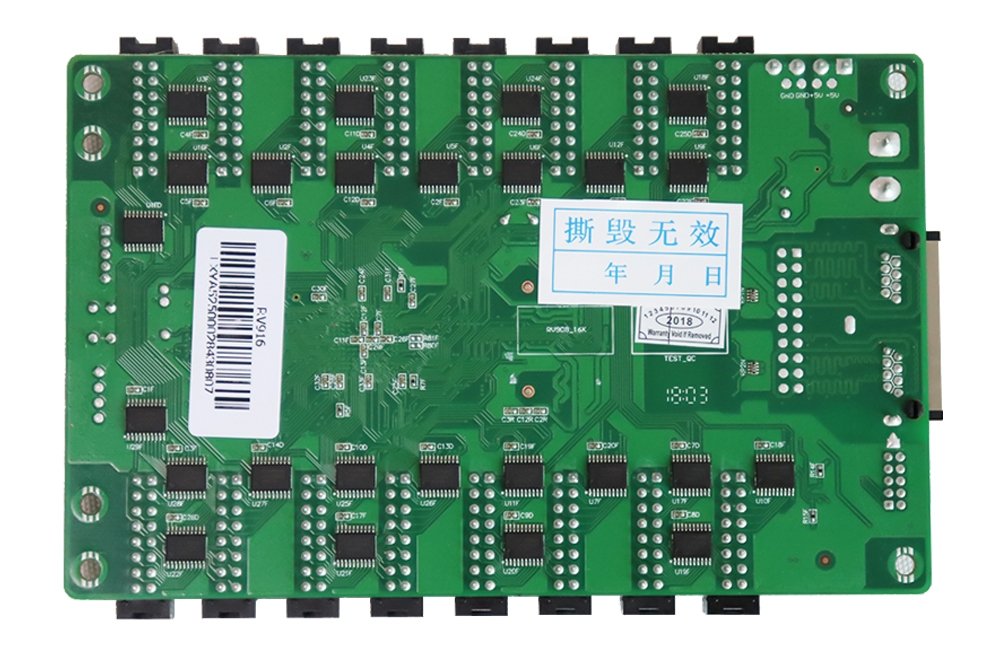

Features of LINSN Receiving Card L202 RV916 LED Control Card:
1) On-board 16 HUB75 (supports 32 sweeps) 16P interface;
2) The single card can support 256X1024 or 512X512 pixels.
3) A single card supports a maximum of 32 sets of RGB data;
4) Support 138 decoding, 595 serial decoding and other decoding methods;
5) Supports single-card color space conversion, chroma-by-point correction, and brightness-by-point correction;
6) Support high refresh and high grayscale display;
7) Support universal driver chip, most PWM driver chip;
8) Support configuration file readback;
9) Support network cable error test;
10) Meet EU RoHs standards;
11) Conform to the EU CE-EMC Class B standard;
