Description

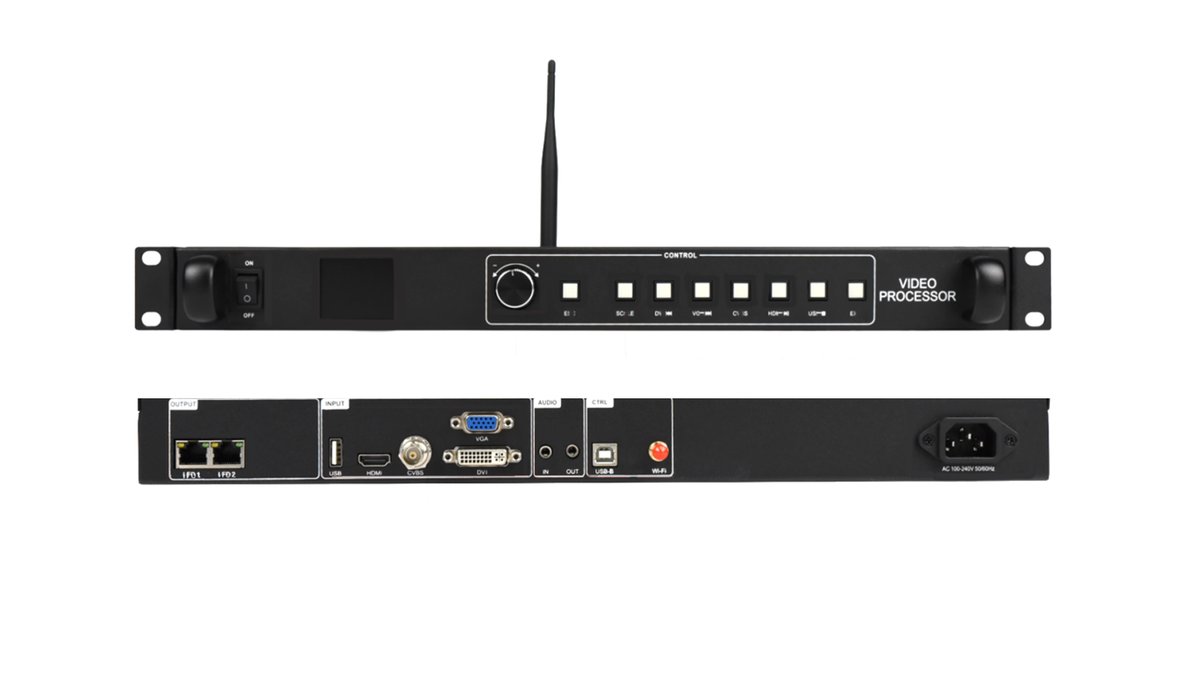

HuiDu HD-VP210A 3-in-1 Synchronous Machine Features:
Input
1) Supports 1 HDMI, 1 DVI, 1 VGA, 1 CVBS signal input, switchable;
2) 1 USB input, supports direct playback of videos and pictures in various mainstream formats in the root directory of the USB flash drive, and supports up to 1080P high-definition video playback;
3) Supports 1 TRS 3.5mm standard dual-channel audio input and HDMI audio input.
Output
1) Standard 2-way Gigabit network port, directly cascade receiving card;
2) Maximum control of 1.3 million pixels, maximum horizontal support of 3840 pixels, maximum vertical support of 2500 pixels;
3) 1 TRS 3.5mm standard dual-channel audio output.
Function
1) Standard Wi-Fi, supports mobile phone APP wireless control;
2) Supports brightness adjustment;
3) Supports 8 scene presets and calls.
HuiDu HD-VP210A 3-in-1 Synchronous Machine Connection diagram:
HuiDu HD-VP210A 3-in-1 Synchronous Machine Download Specification:
HuiDu-HD-VP210A-3-in-1-Synchronous-Machine-Specification(Chinese)
HD-VP210-video-processor-manual.pdf
