Description
HUB-44L LED Module HUB Card Interface Definition:
| 1 | RD1 | 2 | GD1 |
| 3 | BD1 | 4 | RD2 |
| 5 | GD2 | 6 | BD2 |
| 7 | RD3 | 8 | GD3 |
| 9 | BD3 | 10 | RD4 |
| 11 | GD4 | 12 | BD4 |
| 13 | D | 14 | A |
| 15 | GND | 16 | C |
| 17 | B | 18 | GND |
| 19 | GND | 20 | CLK |
| 21 | OE | 22 | GND |
| 23 | GND | 24 | LAT |
| 25 | SR | 26 | GND |

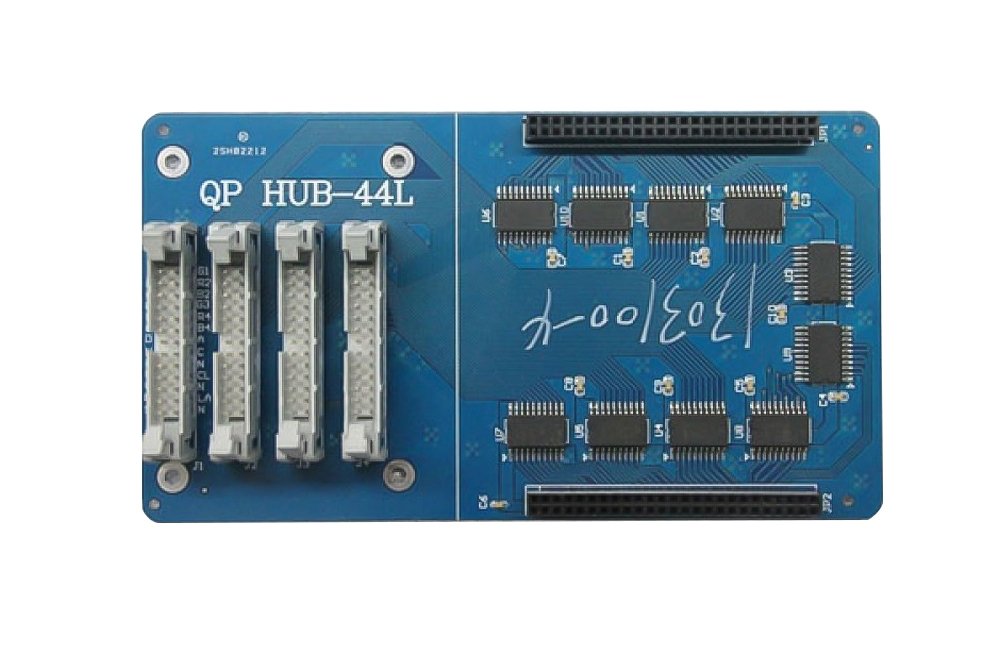

HUB-44L LED Module HUB Card
$12.00
HUB-44L LED Module HUB Card
Available on backorder
Additional information
| Weight | 0.3 kg |
|---|
