Description

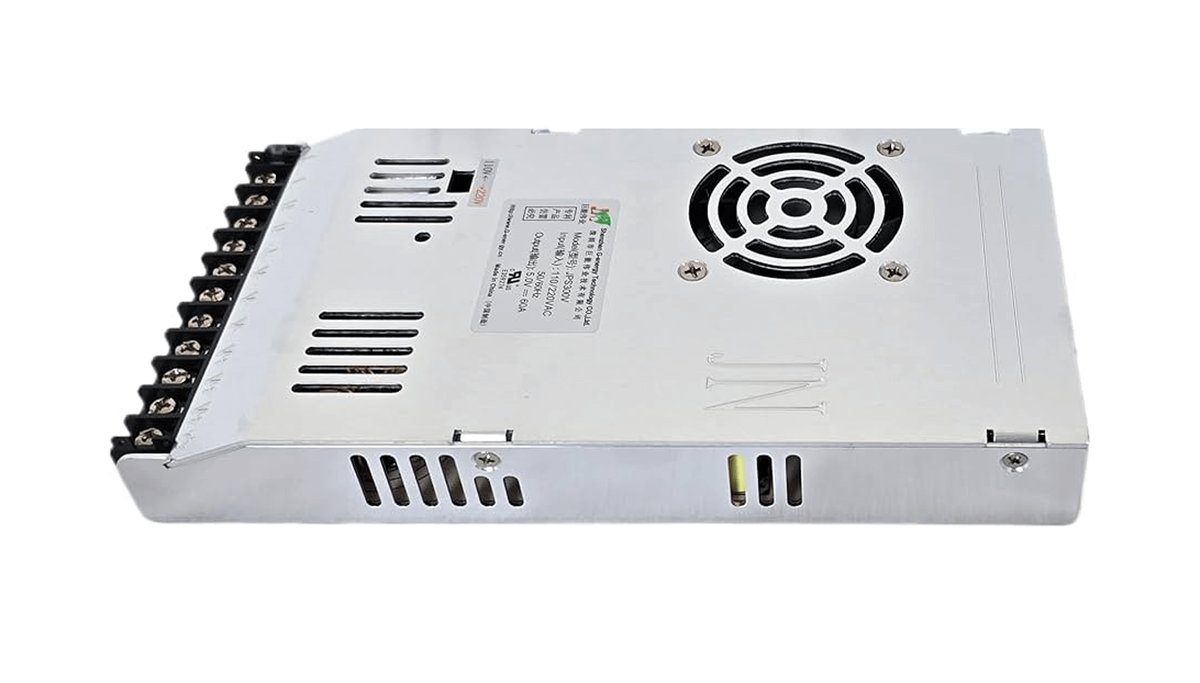

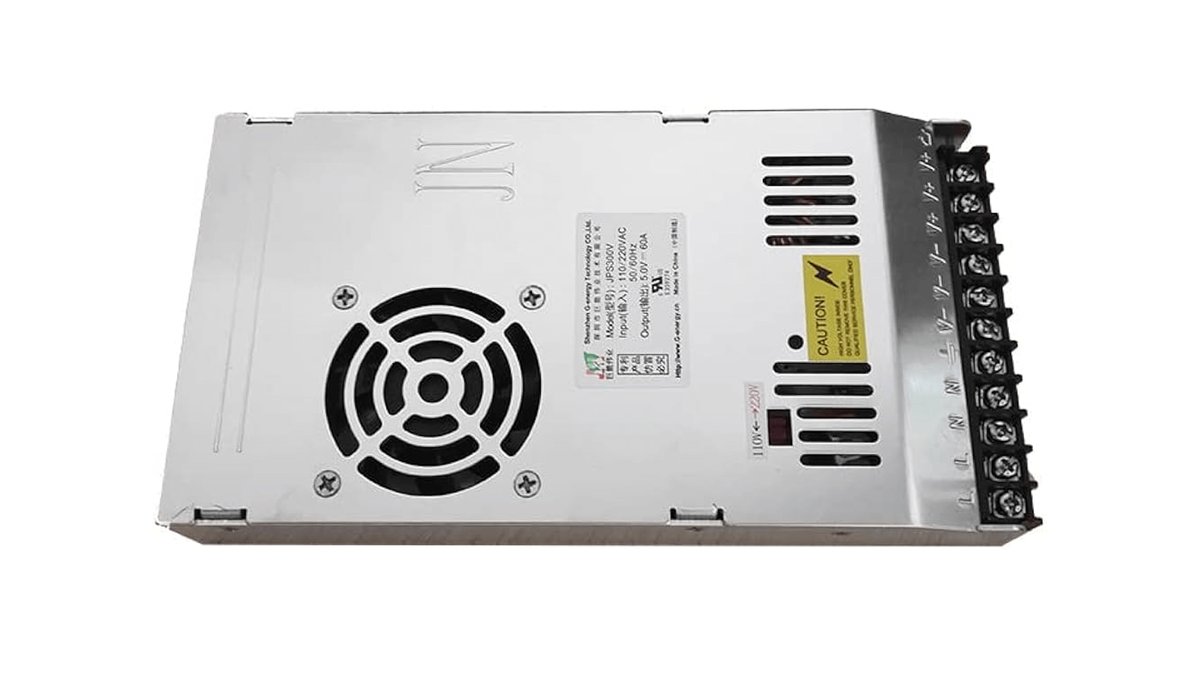

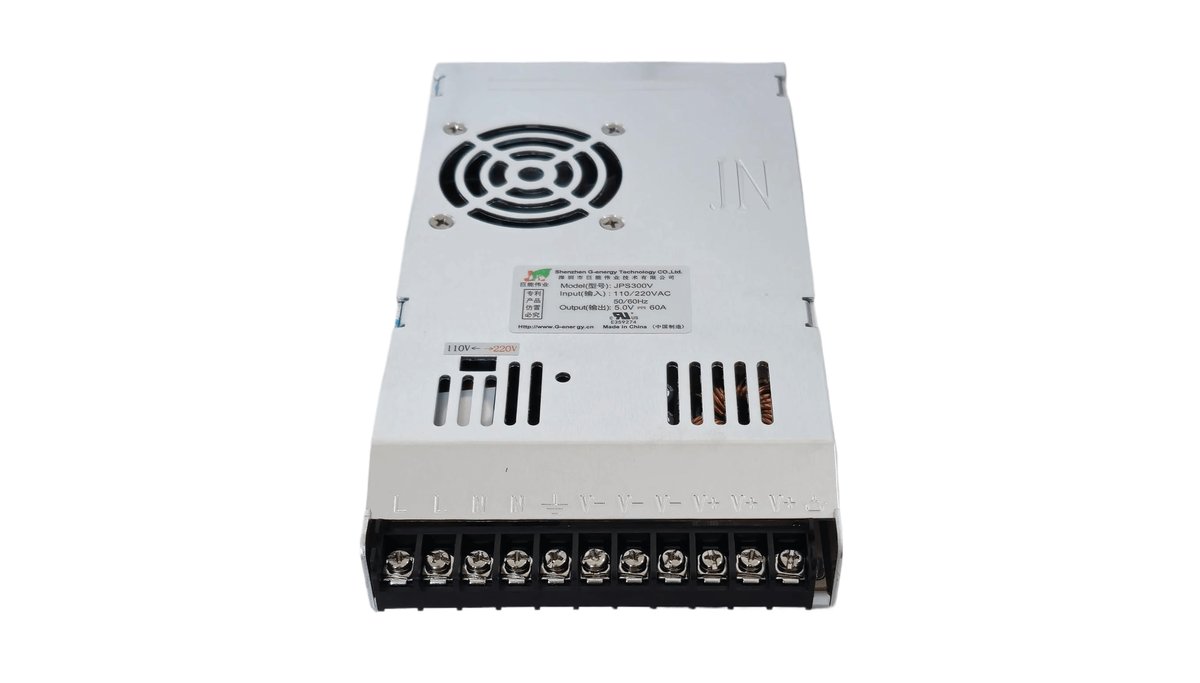

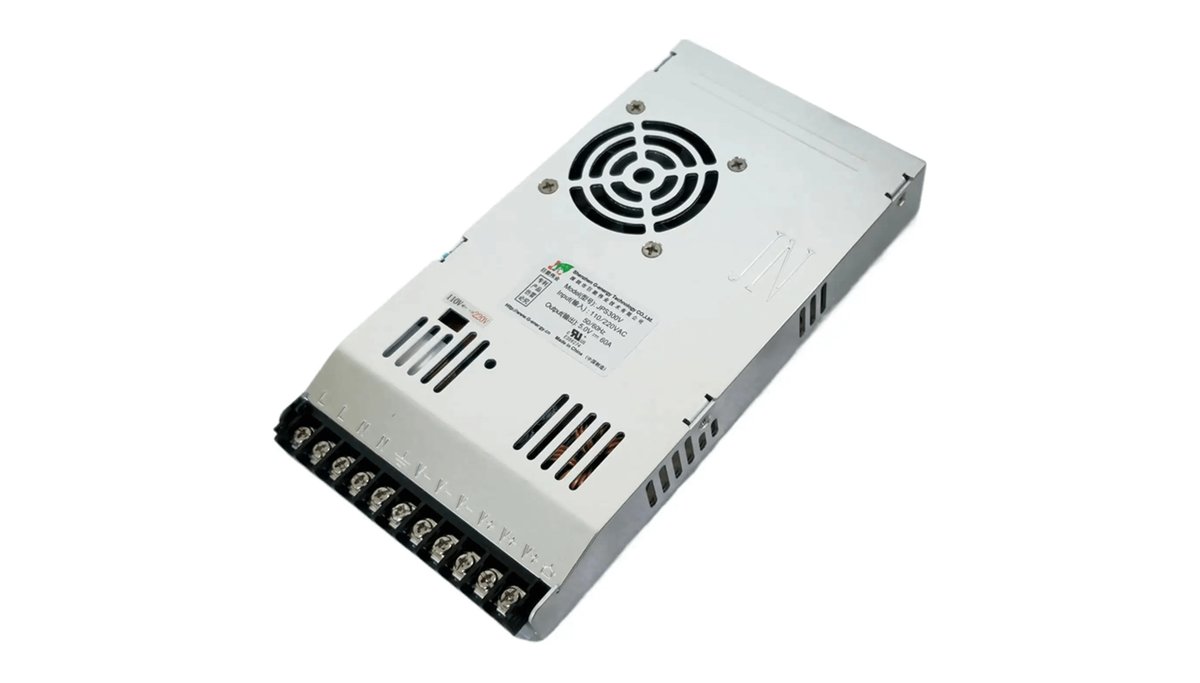

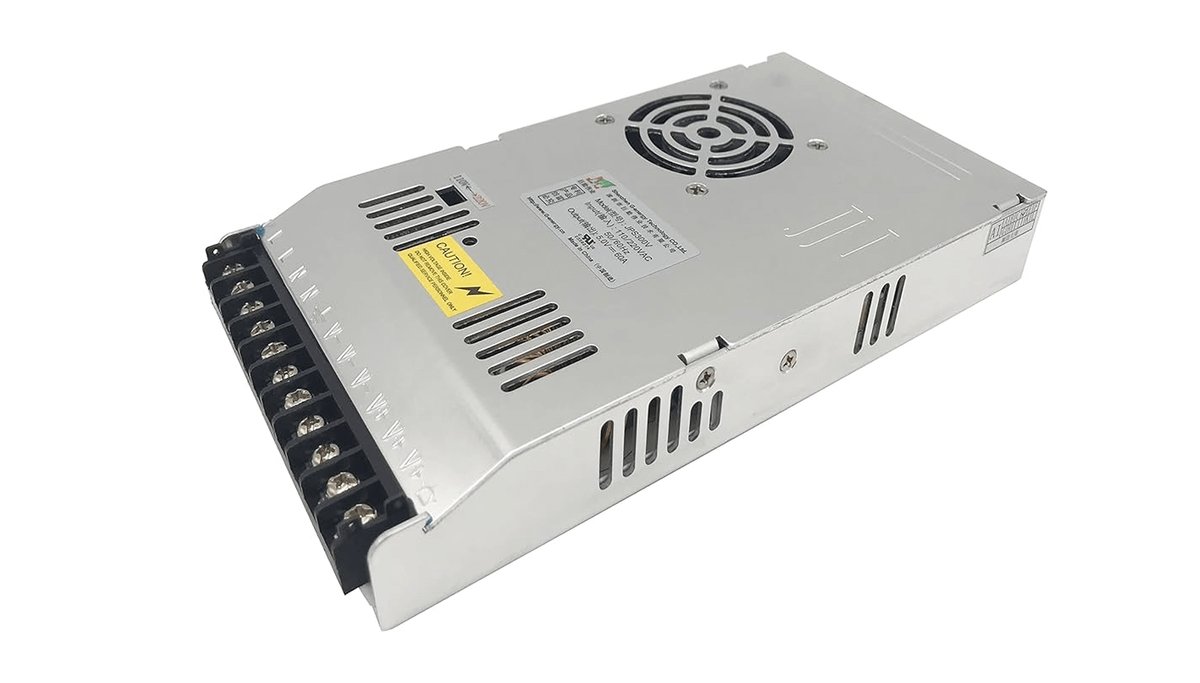

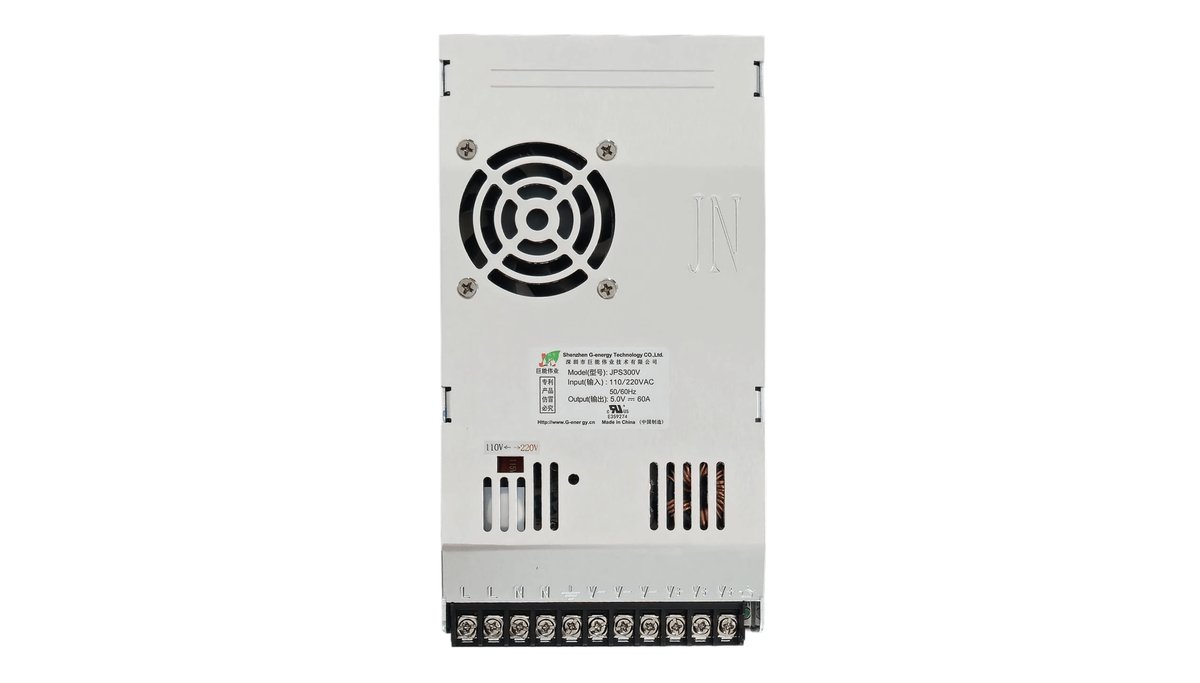

The power supply has the characteristics of small volume, high efficiency, stable operation and high reliability. The power supply has input under-voltage, output current limiting, output short circuit and so on.
Specification
Output Power（W）：300
Rated Input Voltage（Vac）：110/220(±20%)
Rated Output Voltage（Vdc）：+5.0
Output Current Range（A）：0-60.0
Precision：±2%
Ripple and Noise（mVp-p）：≤150
Rated voltage range：110/220Vac
Input frequency range：47—63Hz
Efficiency：≥78.0%
Efficiency factor：≥0.45
Max input current：≤5.0A
Dash current：≤120A
Download Specification:
G-Energy JPS300V LED Video Sign Power Supply Specification
