Description

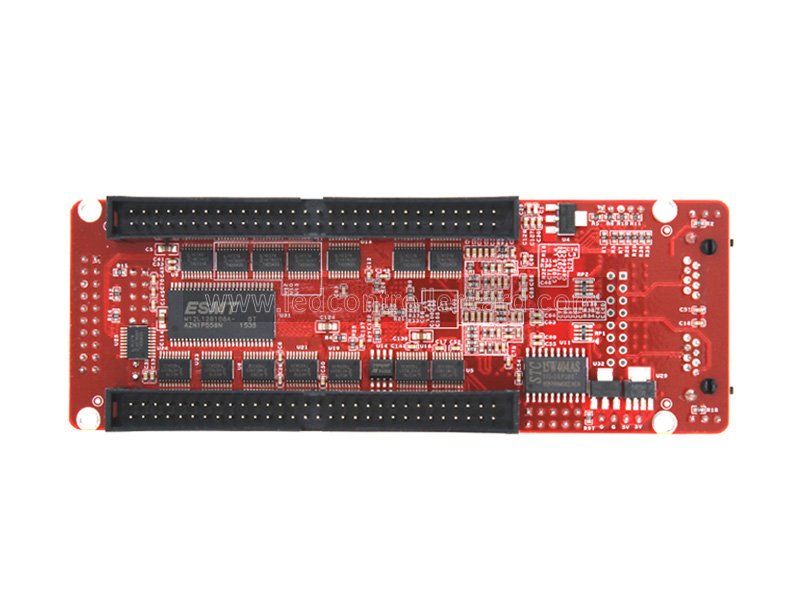

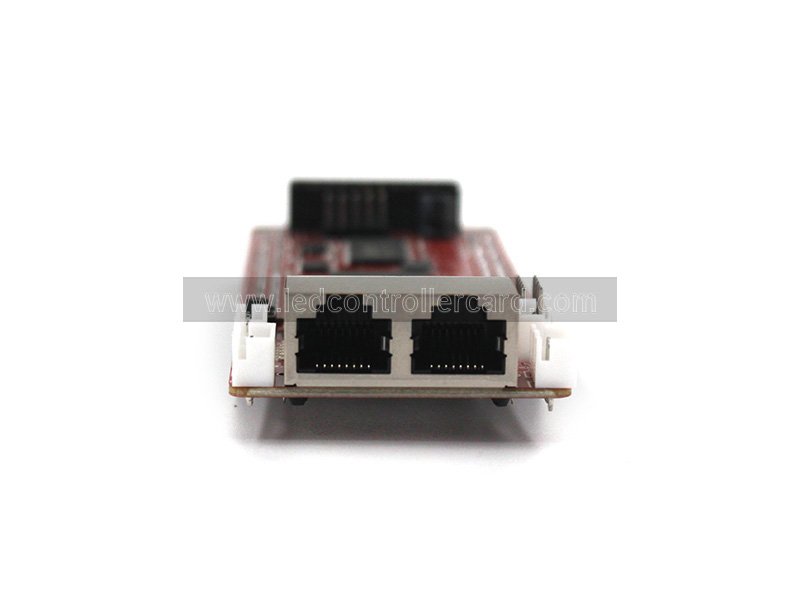

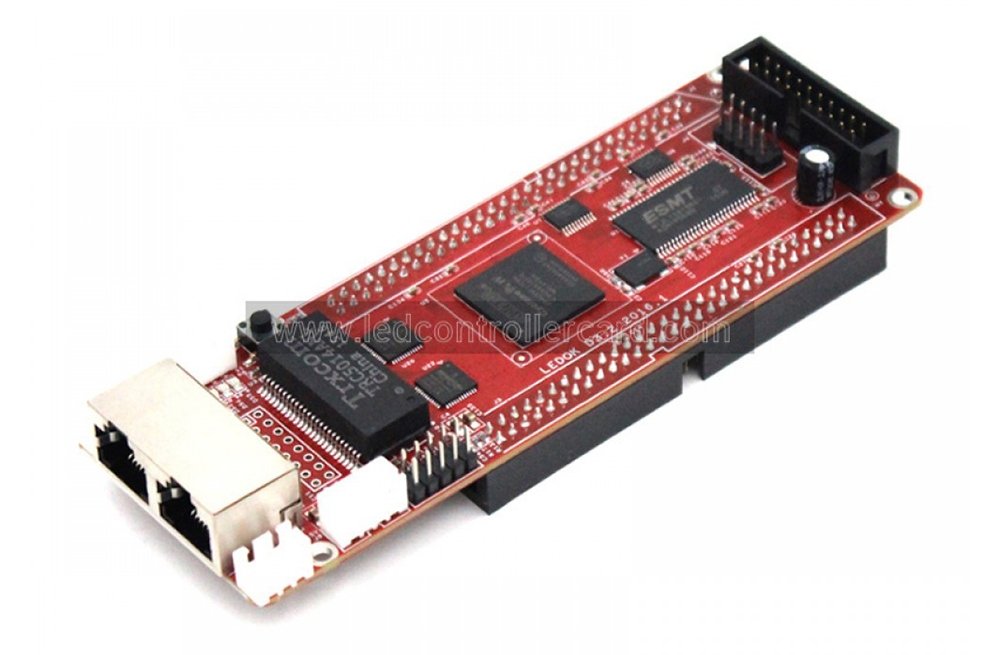

XIXUN D10-270 Miniature LED Panel Receiving Card Features:
- Support 24 groups of data interface, support pixels is twice than that of ordinary receiving card
- With humidity, temperature and other sensor functions on-board
- Have control interface of led module’s driver IC
XIXUN D10-270 Miniature LED Panel Receiving Card Parameters:
| Type | Receiving Card |
|---|---|
| Mode | D10-270 |
| One card has 24 groups of RGBR’data output | Support |
| One card has 28 groups of RGBR’data output | Support (the led module should be 1/8 scan mode or smaller than 1/8 scan ), More than 1/8 scan mode is 28 data group needs 595 decode led module |
| Power Voltage Detect | Support 3 Roads Power Voltage Detection |
| Cabinet Door Close/Open Detection | Support |
| Card Temperature And Humidity Detection | Support |
| Fan Control | Support |
| Smoke Detection | Support |
| Grey Level | 65536 |
| High Refresh Rate With High Brightness | Support |
| LED Module | Full Color |
| LED Module Scan Types | Support random scan types within 32 scans |
| Update Firmware | Support |
| Standard | Meet the ROHS Standard |
Download:
XIXUN D10-270 Miniature LED Panel Receiving Card Specification
