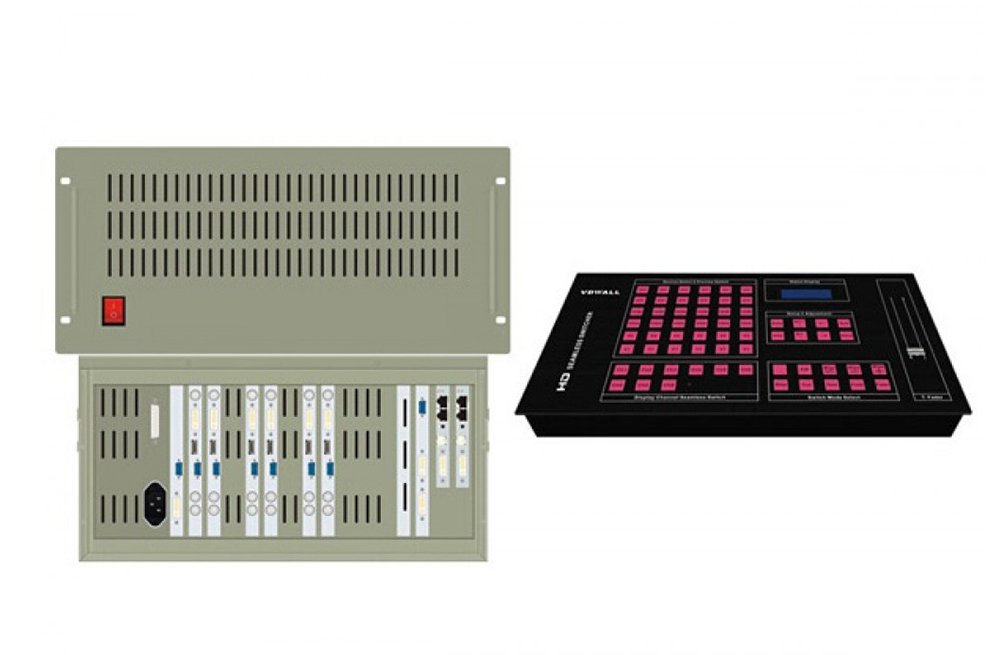

Features of VDWALL LVS5066 HD LED Display Video Controller:
1. A latest generation broardcast-grade video processing technology, clearer in video image details,
more distinct in image gray levels, more brilliant in colors and more vivid in scenes

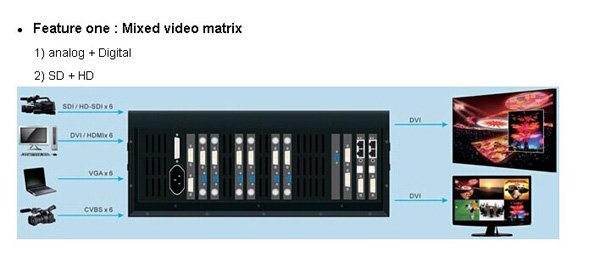

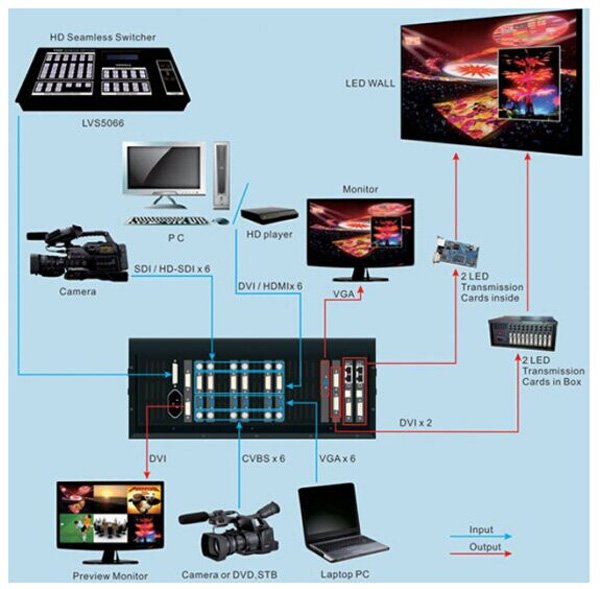

2. 6 input channels with total 24 Multi-format video signals,including 12 Full HD digital inputs:
6× SDI / HD-SDI , 6×DVI / HDMI( with HDCP )
3. Numerous Seamless Switching Effects including Fade-in / Fade-out( MIX ), Clean CUT, WIPE and T-Fader.
They are all truly seamless, glitch-free switching
4. Unrestricted HD Picture-in-Picture ( PIP )
5. HD Text, Flash, Graphics & Logo Overlay

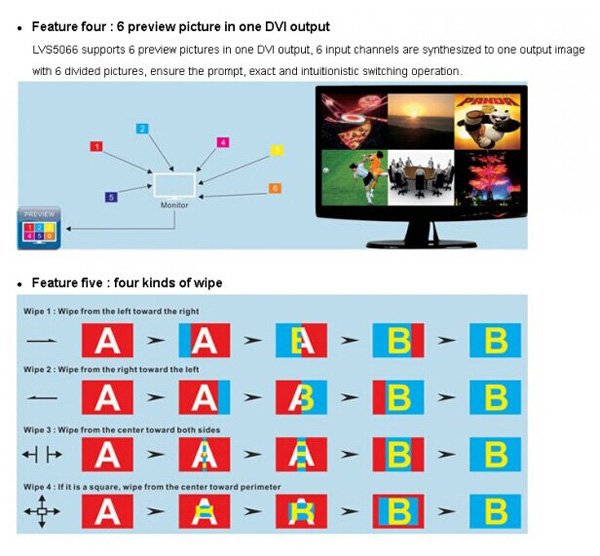

6. 6 Preview Pictures in one DVI output
7. Robust 24 / 7 operation
8. Setup & Control is very Simple
Specifications of VDWALL LVS5066 HD LED Display Video Controller:
|
Model / Configs |
LVS5066 |
|
|
Input |
||
|
Nums / Type |
6×composite video 6×VGA（RGBHV） 6×DVI / HDMI 6×SDI（HDSDI） |
|
|
Video system |
PAL / NTSC |
|
|
Composite Video Scope / Impedance |
1V（p_p）/ 75Ω |
|
|
VGA Format |
PC（VESA） |
≤1600×1200 @60HZ |
|
VGA Scope / Impedance |
R、G、B = 0.7 V （p_p）/ 75Ω |
|
|
DVI Format |
SD / HD （EIA-861B） |
≤1920x1080P @60HZ |
|
PC（VESA） |
≤1600×1200 @60HZ |
|
|
HDMI Format （HDCP） |
SD / HD （EIA-861B） |
≤1920x1080P @60HZ |
|
PC（VESA） |
≤1600×1200 @60HZ |
|
|
SDI Format |
SDI-SMPTE 259M-C |
576i @50HZ 480i @60HZ |
|
HD-SDI |
HDSDI-SMPTE 292M SMPTE 274M/296M |
1080P @50HZ/60HZ 720P @60HZ |
|
Input Connectors |
Composite video ：BNC VGA：15pin D_Sub ( Female ) DVI：24+1 DVI_D SDI / HD-SDI ： BNC / 75Ω |
|
|
Outputs |
||
|
Main Outputs |
1×VGA（RGBHV） 2×DVI |
|
|
Monitor Outputs |
1×VGA（RGBHV） 1×DVI |
|
|
VGA / DVI Format |
1024×768@60Hz |
|
|
VGA Scope / Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
|
|
Main Outputs Connectors |
VGA：15pin D_Sub( Female ) DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D |
|
|
Monitor Outputs onnectors |
VGA：15pin D_Sub( Female ) DVI： 24+5 DVI_I |
|
|
Others |
||
|
Control |
Panel Button |
|
|
Power |
100-240VAC 300W 50 / 60Hz |
|
|
Operating Temp |
5-40 ℃ |
|
|
Humidity |
15-85% |
|
|
Size |
178mm（4U）（H） ×344mm（W）×490mm（L） |
|
|
Weight |
12KG(N.W.) |
|
Application VDWALL LVS5066 HD LED Display Video Controller:
Large venue display apllications such as: TV Broadcast center, Stage Entertainment & Theater , Sports Venues,
High-end meetings& Exhibitions etc.
