Description
Overview

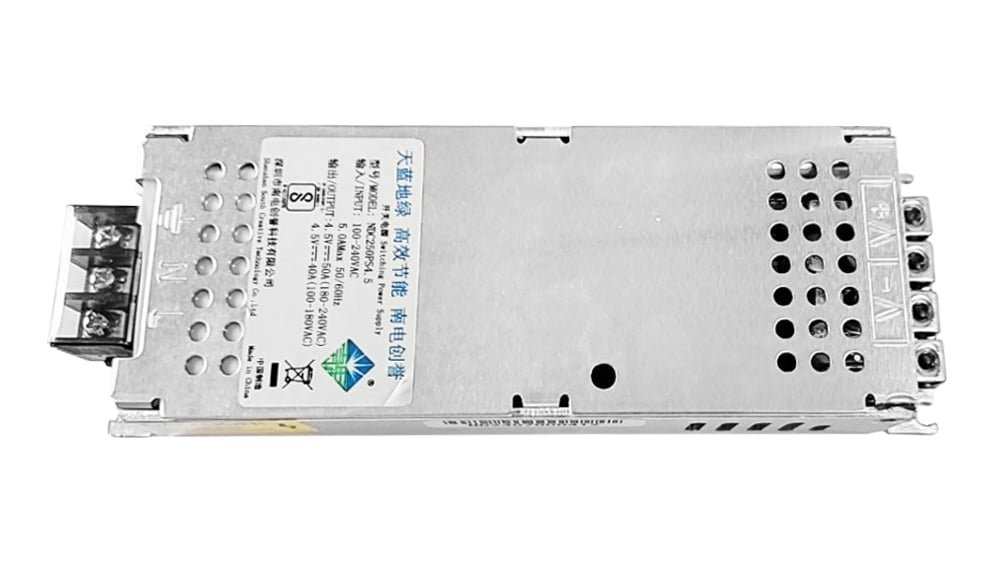

The NDC250PS4.5 power supply has the characteristics of small volume, high efficiency, low heat generation, stable work, high reliability, high efficiency and energy saving. The power supply has the functions of input undervoltage, output overcurrent, overvoltage protection,short-circuit protection and over-temperature protection; The power supply adopts high-efficiency synchronous rectification circuit, which greatly improves the efficiency of the power supply, with an efficiency of 89%, greatly saving energy.
Features:
★ Output Power：225 W
★ Permanent operating temperature：-40—80 ℃
★ Storage temperature：-45—85 ℃
★ Work Relative Humidity：10—90 %
★ Storage Relative Humidity：10 90 %
★ Altitude：3000 M
★ Cooling mode：Natural air cooling
★ Atmospheric pressure：67—106 Pascal
★ Vibration：10-55Hz 19.6m/S²(2G),20 minutes each along X,Y and Z axis.
★ Shock：49m/S²(5G),20 once each X,Y and Z axis.
Download Specification:
South Creative NDC250PS4.5 LED Display Power Supply Specification
