Description

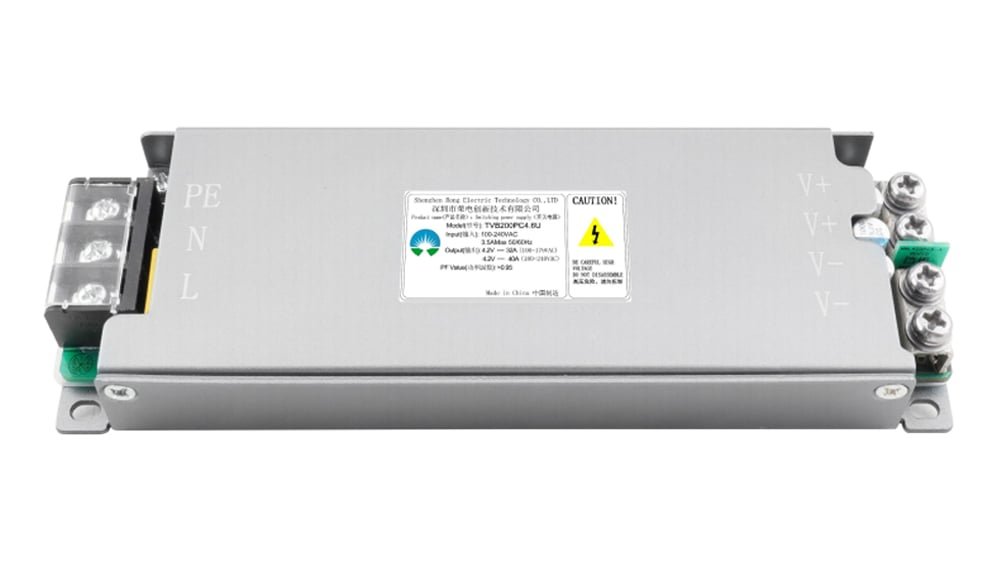

Rong-Electric TVB200PC4.6U LED Display Power Supply Features:
TVB200PC4.6U is an efficient output power supply (4.6V/40A)，This power supply is a special power supply designed for LED display screen and has the following characteristics:
Small size：L150mm*W50mm*H19mm
Light weight：About 202g
High efficiency：≥89%
Small Leakage current：≤ 0.5mA (Vin=242Vac)
Output voltage range：4.5—4.7Vdc
Wide operating temp. range：-40—70℃（+50℃—+70℃ linear de-rated）
Wide Input voltage range：90Vac—264Vac
Power factor：≥0.95（Full load&220Vac）
Cooling mode：Ventilation cooling
Protection Features：over-current protection、short-circuit protection.
Download Specification:
Rong-Electric TVB200PC4.6U LED Display Power Supply Specification
