Description

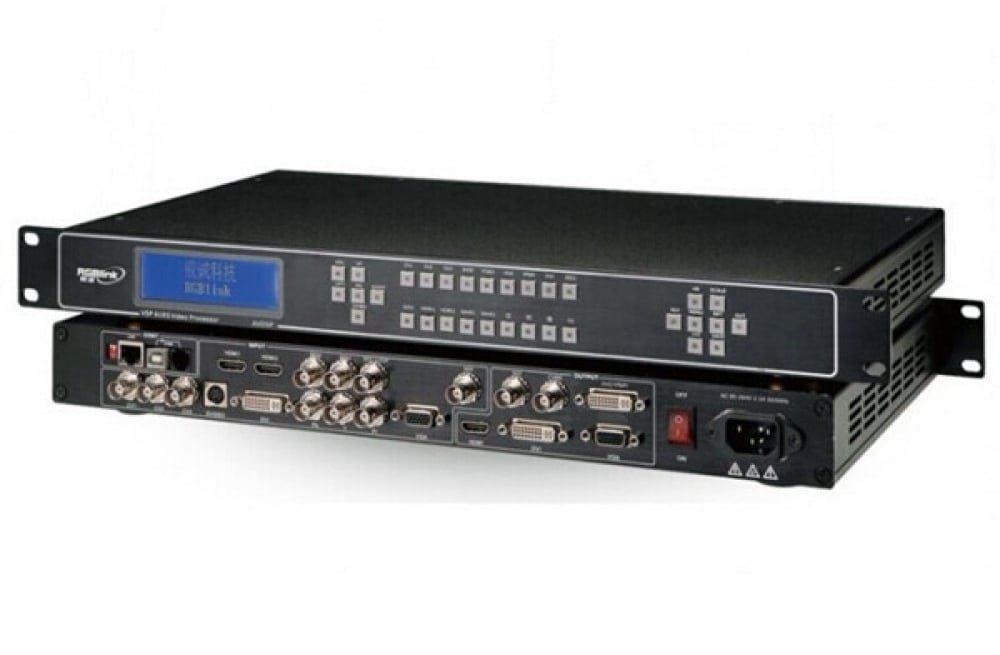

RGBLink VSP516S LED Video LED display Processor Features RGBLink VSP516S LED Video Processor:
· Digital video decoder
· Seven selectable vidoe sources directly from the front panel. including:
computer VGA, component video (SD orHDTV), S-video or composite video. · Two video outputs : (1) VGA and (1) DVI
· Adjustation and conversion of user-defined Aspect Ratio
· Adjustation of video (NTSC, PAL) Brightness, Contrast
· Value of user-defined Gamma from -1,2 to +1,6
· PIP – Picture-in-picture
· Image crop y zoom
· Freezing of the picture
· Multiple Preset modes.
· 10 bits processing
· Window size and position of PIP LED and user-defined from the front panel.
· Audio switching is synchronized with the video source.
· Card insertion slot LED transmission.
· USB, Ethernet (TCP/IP) and RS-232 real-time control.
· Optional input card:Input (1)- HD-SD SDI
Specifications of RGBLink VSP516S LED Video Processor:
|
Input |
|
|
Audio input |
5 channels on RCA connector |
|
Scaled channel input |
· Analog Input(6): computer videoVGA,video YPbPr (SD or HD), S-video or composite video on conector BNC · Input DVI(1): per SMPTE 625/25, compatible with HDMI 1.3 |
|
Scaler input resolutions |
·PAL/NTSC; 480i,576i to 720p, 1080i, 1080p@50 |
|
Output |
|
|
Audio Output |
1 canal en 1/4’’ connector |
|
Digital Output |
·VGA en conectores de 15 clavijas·DVI digital en conector DVI-I |
|
Output Resolutions |
·Resoluciones de VGA (VESA) 1280×1024×60Hz ·Resoluciones de DVI (VESA): 800×600×60Hz，1024×768×60Hz， 1280×1024×60Hz, |
|
User Control |
|
|
Front Panel Control |
LED panel, keyboard y LED lighted push button |
|
Remote Control |
The unit may be controlled from a computer or external controller through LAN (TCP/IP), serial RS-232 or USB. |
|
General |
· Height:1.7″ (4,4 cm) or 19″ (48,3 cm) · Width: 11.9″ (30.3 cm) |
|
Power |
85-264V 2A IEC-3 |
|
Environment |
Temperature:0-40 grades C; Humidity: 10-90% |
|
Warranty |
One year |
Download Specification:
–RGBlink-VSP516S-LED-Video-Processor-Manual.pdf
