Description
Q-01 LED display front maintenance tool magic tool
magic tool Q-01 LED Display Vacuum Front Maintenance Tool draws out the internal air to form a negative pressure, and the module fixed by the magnet is taken out by the pressure difference.
Capacity: 12,000 mAh
Power: 42wh
Charge voltage: 25.2V-1A
Q-01 LED Display Vacuum Front Maintenance Tool LED magic tool Using steps:
1.According to the module model to adjust the adjustable valve;
2.Turn on the main switch;
3.Press the touch switch to start and stop;
4.Turn off the main switch to store.(Remark: Battery lower than 25%, the indicator will show red, Please charge in time,be sure not store for long time with low battery.)
Q-01 LED Display Vacuum Front Maintenance Tool LED magic tool Parameter：
| Capacity | 12,000 mAh |
| Power | 42 wAh |
| Charge Voltage | 25.2 V-1 A |
| Dimension | 200*150*150 (mm) |
| Suction Cup Size | 200*150 (mm) |
| Applicable Module Size | All indoor serious LED display module |

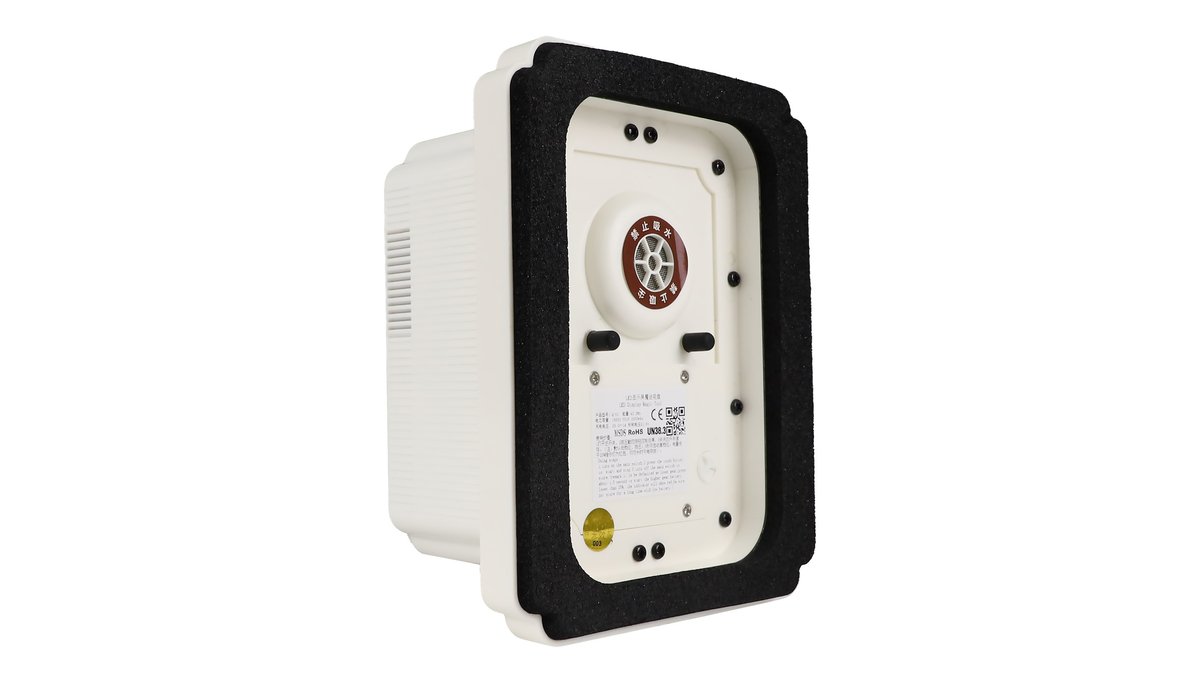

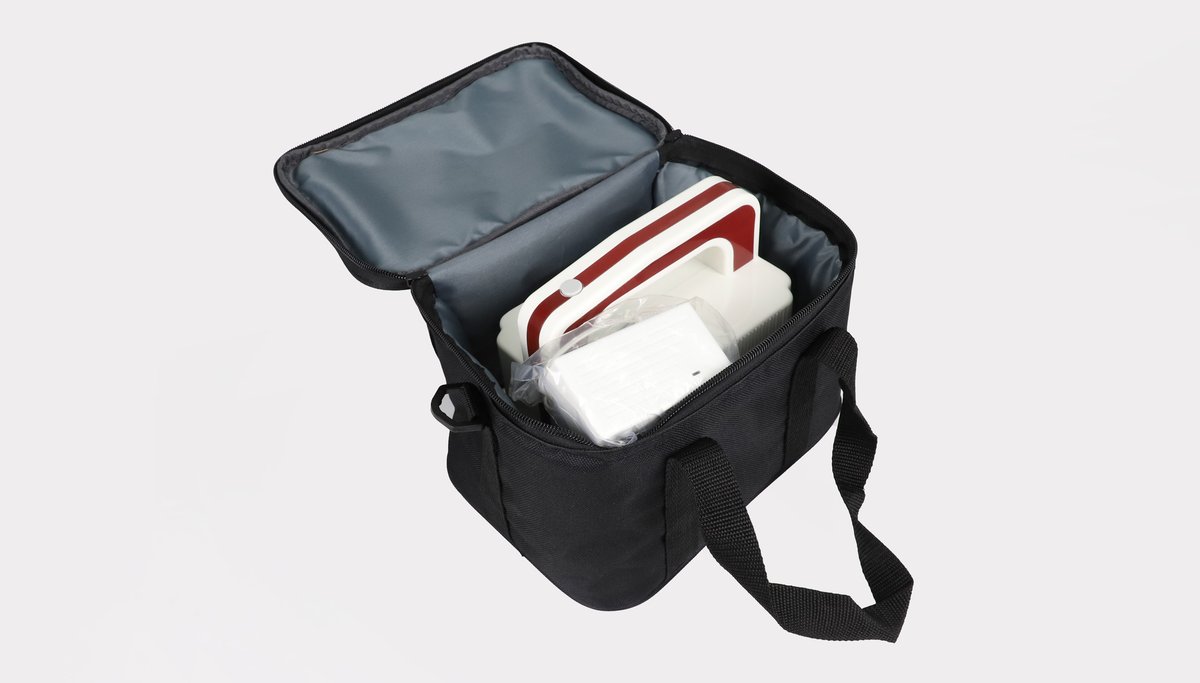

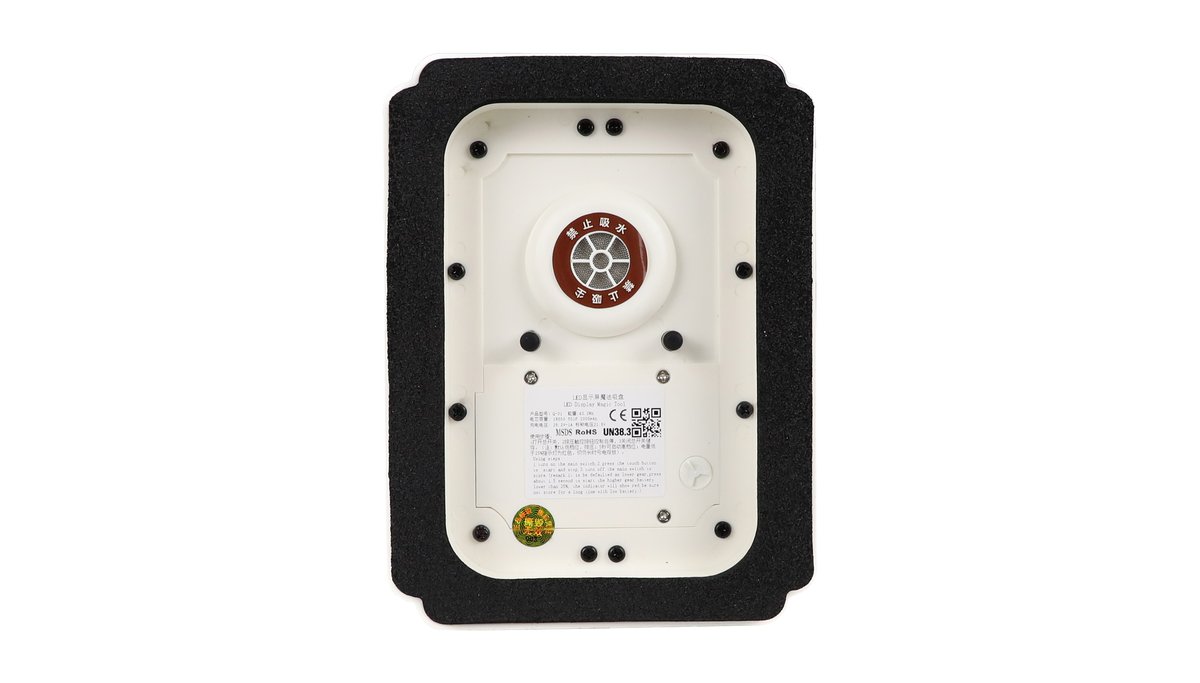

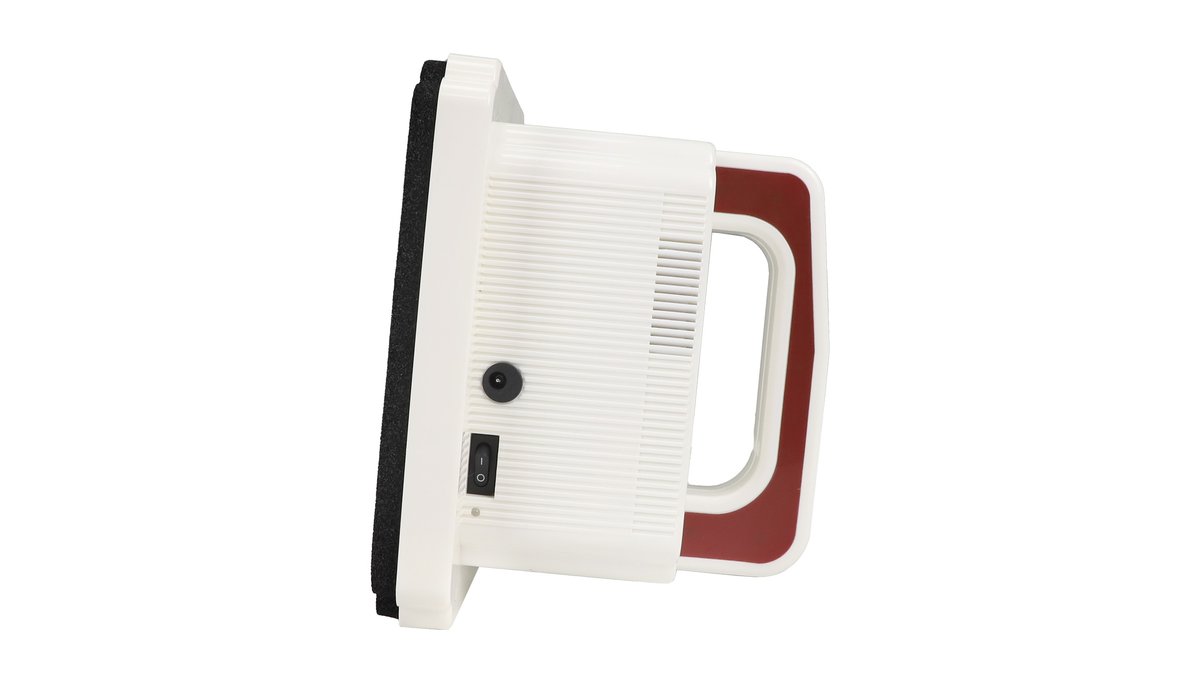

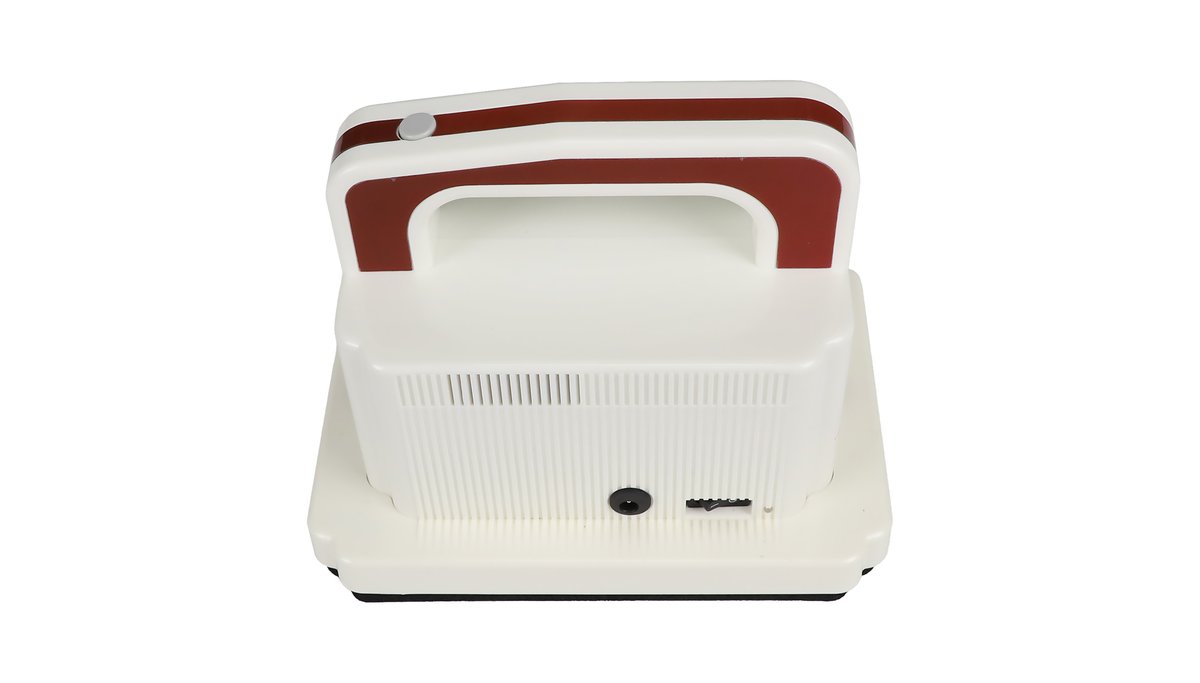

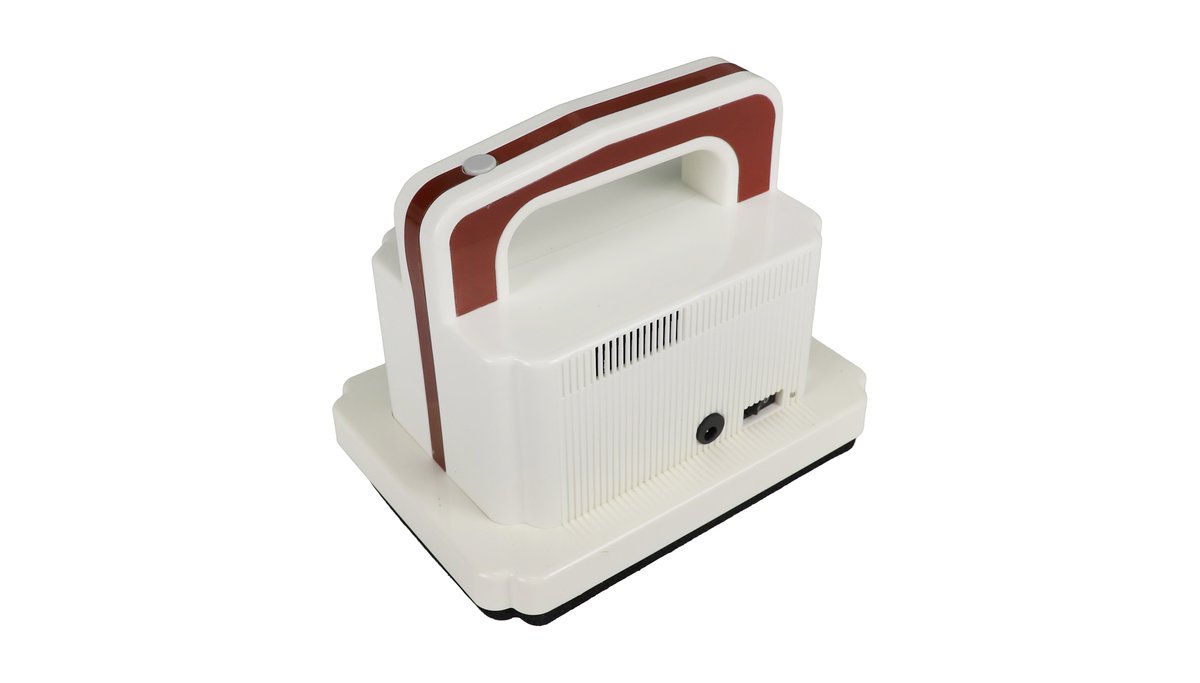

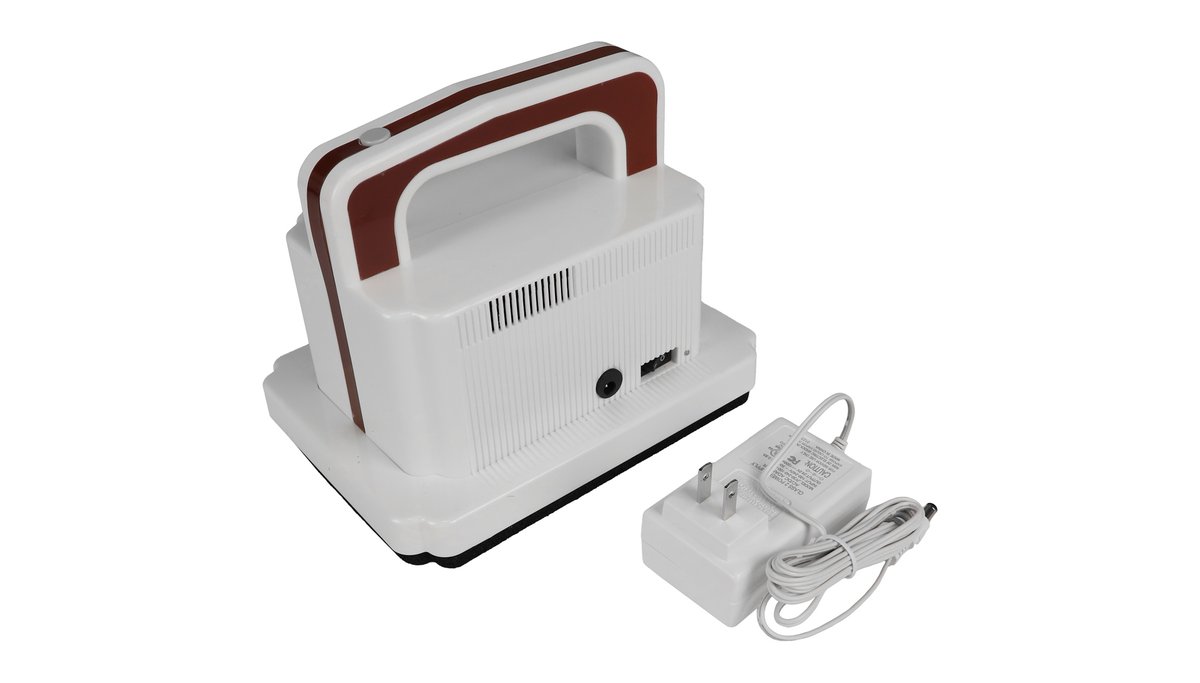

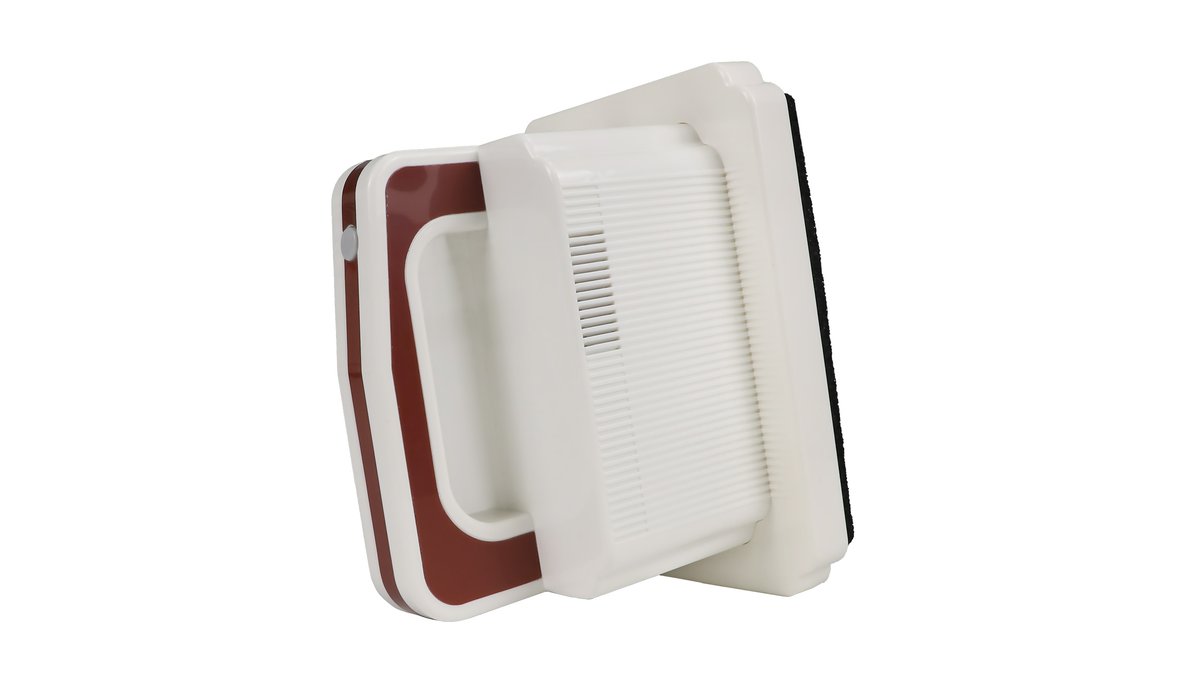

More Pictures of Q-01 LED Display Vacuum Front Maintenance Tool LED magic tool:
Download Specification:
Q-01 LED Display Vacuum Front Maintenance Tool LED magic tool Specification
