Description

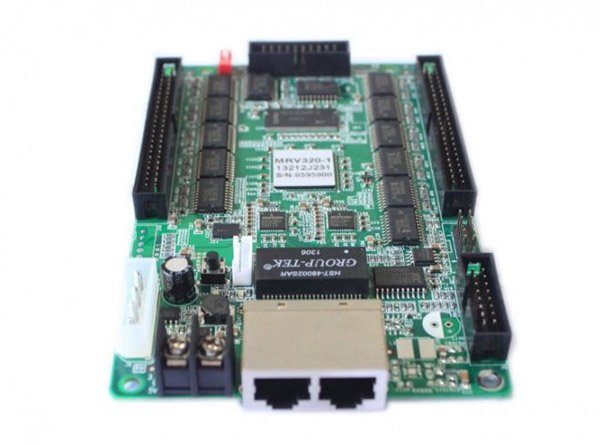

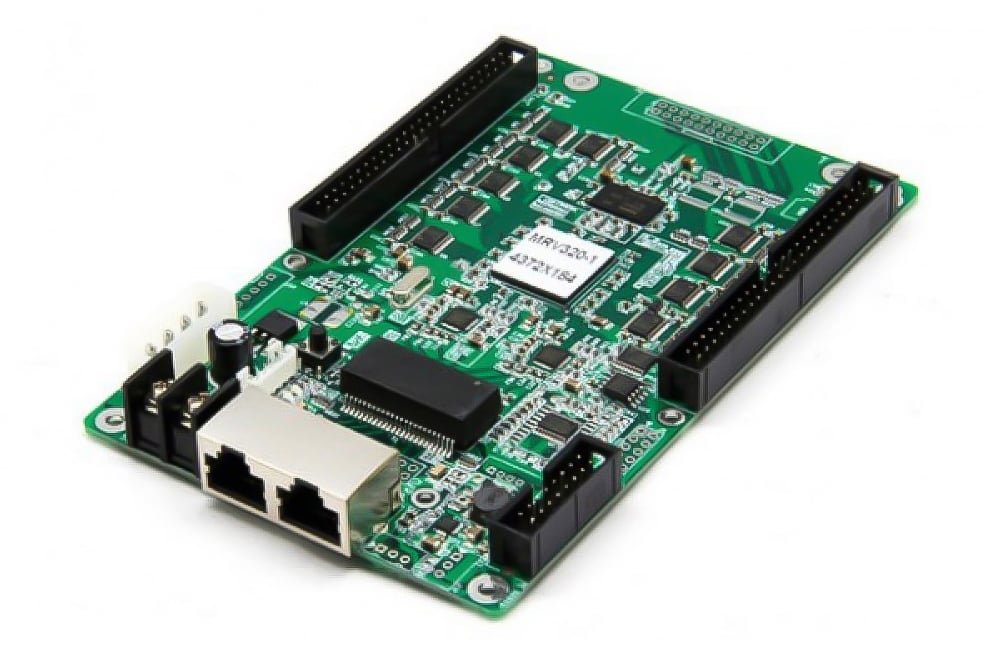

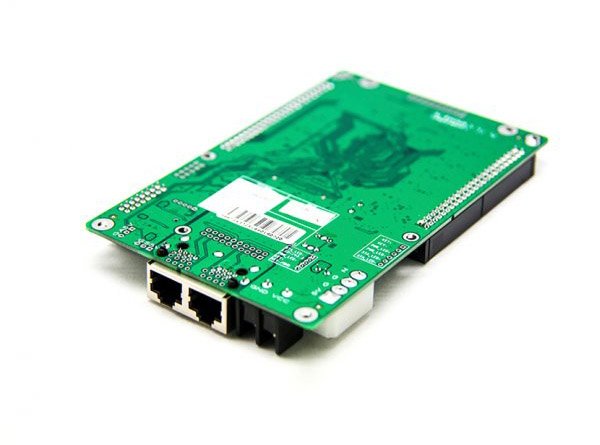

MRV320-1 is an advanced mode of NOVASTAR LED receiver boards. It is compatible with all functions of MRV300-1
and support monitor card connection to achieve comprehensive monitoring. Its functions are as follows:
1) Single card outputs 16-group of RGBR data;
2) Single card outputs 20-group of RGB data;
3) Single card outputs 64-group of serial data;
4) Single card support resolution 256×226;
5) Support configuration file readback;
6) Support program copy;
7) Support temperature monitoring;
8) Support Ethernet cable communication status detection;
9) Support power supply voltage detection;
10) Support pixel by pixel brightness and chromaticity calibration. Brightness and chromaticity calibration coefficients for each LED;
11) Support pre-store picture setting;
12) Comply with EU EoHS standard;
13) Comply with EU CE-EMC standard;
Specifications download:
Receiving-card-mrv320-specifications.pdf
