Description

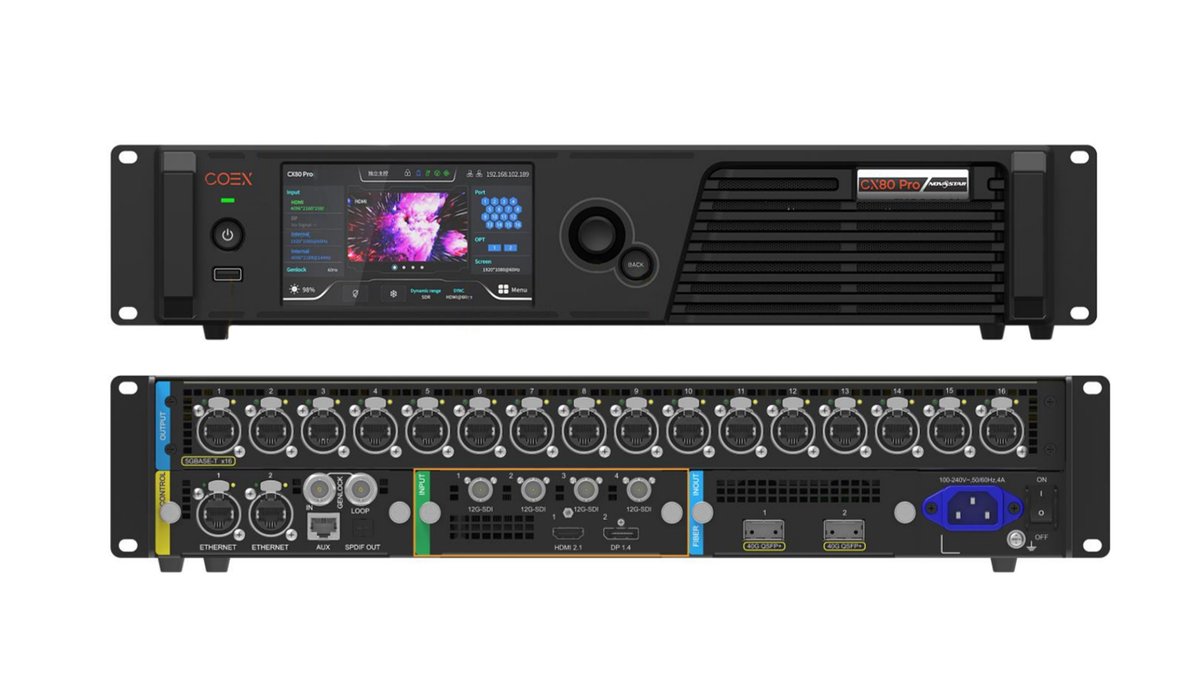

Novastar CX80 Pro video control server Features：
A.2 types of pluggable input daughter cards, which can be selected as needed
− Input subcard 1 (maximum load per port 8K@60Hz)
- 4 channels 12G-SDI+1 channel HDMI 2.1+1 channel DP 1.4
- − Input daughter card 2 (maximum load capacity of single port is 4K@60Hz)
- 4 channels 12G-SDI+4 channels HDMI 2.0
B.splice input
- When using the 12G-SDI/HDMI 2.0 interface input, the input source is supported
C.12bit/10bit/8bit video source input
D.3 output interfaces
- − 16×5Gbps network port
- − 2×40Gbps optical port
- CX80 Pro Control Server Specification
- www.novastar-led.cn 2
- − 1×SPDIF digital audio interface
E.3 control interfaces
- − 1×Genlock synchronization signal input (with loop output)
- − 2×Ethernet Ethernet control network port
- − 1×AUX auxiliary interface
