Description
Overview

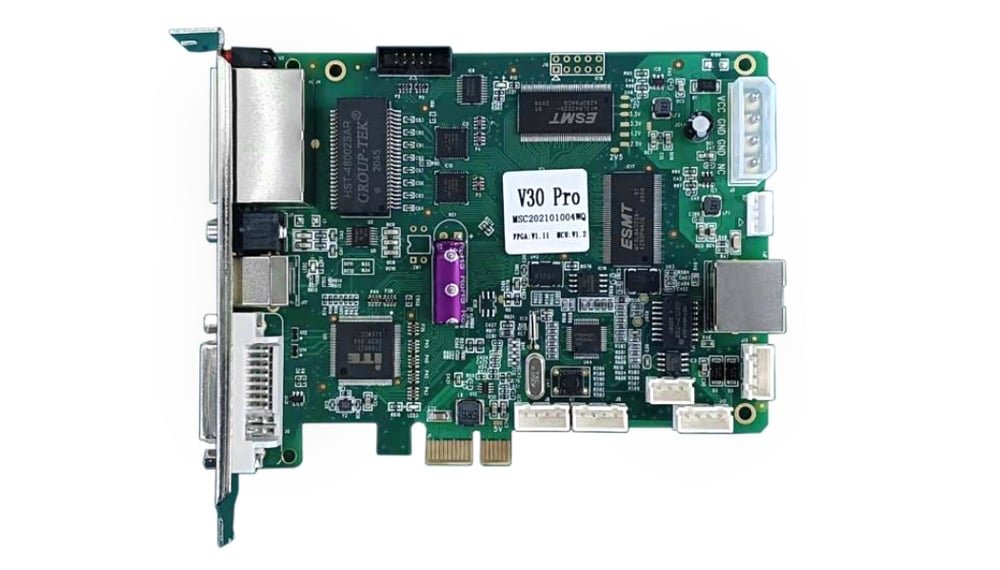

V30PRO is the Sending Card that produced by Mooncell, it supports DVI Input and is with 2 Network Output Ports. The maximum loading capacity could reach up to 1.3 million pixels,with powerful processing ability,super reliability and high cost performance.
Features:
1x DVI video signal input, synchronous transmission via the network cable.
1x AUDIO input,synchronous transmission via the network cable.
It has the serial port and to use it together with the light sensor to get the brightness of the led screen automatically adjusted.
2x gigabytes Ethernet output ports,it supports the arbitrary splicing.
1x USB port communication, multiple sending cards could be cascading connected to one computer.
It has 1x 100M megabyte Ethernet Port.
It supports Ethernet Port Loop Dual Backup, Dual Master Controller Backup.
It supports to have multiple preset resolutions:1024×768 、 1280×1024 、 1366×768 、1600×1200 、 1920×1080 、 2048×1152 、 2560×960 and the user defined resolution is supported.
It is compatible with 30HZ,50HZ,60HZ,120HZ and other Frame Rate Input.
It supports the upper computer software to detect the operating parameters and status of the sending card.
It supports to read the configurations back from where it was stored ( configuration read back )
It supports to detect the error rates of the gigabyte network.
It features PCI-E interface,which makes it more versatility.
Download Specification:
Mooncell V30 Pro Led Display Sending Card Specification
