Description
LINSN Technology RV908H32 Receiver LED Screen Control Card Featues of LINSN Technology RV908H32 Receiver LED Screen Control Card:
1. Onboard 12 HUB75 (supports 32 scans) 16P interface;
2. The single card supports 512X768 pixels;
3. Single card supports 24 groups of RGB data;
4. Support 138 decoding, 595 serial decoding and other decoding methods;
5. Supports single-card color space conversion, chroma-by-point correction, and brightness-by-point correction;
6. Support high refresh and high grayscale display at the same time;
7. Supports universal driver chips, most PWM driver chips;
8. Support configuration file read back;
9. Support network cable error test;
10. Conform to EU RoHs standards;
11. Conform to EU CE-EMC Class B standard

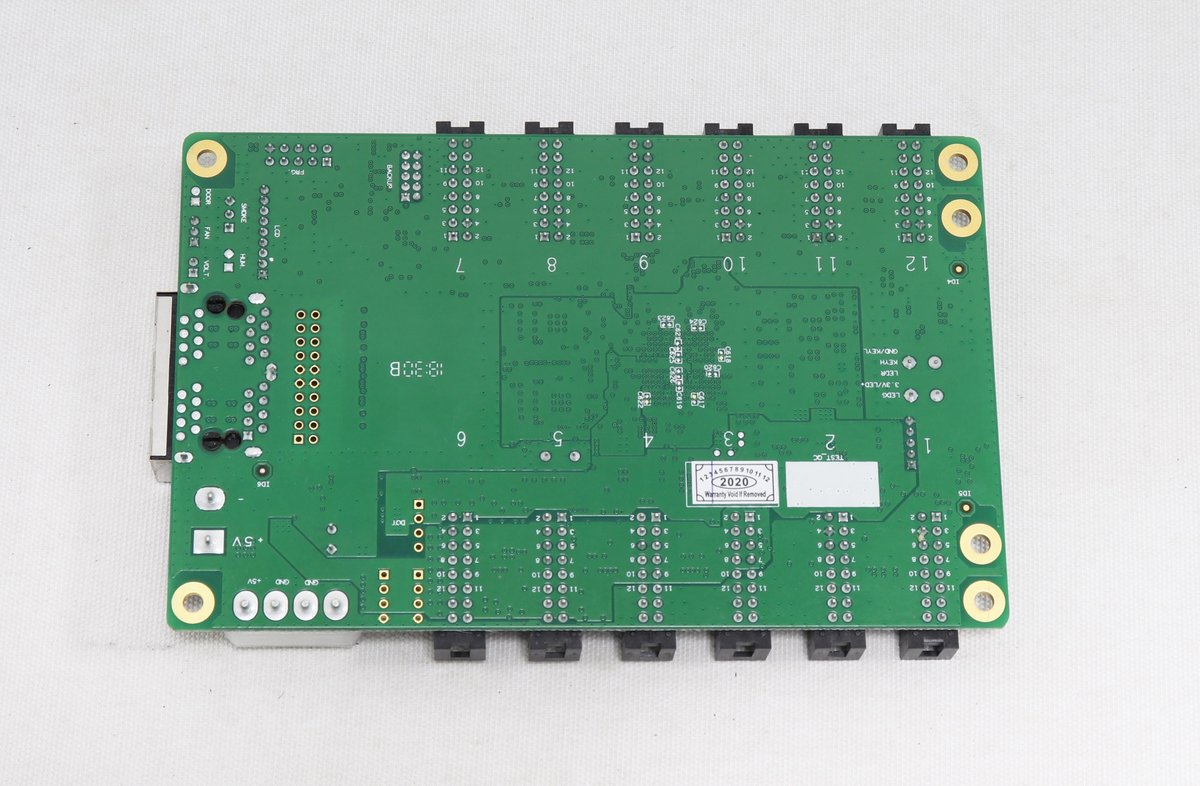

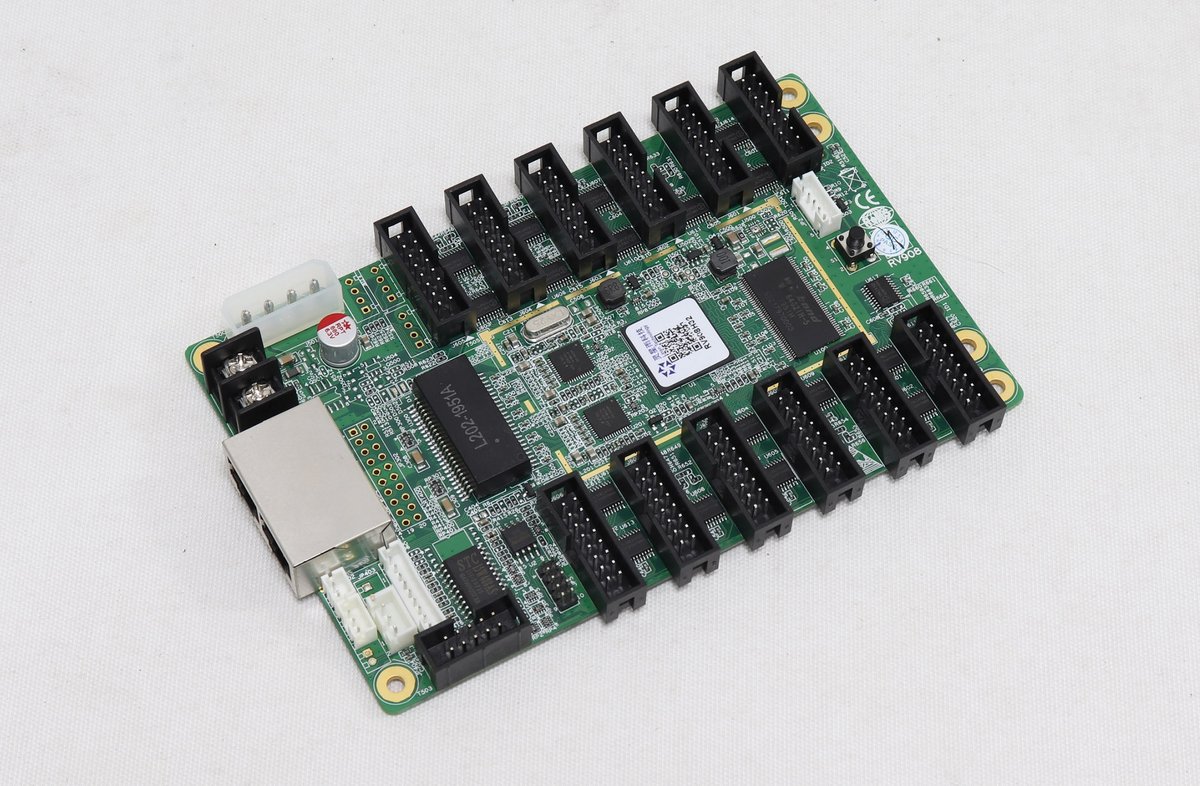

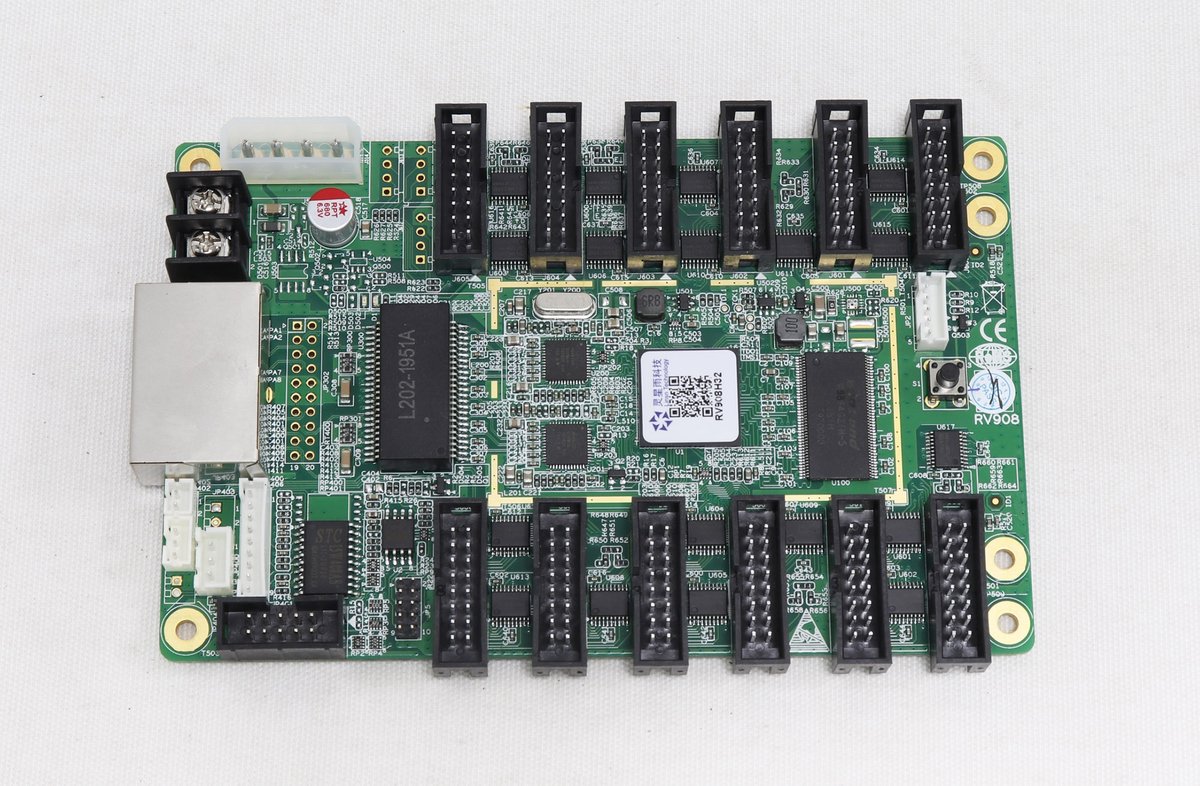

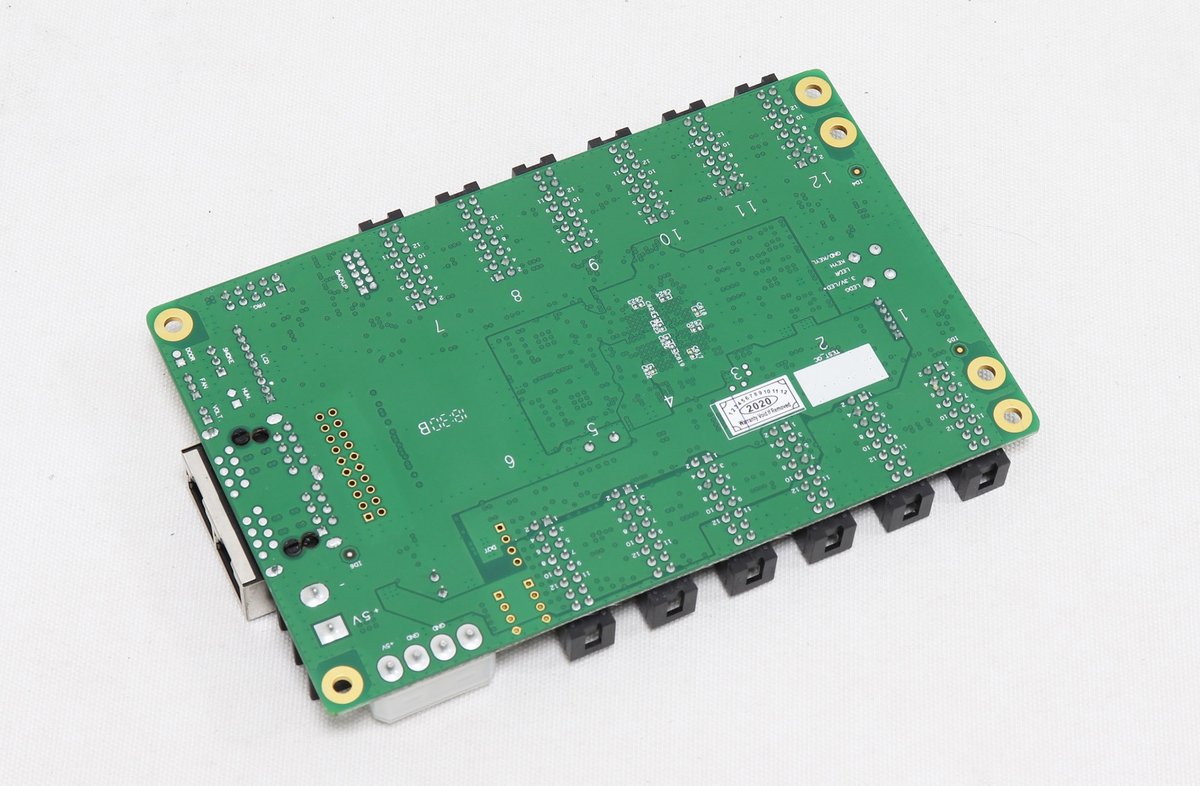

More Pictures of LINSN RV908H32 Receiver LED Screen Control Card:
Download Specification
LINSN Technology RV908H32 Receiver LED Screen Control Card Specification
