Description

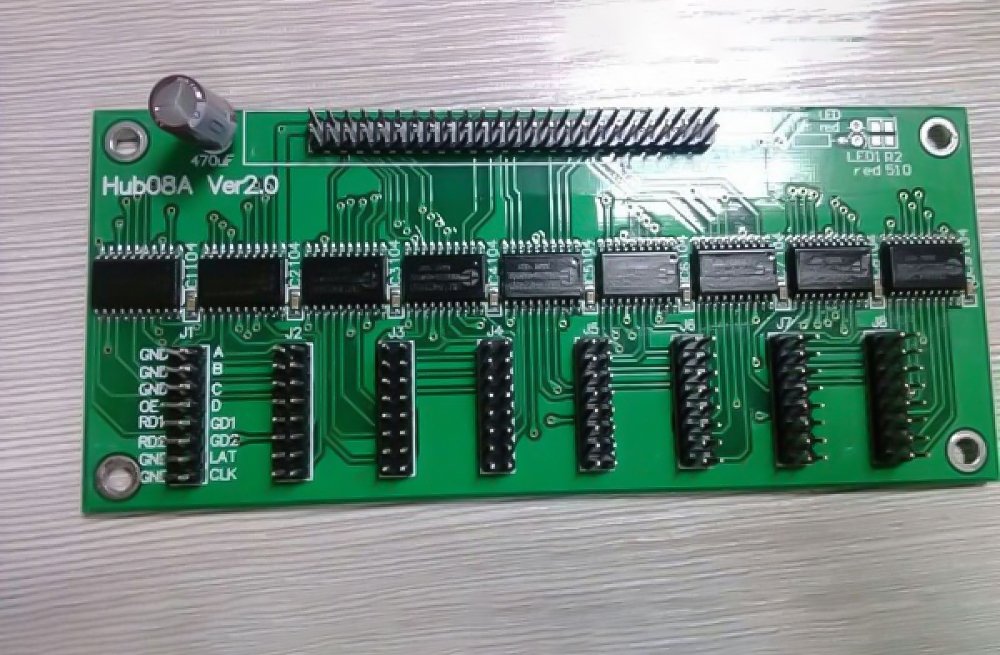

LED Screen HUB08A Card Interface Definition:
| 1 | GND | 2 | A |
| 3 | GND | 4 | B |
| 5 | GND | 6 | C |
| 7 | OE | 8 | D |
| 9 | RD1 | 10 | GD1 |
| 11 | RD2 | 12 | GD2 |
| 13 | GND | 14 | LAT |
| 15 | GND | 16 | CLK |

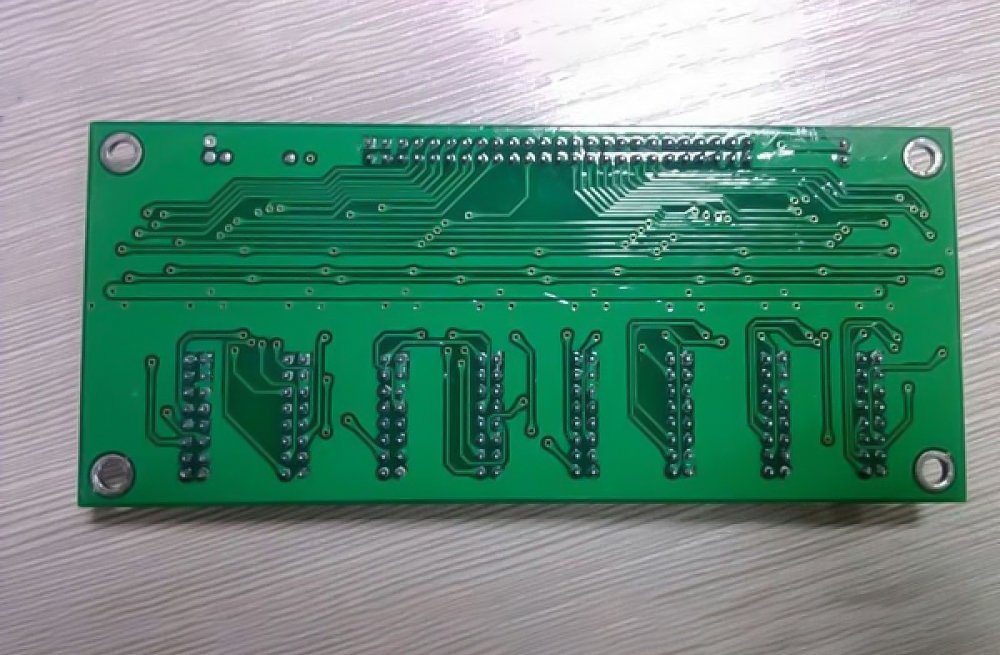

LED Screen HUB08A Card
$8.00
LED Screen HUB08A Card
Additional information
| Weight | 0.3 kg |
|---|
$8.00
LED Screen HUB08A Card
LED Screen HUB08A Card Interface Definition:
| 1 | GND | 2 | A |
| 3 | GND | 4 | B |
| 5 | GND | 6 | C |
| 7 | OE | 8 | D |
| 9 | RD1 | 10 | GD1 |
| 11 | RD2 | 12 | GD2 |
| 13 | GND | 14 | LAT |
| 15 | GND | 16 | CLK |
| Weight | 0.3 kg |
|---|
