Description
Overview

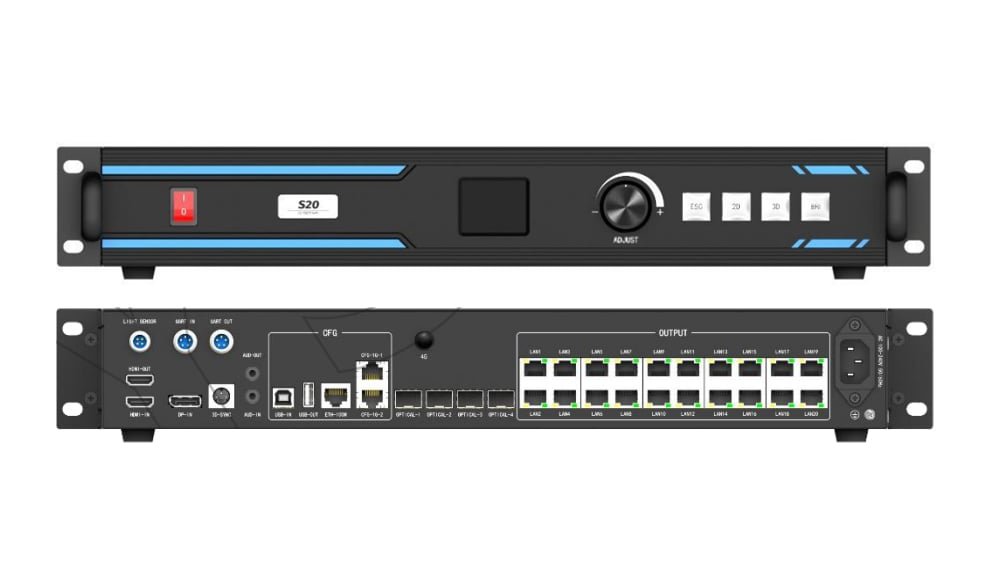

The S20 is a high-performance transmitter with powerful throughput and rich features. A single device supports one DP1.2 and one HDMI2.0 input, supporting up to 4096×2160@60Hz. It also supports 20 Ethernet ports and two active and two standby optical outputs, supporting a maximum pixel load of 8.85 million.
The device uses a square USB/Gigabit Ethernet port for communication with a PC. The Gigabit Ethernet port allows for cascade control of devices, supporting passive calibration, 3D display, arbitrary cross-connection, and redundant Ethernet port backup. It is primarily used in rental and fixed installation applications, such as concerts, stadium events, conference rooms, and exhibitions.
Features
Supports one HDMI 2.0 and one DP1.2 input.
Supports HDMI loop-through cascading.
Supports 20 Gigabit Ethernet ports and four optical outputs.
Supports EDID management.
Supports passive brightness and color correction.
Supports fast data transmission.
Supports arbitrary cross-connection.
Supports multiple control methods.
Supports cascade control.
Supports 3D display.
Supports brightness and color temperature adjustment.
Download Specification:
Kystar S20 LED Display Control System Sending Box Specification(Chinese)
