Description
Overview

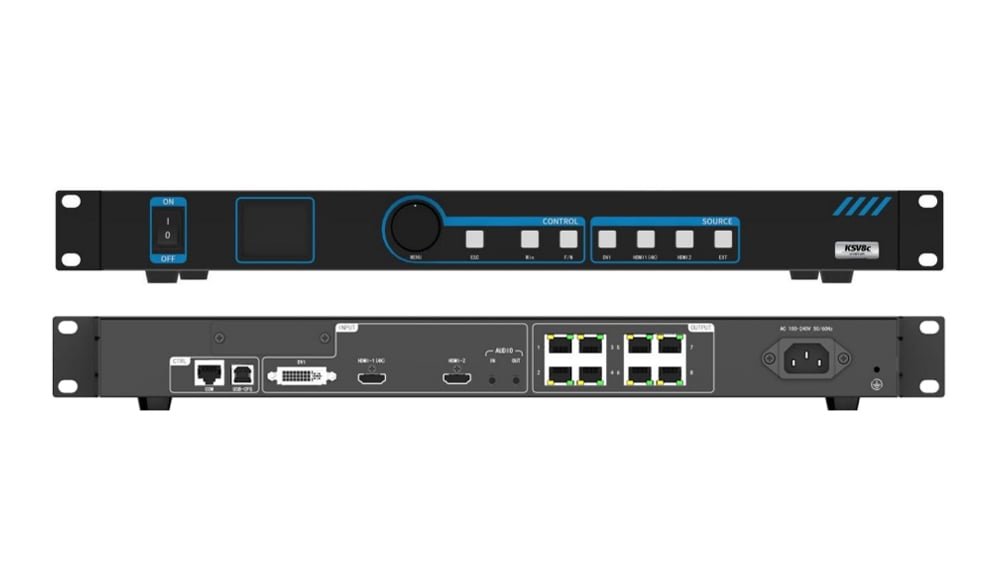

Kystar KSV8c two-in-one controller supports 3-way digital signal input, has 8 network port outputs, and can load a maximum of 5.2 million pixels. It adopts a pure hardware FPGA architecture and can run continuously 365×24 hours a day, meeting the configuration requirements of large-screen control systems for small-pitch applications.
Features
The standalone unit has 8 network ports, each capable of 65 square pixels, and the entire unit can support a maximum of 520 square pixels, with a maximum width of 8180 pixels and a height of 4090 pixels.
Supports multiple digital signal interfaces, including one HDMI 1.3, one DVI-D, and one HDMI 1.4 input source.
Supports three-screen display with arbitrary layout.
Supports arbitrary cable routing, and the network port load is not restricted by rectangular shape, improving network port utilization.
Supports output of test images such as solid color, gradient, and scan line, facilitating on-site debugging and testing.
EDID configuration management: Supports reading, modifying, and customizing EDID (Extended Display Identification Data).
Supports one-click black screen/freeze function.
Border removal/cropping: Resolves the problem of black borders generated by front-end signals and allows arbitrary cropping of any signal source (while maintaining full screen).
Supports key lock to prevent accidental operation. The brightness and contrast of the overall output image can be adjusted quickly and in real time.
Download Specification:
Kystar KSV8C 2-in-1 LED Display Video Controller Specification(Chinese)
