Description
Overview

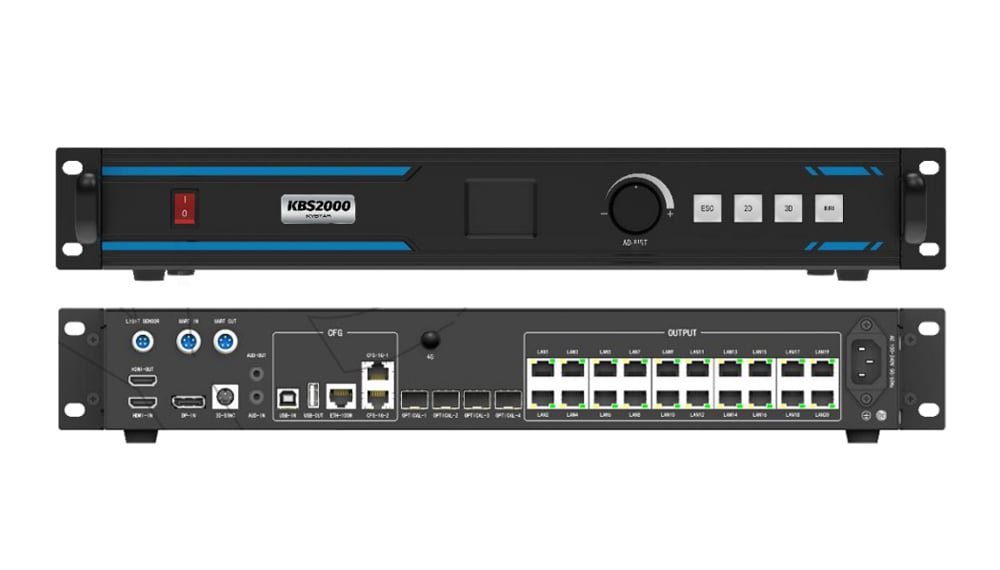

The KBS2000 is a high-performance transmitter with powerful throughput and rich features. A single device supports one DP1.2 and one HDMI2.0 input, with a maximum resolution of 4096×2160@60Hz. It also supports 20 Ethernet ports and two primary and two backup optical outputs, supporting a maximum pixel load of 8.85 million.
The device uses a square USB/Gigabit Ethernet port for communication with a PC, and a Gigabit Ethernet port for cascade control. It supports passive correction, spherical shape change, 3D display, arbitrary cross-connection, and redundant Ethernet ports. It is primarily used in rental and fixed-installation applications, such as concerts, stadium events, conference rooms, and exhibitions.
Features
Supports 1 HDMI 2.0 and 1 DP 1.2 input
Supports HDMI loop-through cascading
Supports 20-channel Gigabit Ethernet and 4 optical outputs
Supports EDID management
Supports passive brightness and color correction
Fast delivery of correction data
Spherical shape change
Supports arbitrary cross-connection
Supports multiple control methods
Supports cascade control
Supports 3D display
Supports brightness and color temperature adjustment
Download Specification:
Kystar KBS2000 LED Display Control System Sending Box Specification(Chinese)
