Description
KYStar DVI Splitter for LED Large Video Screen:
The KYStar DVI Splitter for LED Large Video Screen is a signal splitter for multi-port digital video output with one DVI video input and multiple DVI video outputs. In a multimedia application system, multiple digital display terminals are often required to display the same DVI source. If a DVI source is configured for each display terminal, this increases the system cost and greatly reduces the reliability of the system. DVI The distributor is the best solution.
KYStar DVI Splitter for LED Large Video Screen Features:
DVI signals can be copied and output
Support multiple signal resolutions
With signal amplification
Small footprint for easy placement
KYStar DVI Splitter for LED Large Video Screen Parameter:
| Type | Qty | Spec. |
| DVI-D | 1 | Standard DVI-D socket，24+5 Pin；DVI1.1；TMSD Level，Single pixel input， 165MHz bandwidth； 1920×1200 @60Hz Support for custom resolutions in scope：1920×1200 @60Hz1920×1080 @60Hz 1680×1050 @60Hz1600×1200 @60Hz 1440×900 @60Hz1400×1050 @60Hz 1366×768 @60Hz1360×768 @60Hz 1280×1024 @60Hz1280×800 @60Hz 1024×768 @60Hz |
| Machine Spec. | |
| Power input | 5V，1A |
| Operating temperature |
0-40℃ |
| Dimension | 154×59×26mm（L×W×H） |
| Power consumption |
5W |

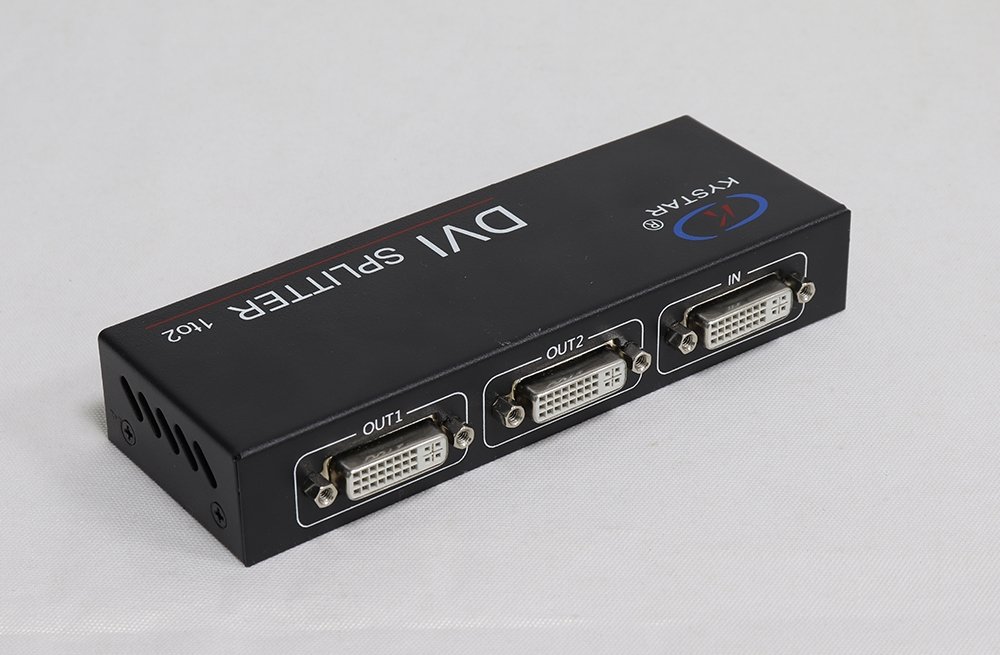

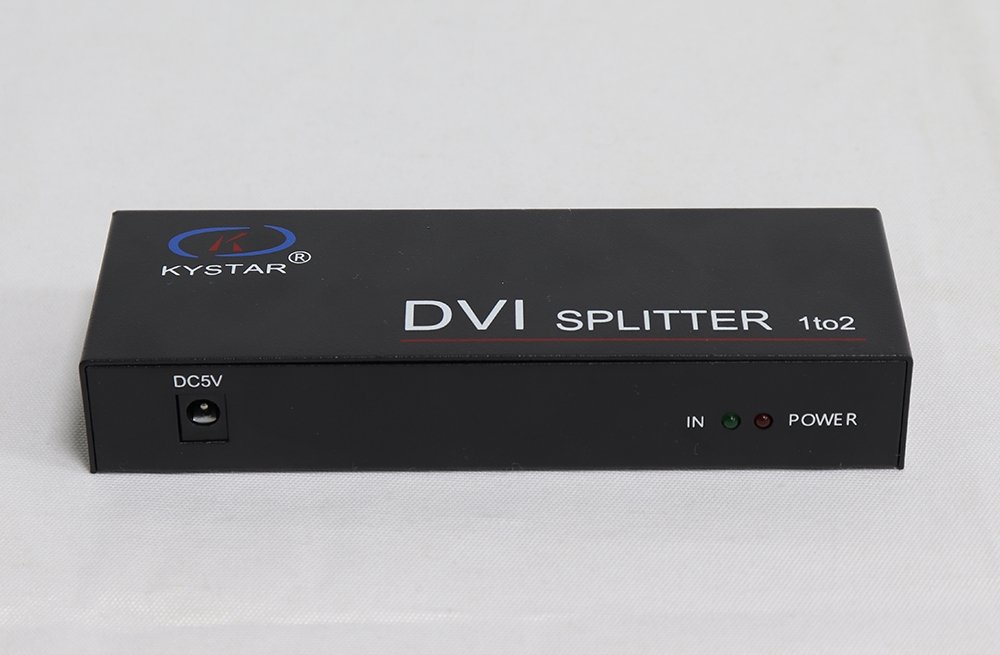

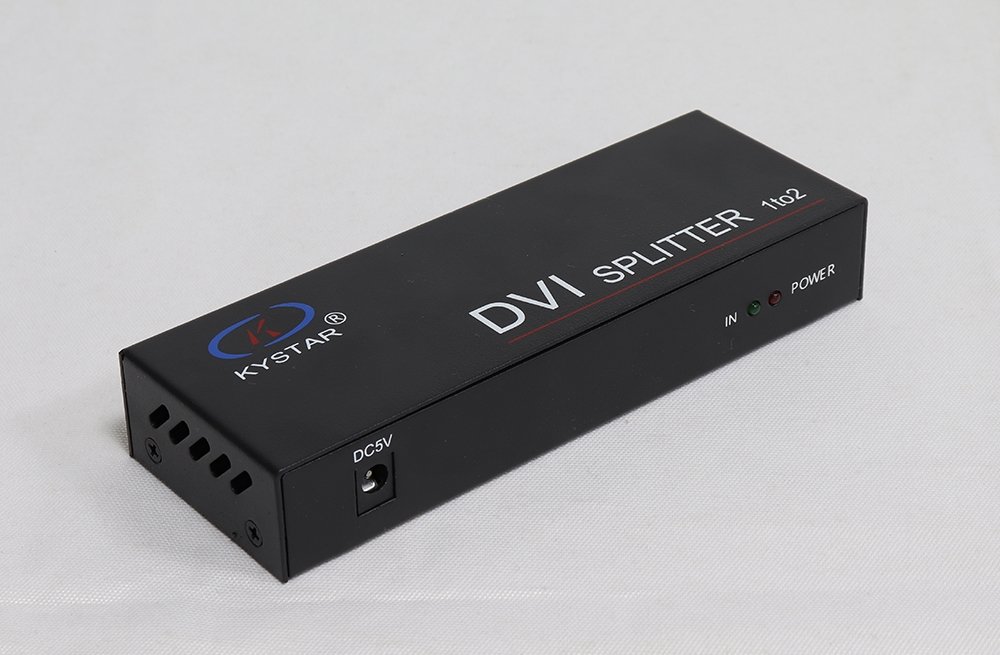

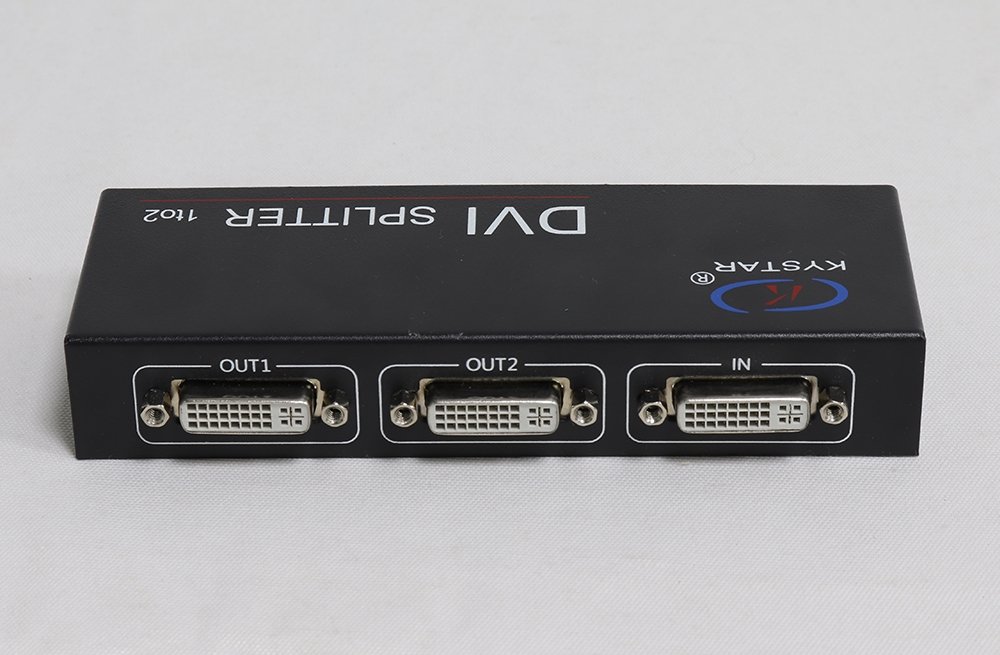

More Pictures of KYStar DVI Splitter for LED Large Video Screen:
Download Specification
KYStar DVI Splitter for LED Large Video Screen Specification (Chinese)
