Description

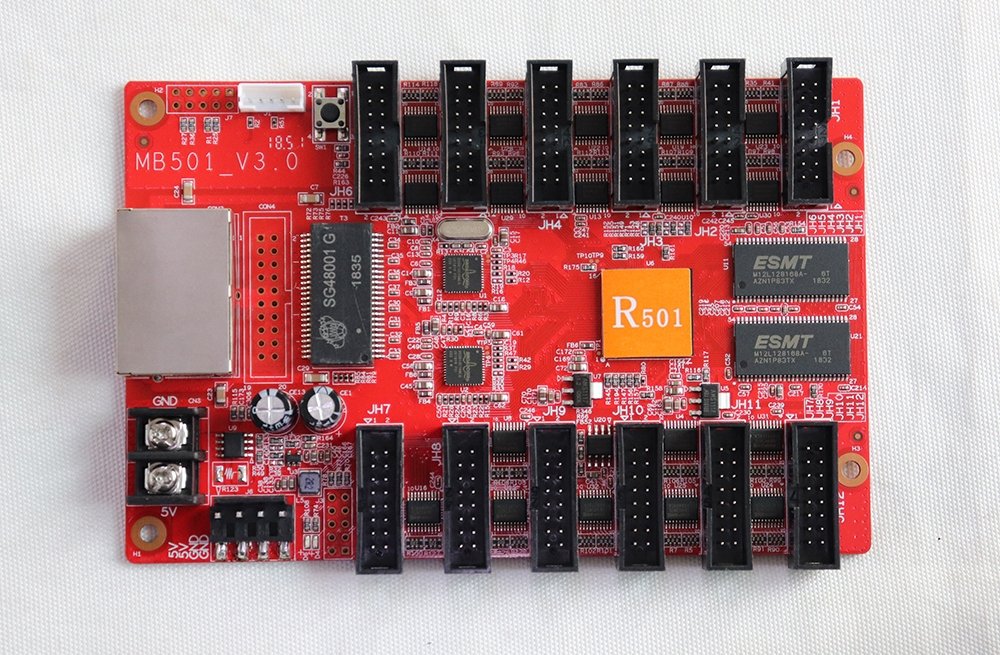

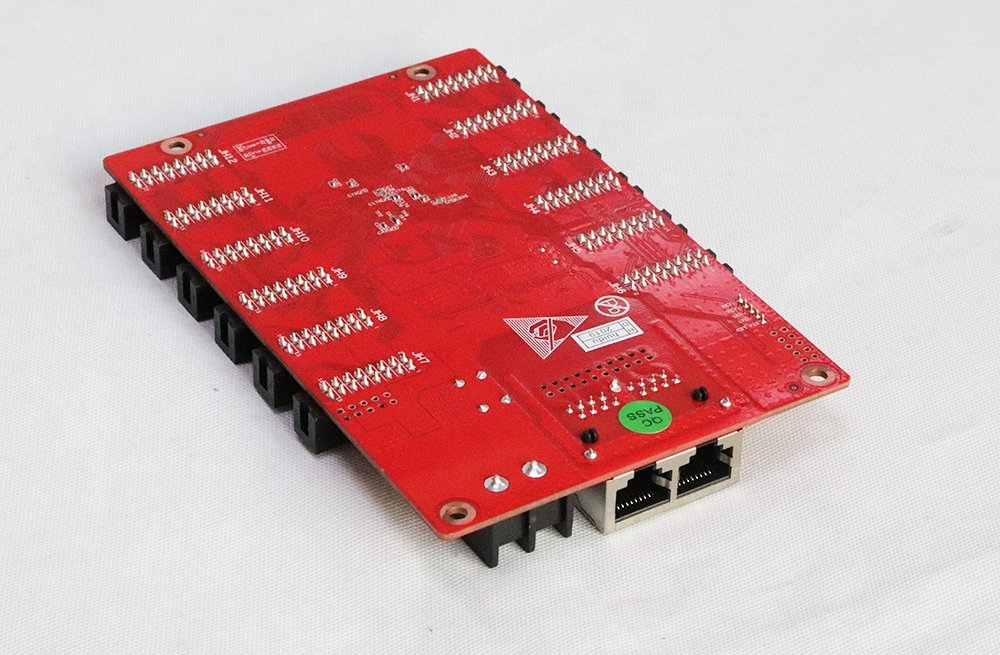

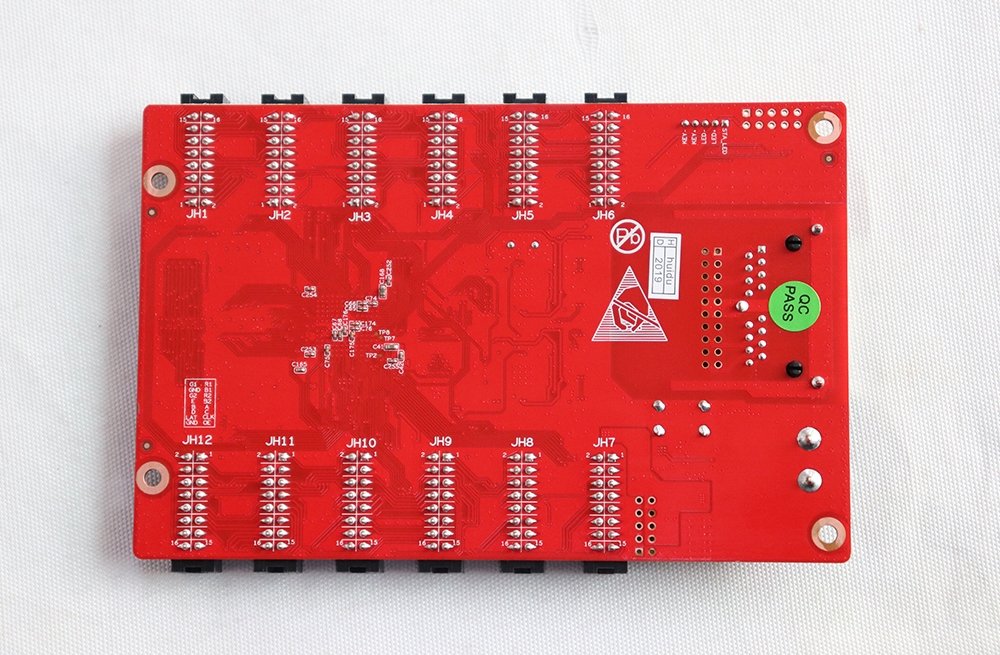

Huidu LED Display Receiving card HD-R501 Parameter:
| Type | Indoor & outdoor full-color & single/dual color module | |
| Scan mode | Static, 1-32 scan randomly | |
| 1pcs of receiving card support areas | 256W*192H(suggest).
largest ：1024W×192H (single-dual color) |
|
| Receiving cards
connected ways |
Receiving card set sequence randomly, it could recognize by automatically or by hand | |
| Gray scale | 0-65536 | |
| Smart set | Smart set by few simple steps, through display routine setting ,it could suit almost different PCB routine | |
| Play contents | Play video、animation、picture、text、excel、PPT、time、counter etc | |
| Test functions | It have self test button, could test modes of red、green、blue、white、gray、oblique line、grid、spots etc | |
| Time on/time off | Time on /off display by defined and time on/off display by computer | |
| Port | 2pin 5V Power x1,1000M Ethernet portX2，75B HUB portx12 | |
| Voltage | 3V-6V | |
| Working temperature |
|
Download Specification:
–HUIDU-HD-R501-Specification.pdf
