Description
Overview

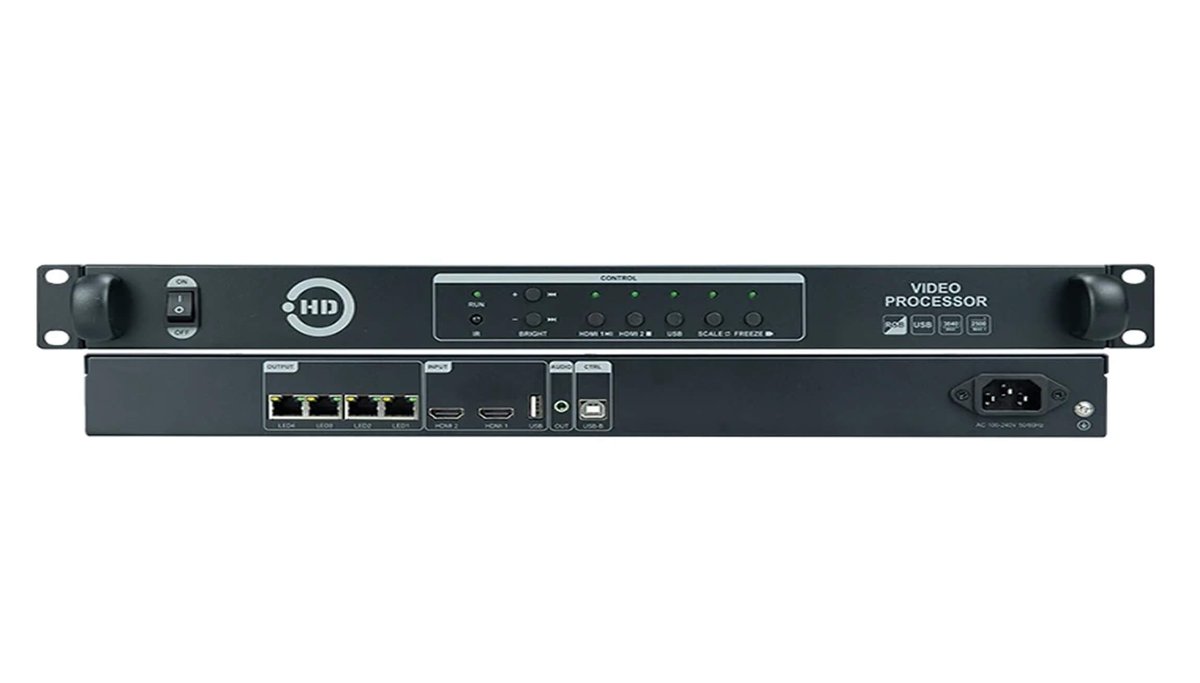

HD-VP410S is a three-in-one video processor that integrates traditional video processor, 4-way Gigabit network port output, and U disk playback functions. It not only simplifies the construction of the on-site environment, but also improves the reliability of the product. It supports 2 channels of synchronous signal input and 1 channel of USB input, and can be used in hotels, shopping malls, conference rooms, exhibitions, studios and other occasions that require synchronous playback; in addition, the device also supports point-to-point input/output to allow the LED display to display A clearer picture.
Connection Diagram
Features
Input
Supports 2 channels of HDMI, which can be switched at will;
1 channel USB input supports direct playback of videos and pictures in various mainstream formats in the root directory of the USB flash drive, and supports up to 1920×1080@30Hz high-definition video playback;
Supports 2 channel HDMI audio input (choose one of two playback).
Output
Comes standard with 4-way Gigabit network ports, which can be directly cascaded to the receiving card;
The maximum loading capacity is 2.6 million pixels, with a maximum width support of 3840 pixels or a maximum height support of 2500 pixels;
1 channel TRS 3.5mm standard two-channel audio output.
Features
Support limited transfer to complete;
Support one-touch brightness adjustment;
Supports locking buttons to prevent misuse of the display from causing abnormalities;
Video signals can be switched, cropped, and zoomed arbitrarily;
Support infrared remote control (optional).
Download Specification:
Huidu HD-VP410S three-in-one video processor Specification
