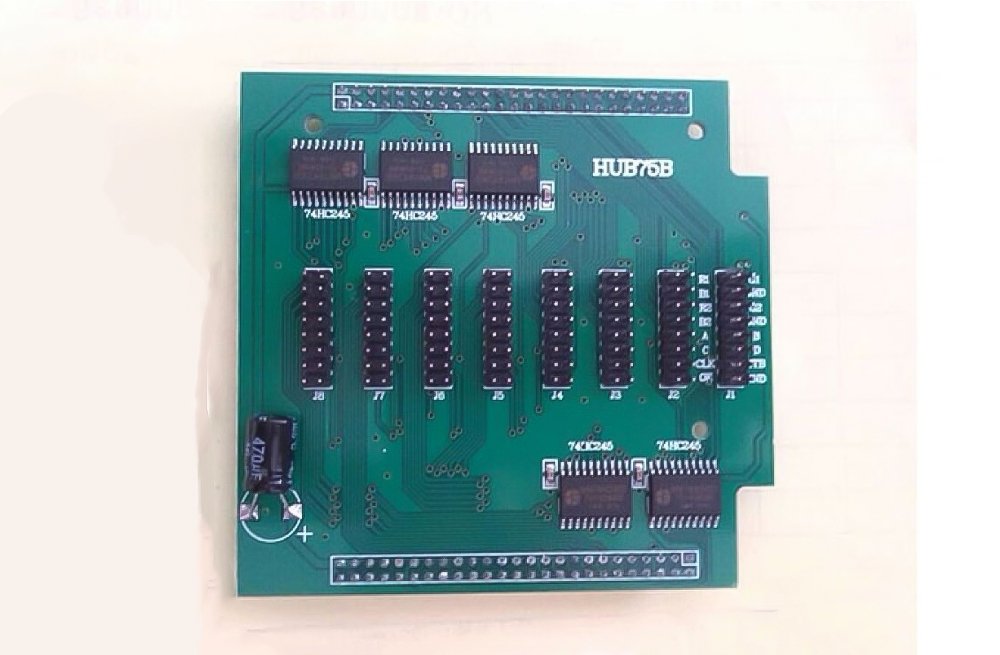

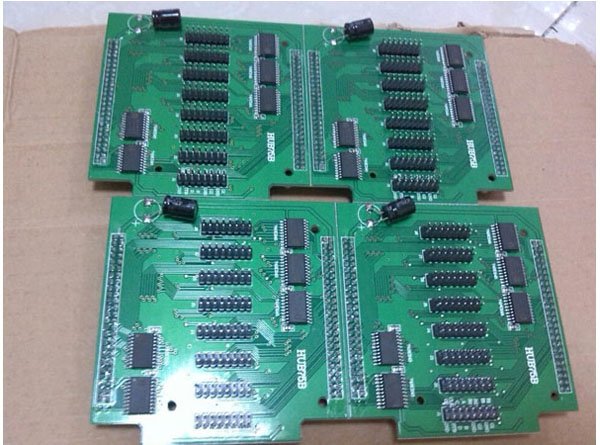

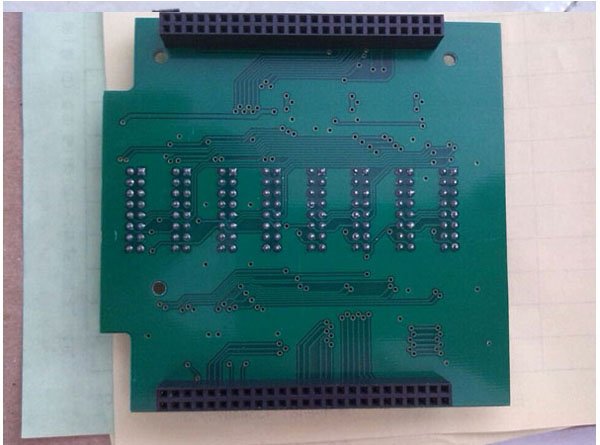

HUB75B LED Wall HUB Card

$5.00

HUB75B is not available any more. You can buy HUB75E from this link:  HUB75E card.

HUB75B HUB Card works with LED display modules of 1/16 duty, 1/8 duty, 1/4 duty, 1/2 duty and 1/1 duty.  Please check the following HUB75B pin definition before you order our HUB75B card.

Available on backorder

SKU: HUB-75B Category:

Description

Function of HUB75B LED Wall HUB Card:

Transfer the signal from LED receiving card to LED modules, such as the traditional indoor LED modules, P10, P7.62, P6, P5, P4, P3 and P2.5.



Interface Definition of HUB75B LED Wall HUB Card:

1

R1

2

G1

3

B1

4

GND

5

R2

6

G2

7

B2

8

GND

9

A

10

B

11

C

12

D

13

CLK

14

STB

15

OE

16

GND



Additional information

Weight 0.3 kg
