Description

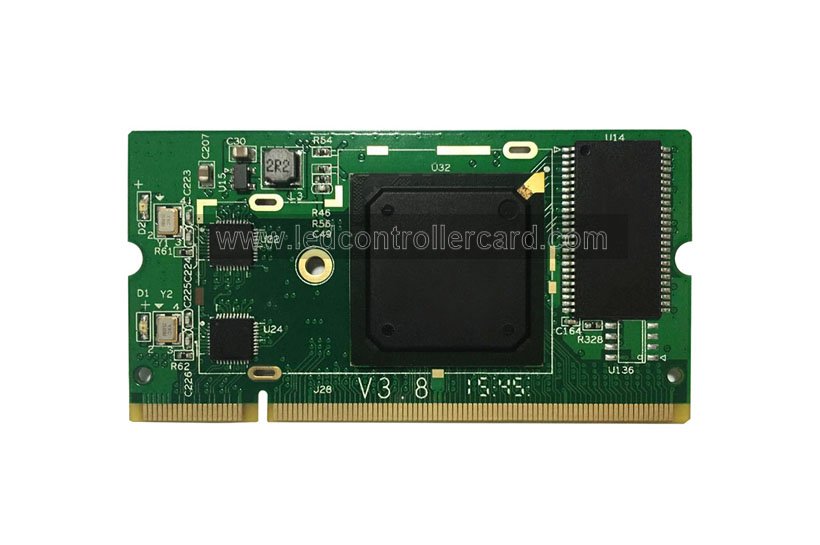

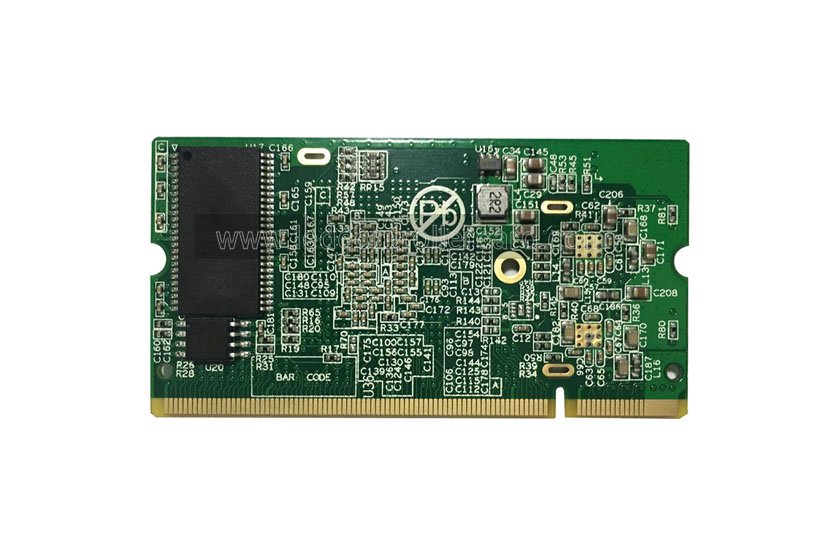

Colorlight I5 High Definition LED Display Receiving Card Features
Tiny size: 68*36mm, DDR2 SODIMM interface, easy for maintenance
Support 32 groups of RGB signal output
Loading capacity: 256*256 pixels
High-precision point-by-point calibration in the brightness and chromaticity
Support any scan mode from static to 1/32 scan
Support wide working voltage of DC 3.3V-6V
|
Control system parameters |
|
| Capacity | Full-color: 256*256 pixels |
| Cascade Control Area of the
Largest Region |
65536*65536 pixels |
| Network Port Exchange | Supported, arbitrary use |
| Gray Level | Maximum 65536 levels |
|
Display module compatibility |
|
| Chip Supports | Supports conventional
chips, PWM chips and other mainstream chips |
| Scan Mode | Two scanning methods to
support refresh rate multiplier |
| Scan Type | Supports static
sweep to 1/32 scan |
| Module Specifications
Support |
Supports 4096 pixels within
any row, any column |
| Cable Direction | Supports route from left to
right, from right to left, from top to bottom, from bottom to top |
| Data Sets | 32 RGB data sets |
| Data Folded | Supports 1~8 any discount to
improve refresh rate |
| Data Exchange | 32 sets of data any exchange |
| Module Snapshot | Supports any pumping point |
|
Compatible device and interface type |
|
|
Communication Distance |
UTP cable≤140M
CAT6 cable≤170M OPTIC FIBER transmission distance unrestricted |
| Compatible Transmission
Equipment |
Gigabit switch, fiber
transceiver, optional switches |
| Size | 68*36mm |
| Input Voltage | DC 3.3V~6V |
| Rated Current | 0.5A |
| Rated Power | 2.5W |
| Operating Temperature | -25℃~75℃ |
| Weight | 9.5g |
|
Pixel level calibration |
|
| Brightness Calibration | Supported |
| Chromaticity Calibration | Supported |
Download Specification:
–Colorlight-I5-Receiving-Card-Specification.pdf
